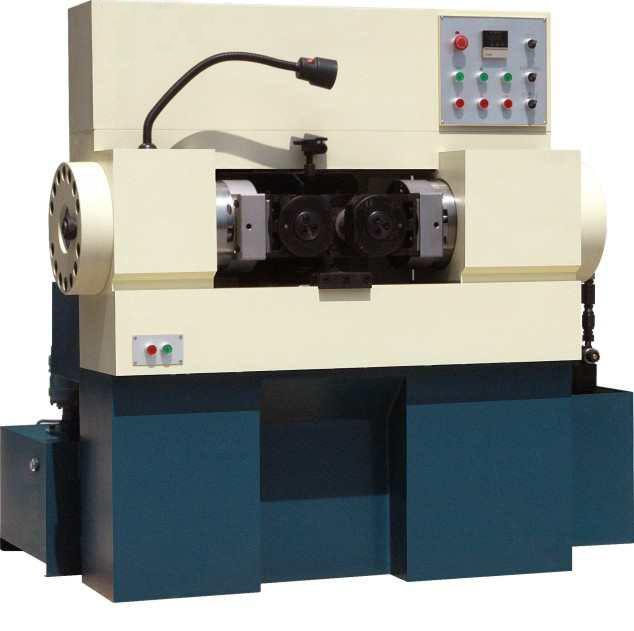

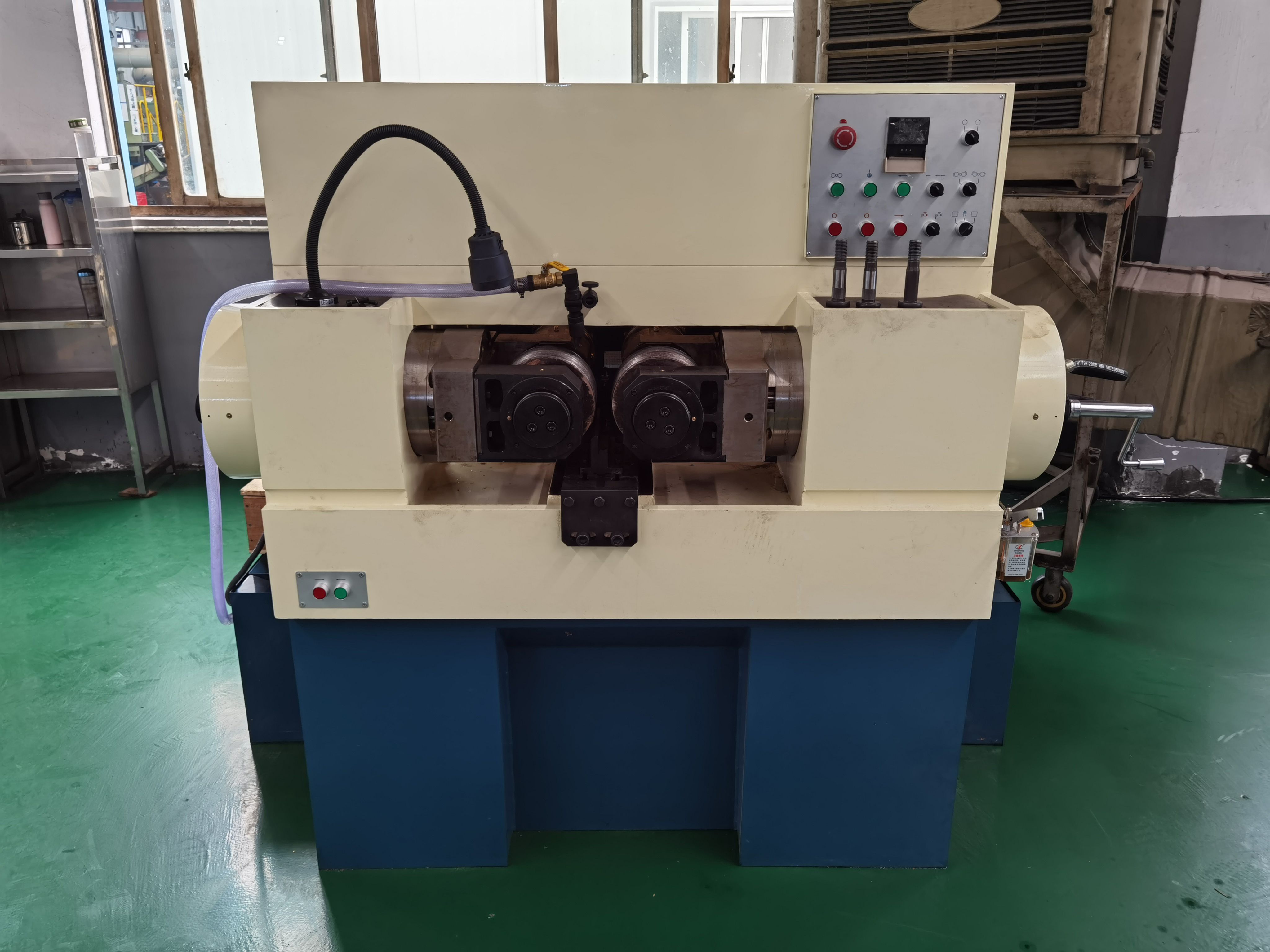

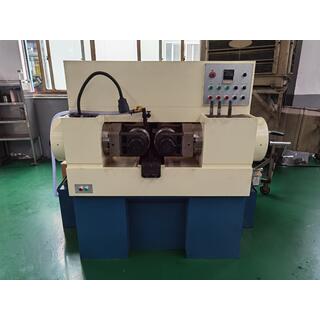

FD-25T Rebar Thread Rolling Machine Thread Rolling Machine Automatic Scaffolding Pipe Thread Rolling Machine

Feda Industry Co., Ltd
Feda Industry Co., LtdChina, Manufacturer

1. Automatic feeding with adjuatable brackets
2. Speed is adjutable for different products
3. 75mm hole diamter for SKD11/DC53 thread rolling dies
4. Max. Rolling pressure is about  250KN
5. It is easy to operate and maintain the machine
6. CE, ISO9001-2008

Specification
Working diameter
12-80mm
Thread pitch
1.0-8mm
Thread length
In feed or Thru feed
Spindle speed
16/27/37/62rpm (variable speed)
Outside diameter of rolling die
170-220mm
Inside diameter of rolling die
75mm
Thickness of rolling die
160mm
Feed stroke
0-12mm
Total machine power
14KW
Max rolling pressure
25T
Supply voltage
380V 3P 50Hz
Weight(reference)
3560(KG)
Package Dimension(L*W*H)
1630*1650*1750mm
Dimension(L*W*H)
1580*1600*1650mm

WhatsApp & Phone: +86 17704032641 ,   Wechat id:  szfeda07

Brand
FEDA
Model
FD-25T
Country of origin
China
