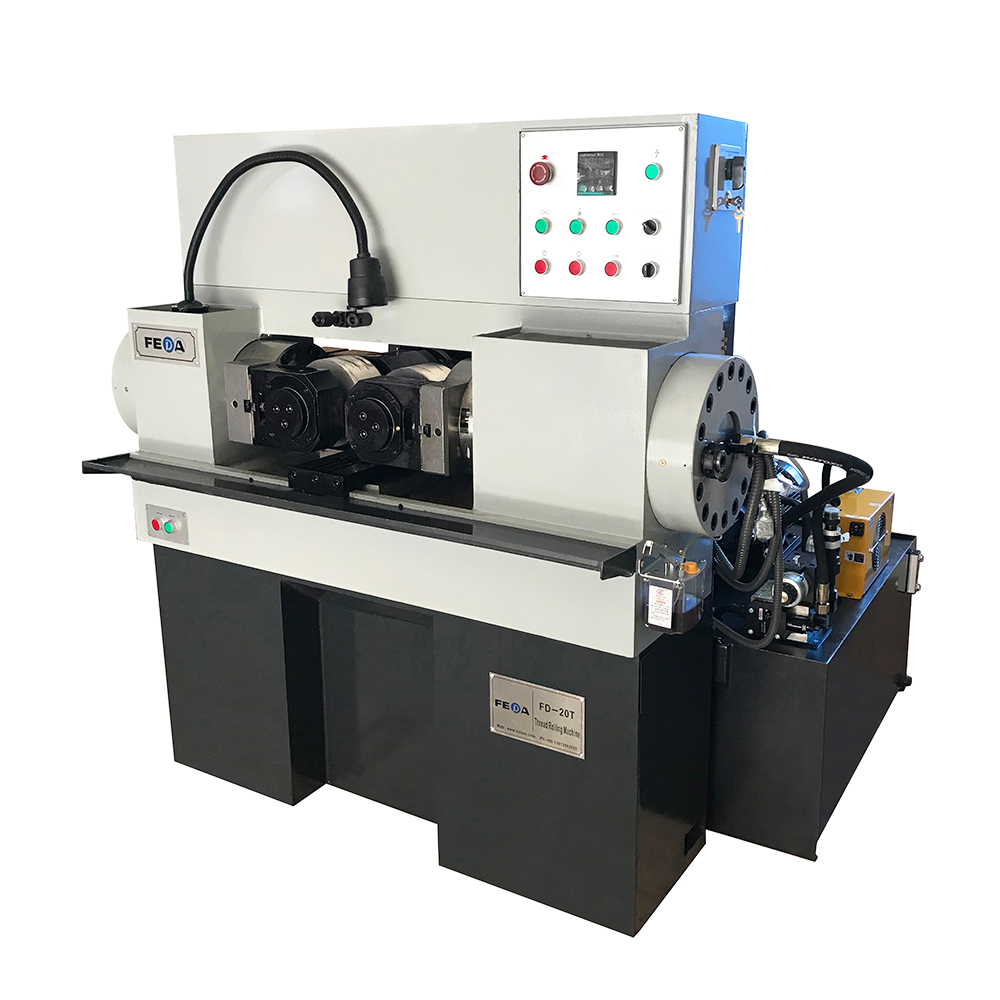

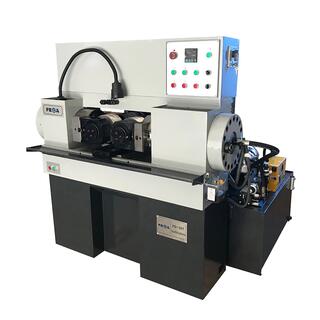

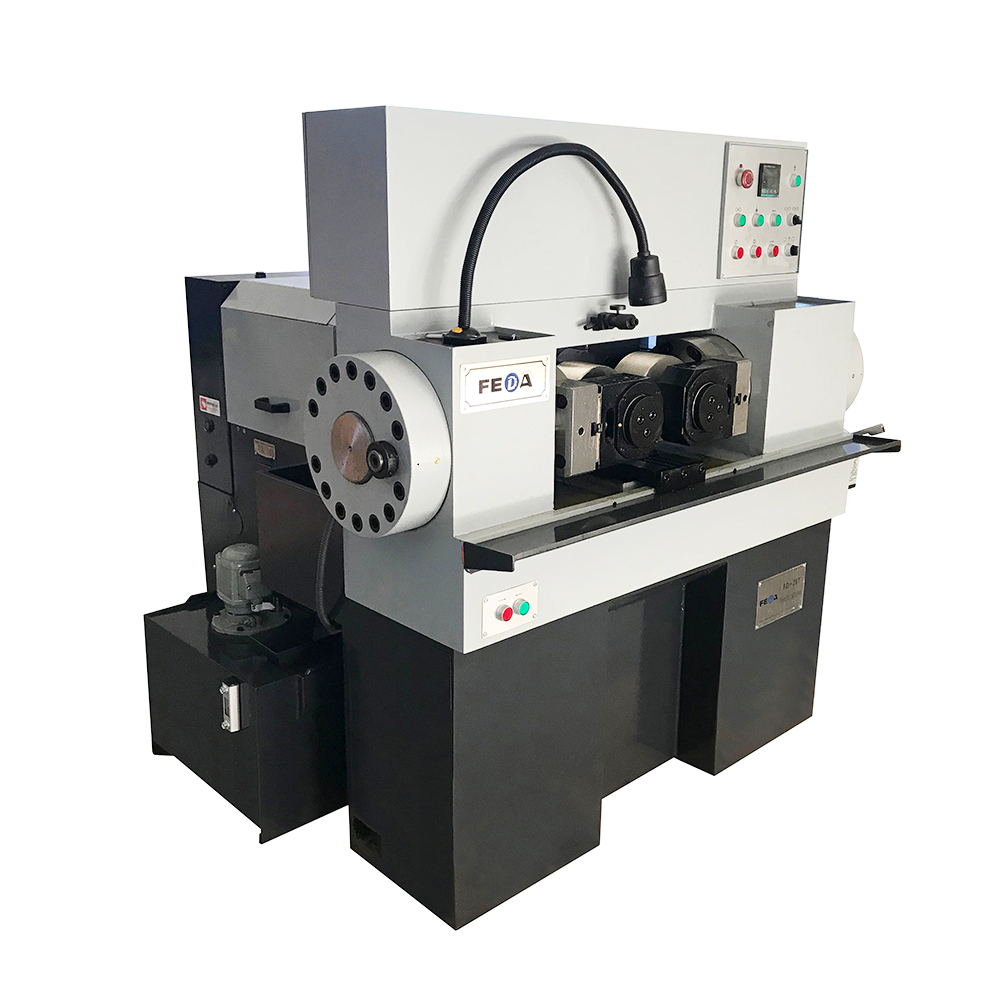

FD-20T Thread Rolling Machine Flat Die Thread Rolling Dies Machine Automatic Pipe Threading Machine

Feda Industry Co., Ltd
Feda Industry Co., LtdChina, Manufacturer

Thread Rolling Machine Flat Die Thread Rolling Dies Machine Automatic Pipe Threading Machine

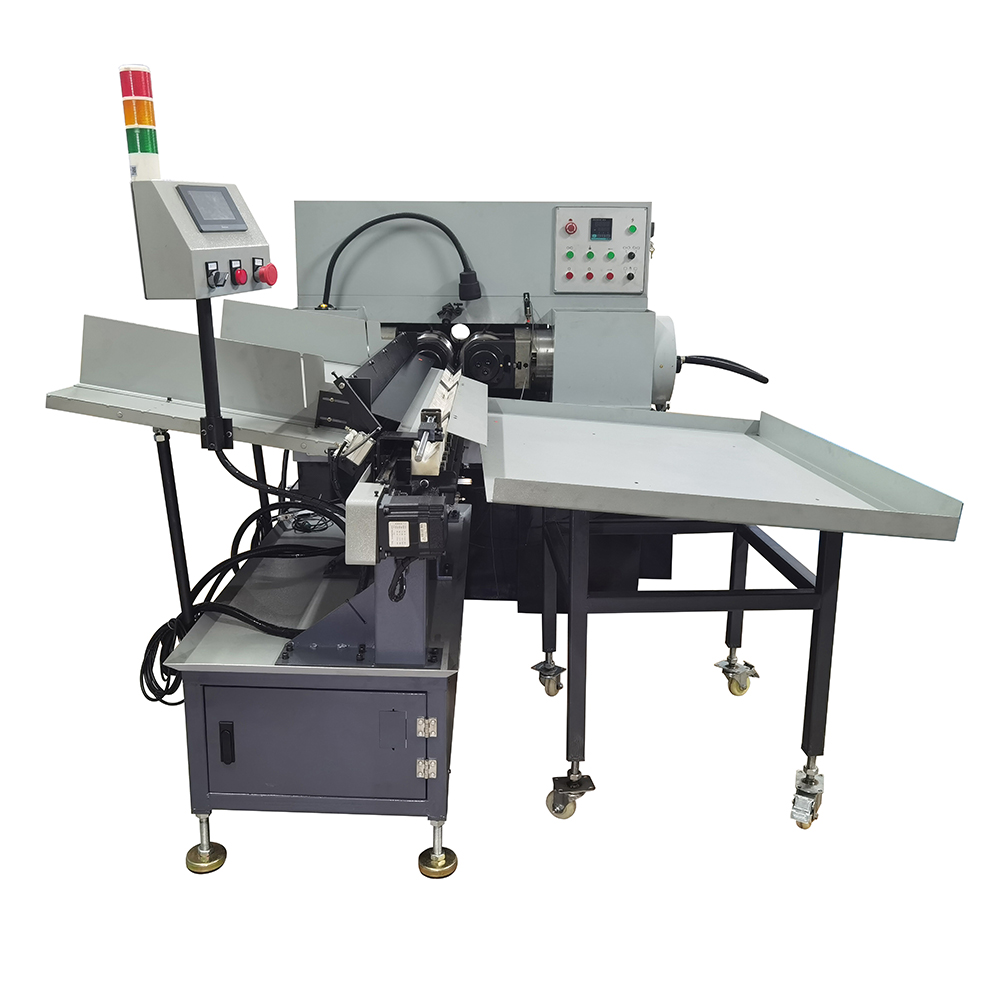

1. Automatic loading with vibration bowl is optional
2. Cam motor for feeding to make thread
3. Specially for small and short hollow parts
4. Cooling system is optional
5. High precision, stability and high durability
6. CE, ISO9001-2008

Specification
Working diameter
10-70mm
Thread pitch
1.0-6mm
Thread length
In feed or Thru feed
Spindle speed
28/35/45/56rpm (variable speed)
Outside diameter of rolling die
178mm
Inside diameter of rolling die
75mm
Thickness of rolling die
140mm
Feed stroke
0-12mm
Total machine power
11KW
Max rolling pressure
20T
Supply voltage
380V 3P 50Hz
Weight(reference)
2800(KG)
Package Dimension(L*W*H)
1600*1510*1750mm
Dimension(L*W*H)
1550*1460*1650mm


WhatsApp & Phone: +86 17704032641 ,   Wechat id:  szfeda07

Brand
FEDA
Model
FD-12T
Country of origin
China
