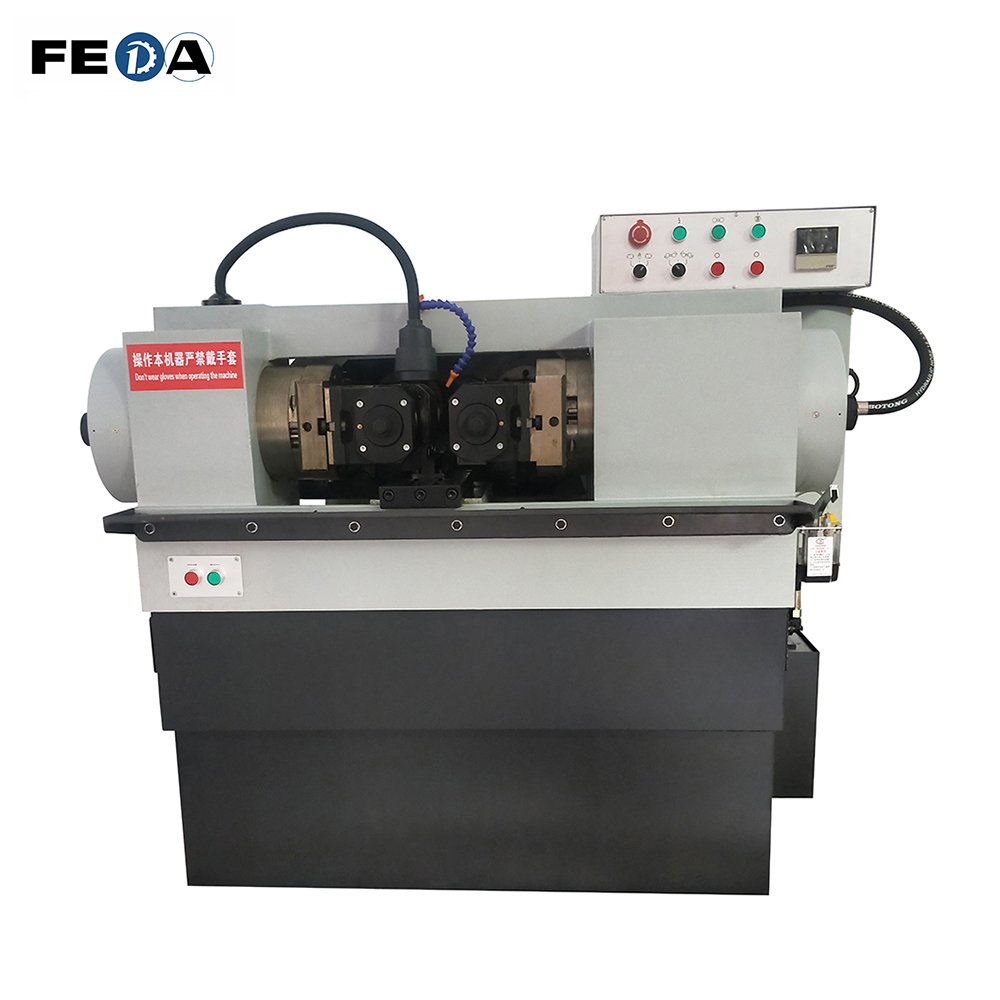

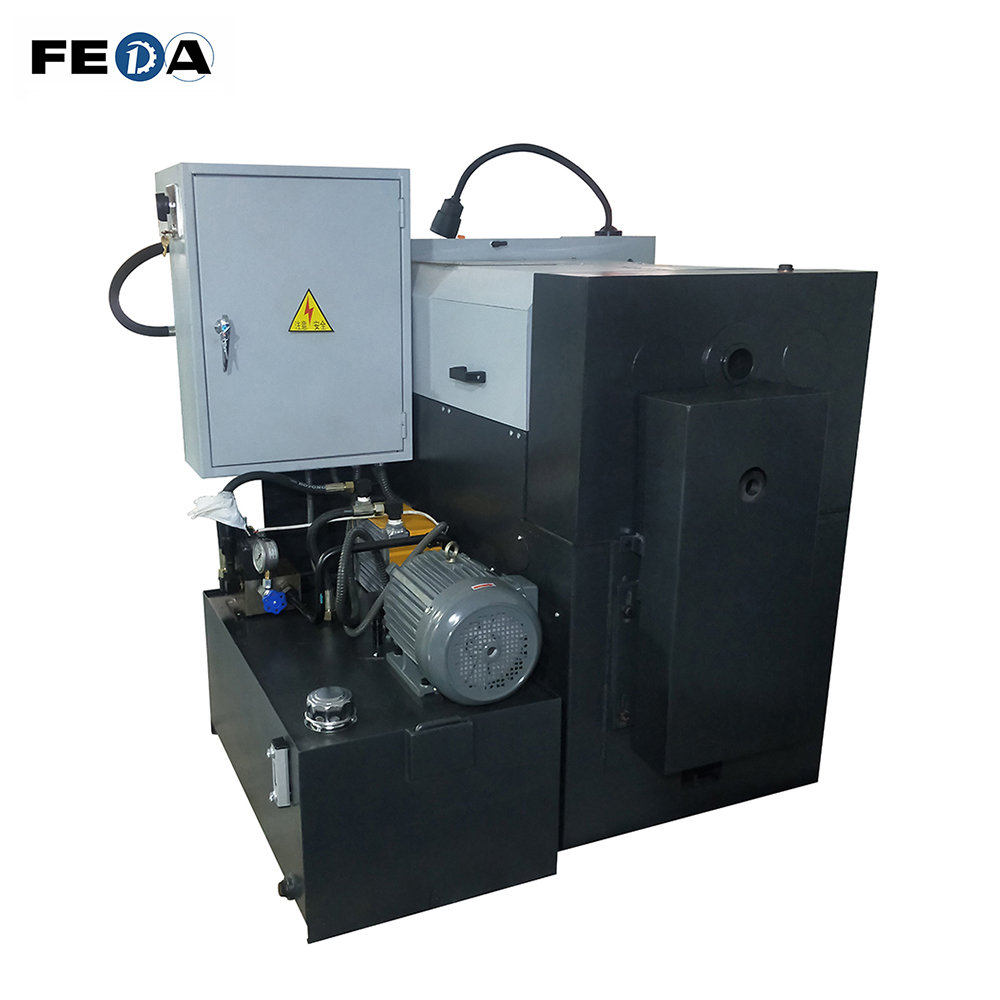

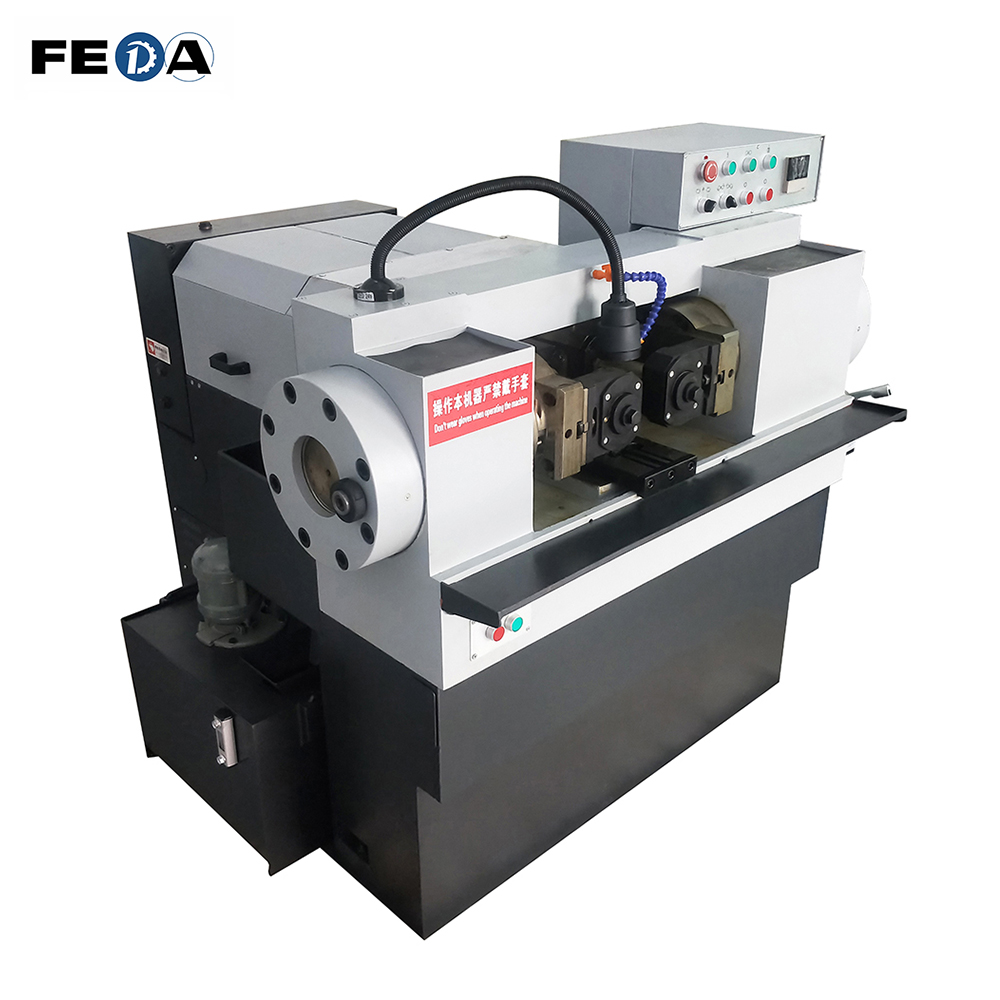

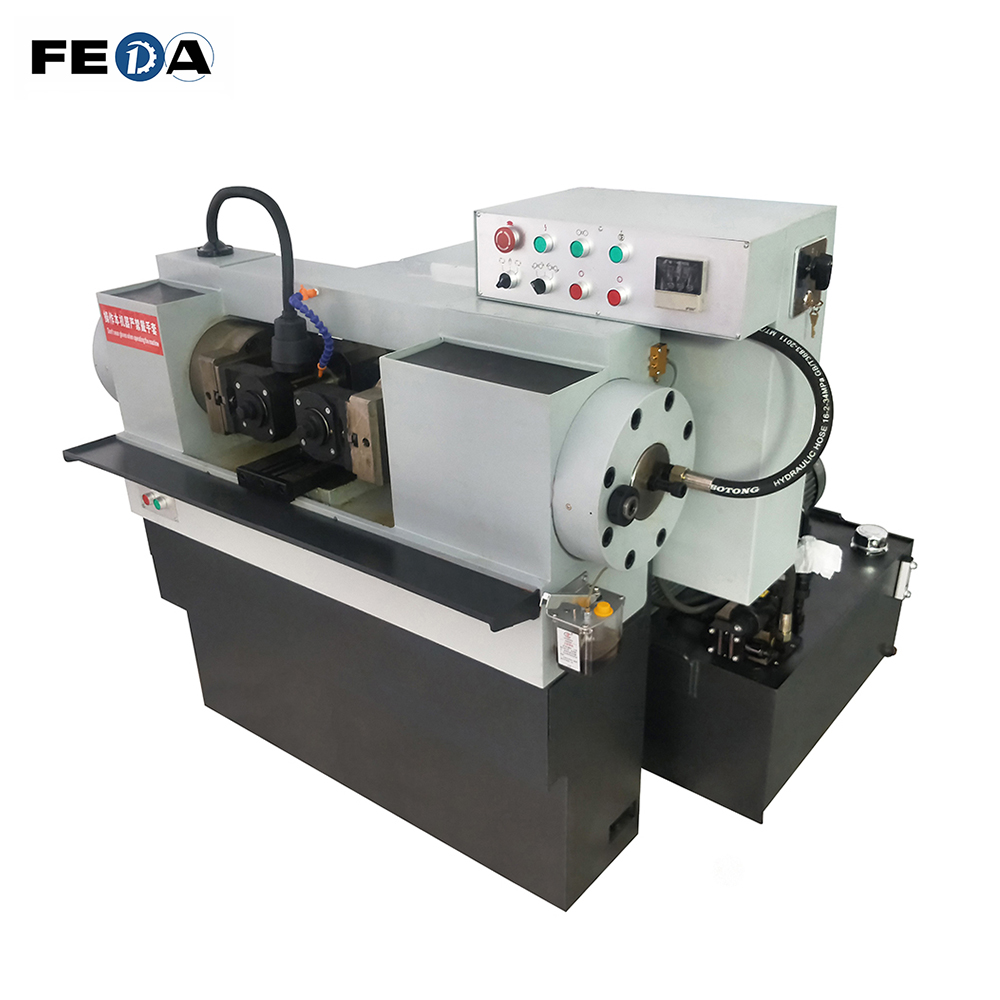

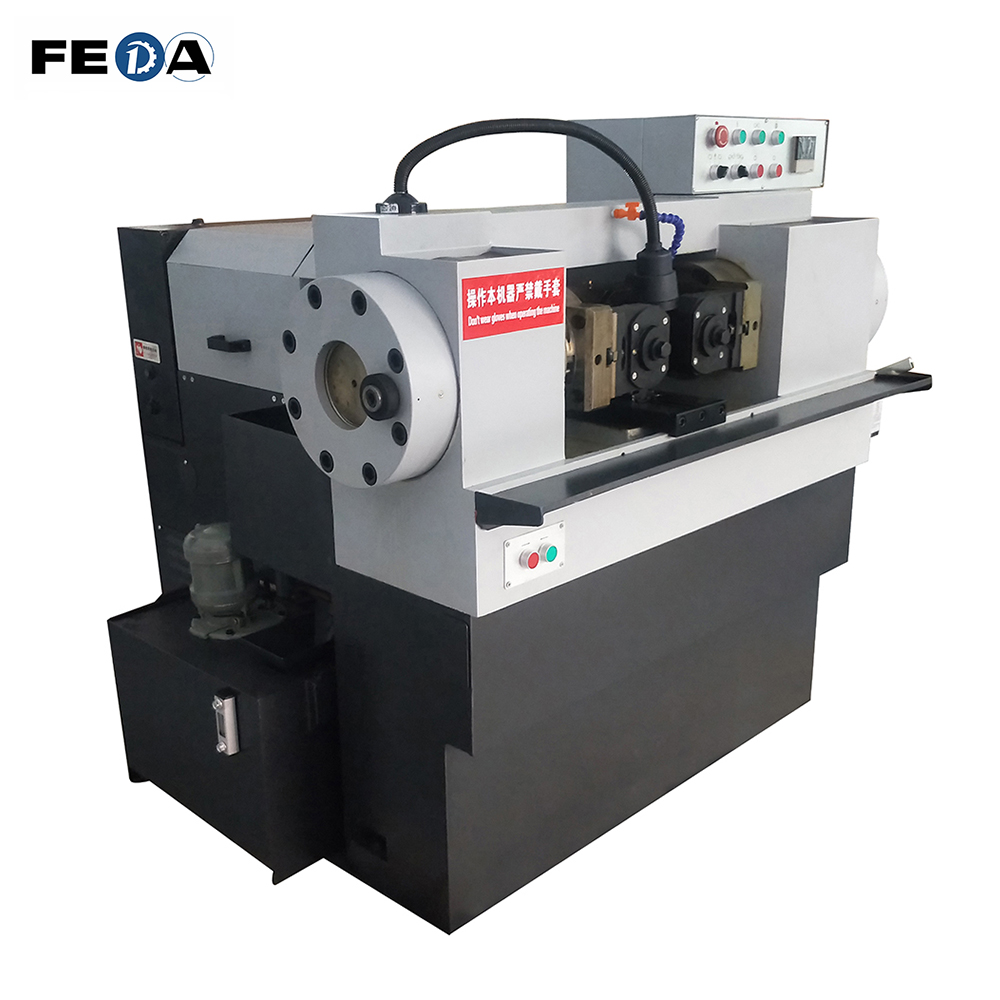

FD-15T Thread Rolling Machine Automatic bar Thread Rolling Machine Thread Rolling Machine for Steel bar

Feda Industry Co., Ltd
Feda Industry Co., LtdChina, Manufacturer

1. Automatic feeding with adjuatable brackets

2. Speed is adjutable for different products

3. 54mm hole diamter for SKD11/DC53 thread rolling dies

4. Max. Rolling pressure is about 150KN

5. It is easy to operate and maintain the machine

6. CE, ISO9001-2008



Specification

Working diameter

4-60mm

Thread pitch

0.8-5mm

Thread length

In feed or Thru feed

Spindle speed

28/35/45/56rpm

Outside diameter of rolling die

135-178mm

Inside diameter of rolling die

54mm

Thickness of rolling die

120mm

Min.center distance between die spindles

120mm

Max.center distance between die spindles

240mm

Main motor

5.5KW

Hydraulic motor

2.2KW

Max. Rolling pressure

15T

Supply voltage

380V 3P 50Hz

Weight(reference)

2500(KG)

Dimension(L*W*H)

1560*1550*1260 mm

Package Dimension(L*W*H)

1600*1540*1550 mm


WhatsApp & Phone: +86 17704032641 ,   Wechat id:  szfeda07

Brand
FEDA
Model
FD-15T
Country of origin
China
