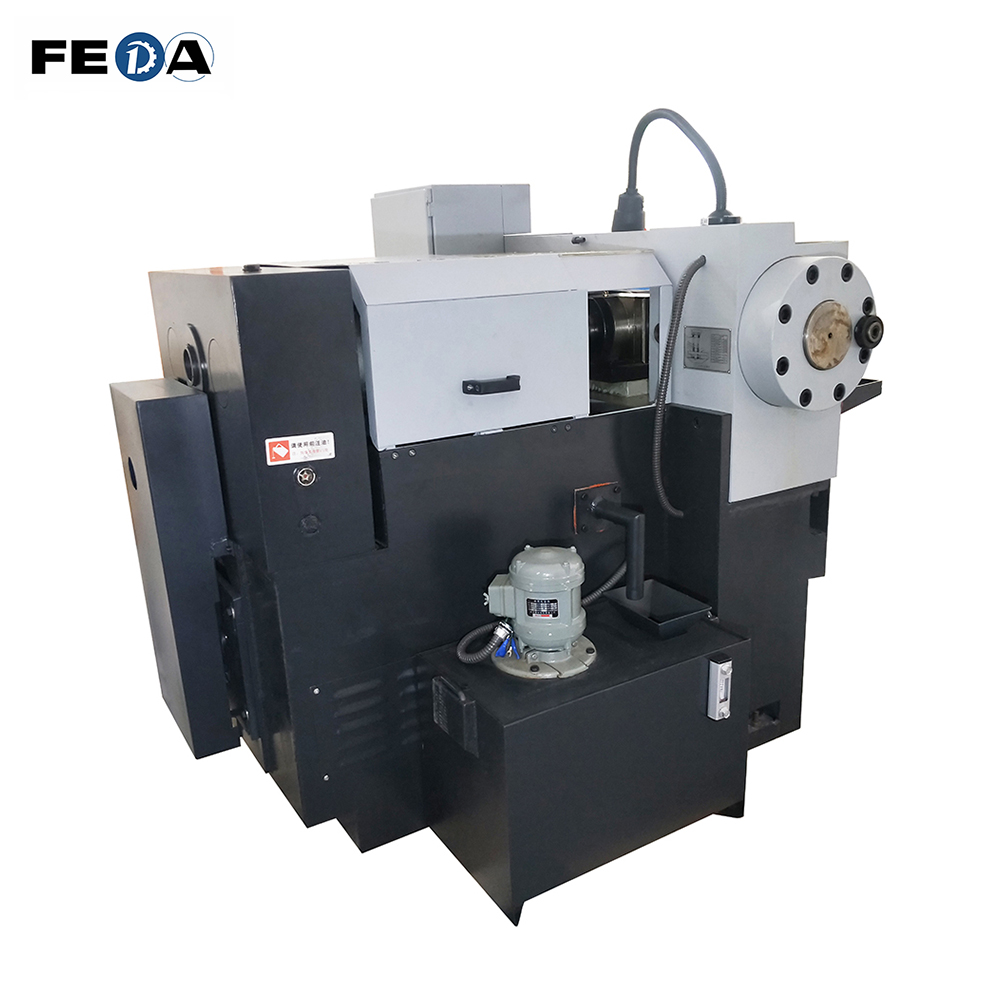

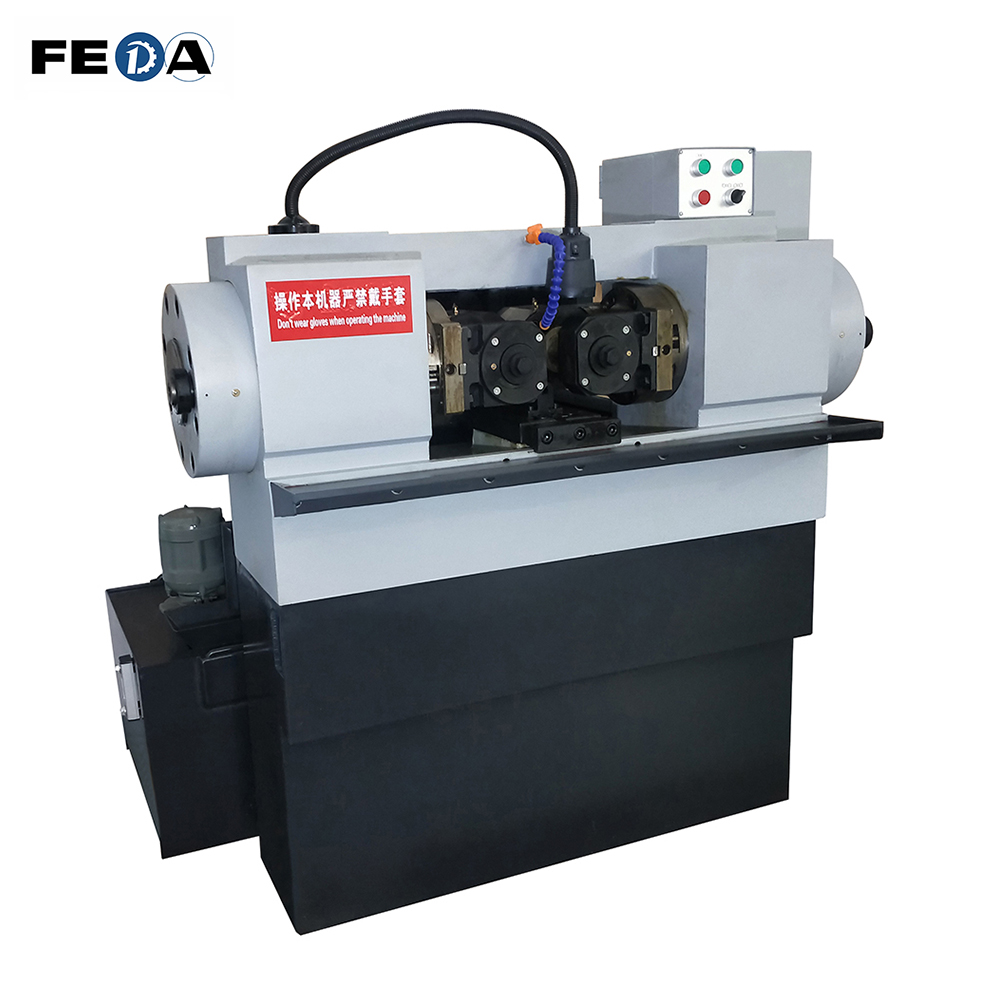

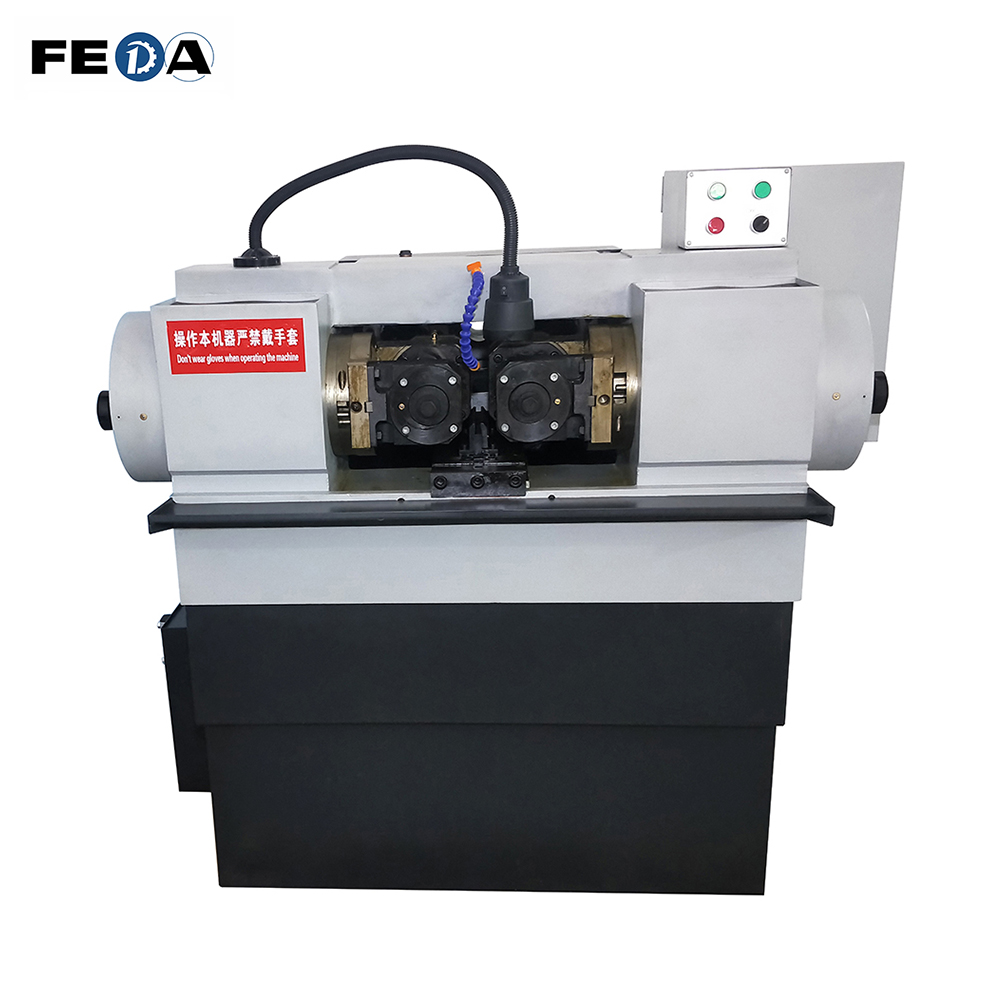

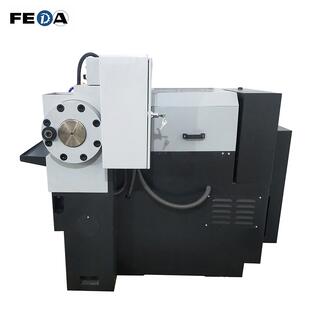

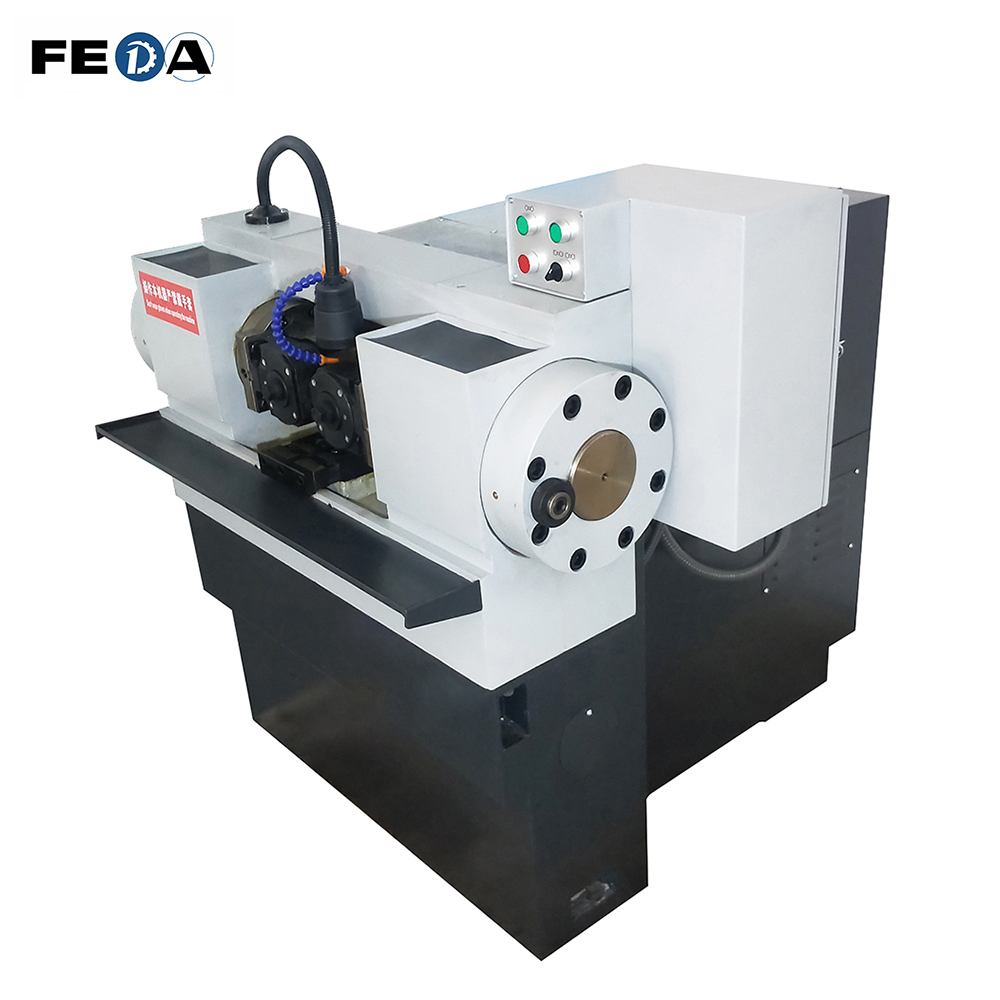

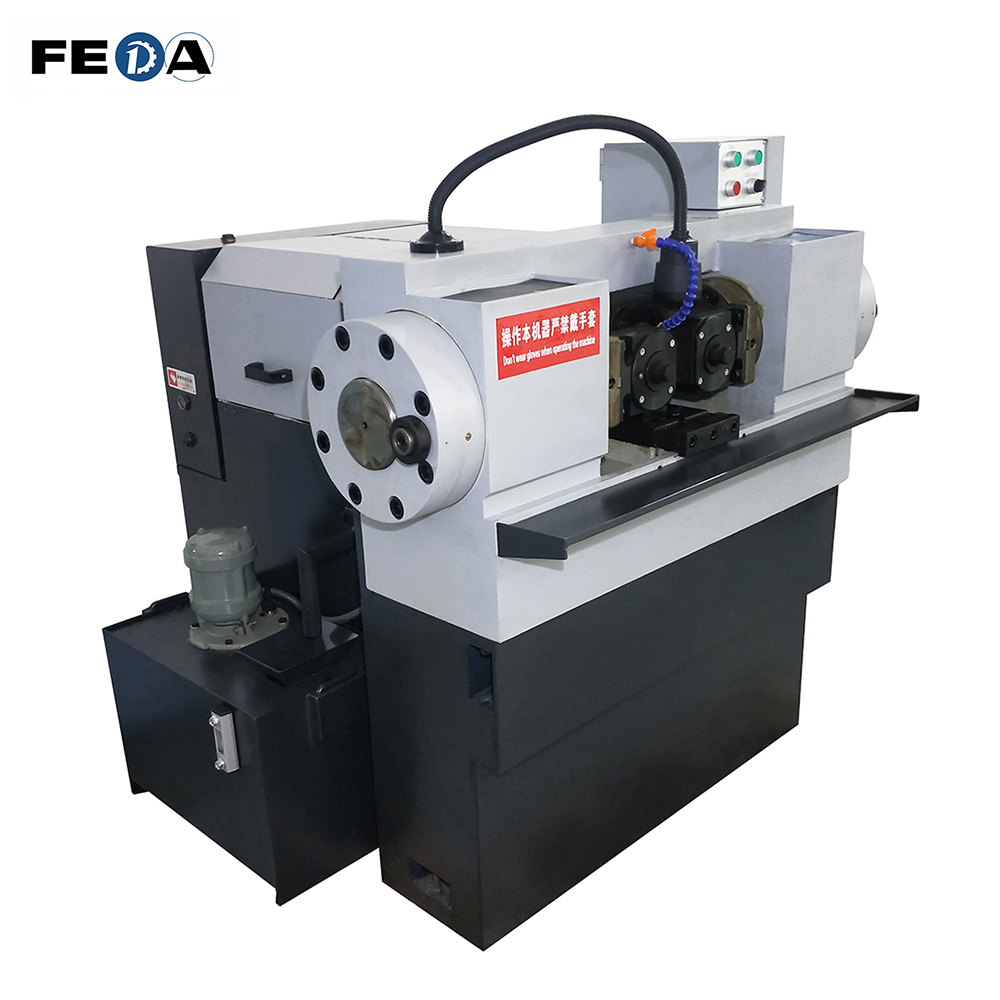

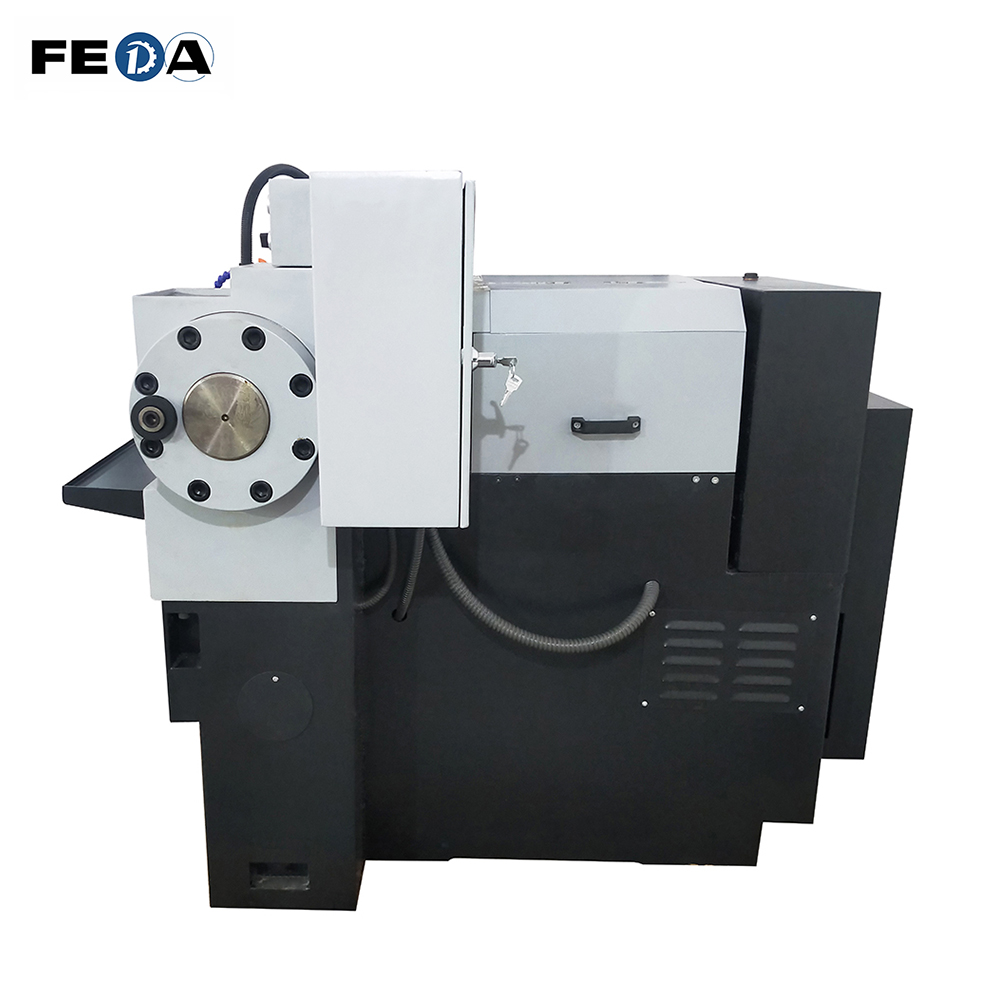

FD-12T Flat Die Thread Rolling Machine Automatic Thread Rolling Machine Thread Rolling Dies Manufacturer

Feda Industry Co., Ltd
Feda Industry Co., LtdChina, Manufacturer

1. Automatic feeding with adjuatable brackets
2. Speed is adjutable for different products
3. 54mm hole diamter for SKD11/DC53 thread rolling dies
4. Max. Rolling pressure is about 120KN
5. It is easy to operate and maintain the machine
6. CE, ISO9001-2008

Specification
Working diameter 2-20/mm
Thread pitch 0.4-2.5P
Thread length In feed & Thru feed
Spindle speed 42/53/68/87rpm
Outside diameter of rolling die 20mm-175mm
Inside diameter of rolling die(keyway) 54mm
Thickness of rolling die 80mm
Min.center distance between die spindles 120mm
Max.center distance between die spindles 196mm
Machine motor / Hydraulic motor 4.2KW
Max.rolling pressure 12T
Supply voltage 380V 3P 50Hz
Weight(reference) 1500(KG)
Package Dimension(L*W*H) 1325*1300*1400 mm
Dimension(L*W*H) 1176*1160*1200 mm

 WhatsApp & Phone: +86 17704032641 ,   Wechat id:  szfeda07


Brand
FEDA
Model
FD-12T
Country of origin
China
