High-Performance 7000m³/H Heavy Duty Dredger with Advanced Siemens PLC

Basic Info.
Model NO.
HP-CSD6014
Cyclone Type
Hydrocyclone
Slot Type
CTS
Customized
Customized
Condition
New
Warranty
1 Year
After-sales Service
Lifetime Technical Support
Mining Project Object
Sand, Mud, Slurry, Silt, Slush, Sludge, Salt
Water Flow
5000-7000m3/H
Certification
CCS, BV, ISO9001, CE, Zc, Dnv, Patent
Dredging Depth
14m-22m
Control System
PLC and 100% Full Hydraulic System
Discharge Distance
1500m-400m
Pump
Warm Technology
Engine
Weichai/Jichai/Cummin
Delivery Time
Stock Available in Workshop, Within 7 Days
Transport
in Bulk
Transport Package
Yes
Specification
20 inch
Trademark
HengPeng
Origin
Huanglou, Qingzhou City, Shandong Province, China
HS Code
89051000
Production Capacity
100 Set
Product Description

Cutter Head Suction Dredger Made in Heng Peng Shipyard

Siemens PLC Heavy Duty Dredger with Dredging Pump Water Flow Capacity 5000-7000m3/H

1. Introduction
The Cutter Suction Dredger of steel construction, the non self-propelled, dismountable type, is able to berth and dredge at any waters both in the coastal area and inland rivers, with similar conditions to that in navigation area "A" or below the "A"-line specified in code for inland river steel engineering ship manufacture of P. R. China.

The dredger can be used to excavate and transport cohesive sediment below the class III specified in code for dredging engineering construction technique issued by Ministry of Water Resources(MWR) of P. R. China.

The hull consists of three pontoons, one main pontoon (engine room), two side pontoons. All parts are dimensioned to allow the dredger to be transported by road, rail or water. The dredger is equipped with a rapid connection-disconnection system for the pontoons, achieved using bolts at deck level, hull front and rear, and hooks at the bottom. Further features of the dredger are the dredger is powered by a Marine engine. The main engine is to drive the dredge pump and hydraulic pump. Hydraulic pump will in turn power other all equipments such as cutter, swing and ladder winches, and the spud rams etc.

The hull is of all welded, steel construction to give the dredger the necessary strength required for dredging operations. The side pontoons are connected to the main pontoon by means of bolts.
The hull steel plate used is CCSB (shipbuilding steel plate ).


Hull decomposition:

High-Performance 7000m³/H Heavy Duty Dredger with Advanced Siemens PLC

High-Performance 7000m³/H Heavy Duty Dredger with Advanced Siemens PLCHigh-Performance 7000m³/H Heavy Duty Dredger with Advanced Siemens PLC

2. Specification


Cutter Suction Dredger Specs HP-CSD 6014
No. Item Parameter Remark
1 Product Name HP-CSD6014
2 Total Length 39.0m
3 Hull Length 29.0m
4 Hull Width 9.2m
5 Hull Depth 2.4m
6 Average Draft 1.5m
7 Main Engine
1650kw (2211HP); 1 set


8 Auxiliary Engine KW; Generating unit; 1 set
9 Dredging Depth 14~16m
10
Pump Water Flow Capacity

50003/h


11
Discharge Distance

1500m


12 Cutterhead Dia m
13 Pump Discharge Dia mm SHIJIAZHUANG
14 Pump Suction Dia mm
15 Solid Capacity 1000-1400m3/h
16 Working Weight of machine 300Ton
17 Spud Pile
18 Hydraulic Winch
19 Navigation Ability
20 Operation System
PLC Control System and 100% Full Hydraulic system


21 Spare Part Diesel engine tools,oliseal,eletric,welder and so on



3. Features
1. One-man operation. The most advanced PLC control system.
2. New highly effective cutter/wheel drive system
3. Reliable hydraulic system.
4. Fresh water cooling system
5.Completely assembled and rigorously tested before delivery, ensuring reliability.
6. Very simple and fast assembly, afloat of onshore
7. Standard design, allowing short delivery times
8. Standard spare parts available from our stock
9. Designed as standard to qualify for Coastal Waters Certificate
10. Optional equipment available

4. Packaging & Shipping
* Smaller size dredger will be transported by container, the dredger is split, each part can be lifted into containers in the warehouse, after the all cargoes be pick uped to jobsite, and our engineers will go to job site to assembly, testing and training.

* Bigger size dredger will be transported by bulk cargo ship in sea, , after the all cargoes be pick uped to jobsite, and our engineers will go to job site to assembly, testing and training.

5. Our Advantages
(1) Lifetime Technical Support
(2) Sending engineers to assemble and test the machine within the period as agreed in the contract.
(3) Making an excellent filing of customers for long-term following-up service.
(4) 24-hour service response
(5) 12-month warranty with free repair services
(6) Imely professional service and solutions
(7) Efficient supply of maintenance spare parts

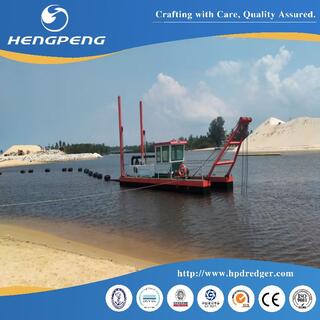

(8) Dredger Abroad,Dredger Working Case

High-Performance 7000m³/H Heavy Duty Dredger with Advanced Siemens PLC

High-Performance 7000m³/H Heavy Duty Dredger with Advanced Siemens PLC

(9) High Quality Engine, Gearbox and Dredging Pump:
High-Performance 7000m³/H Heavy Duty Dredger with Advanced Siemens PLC

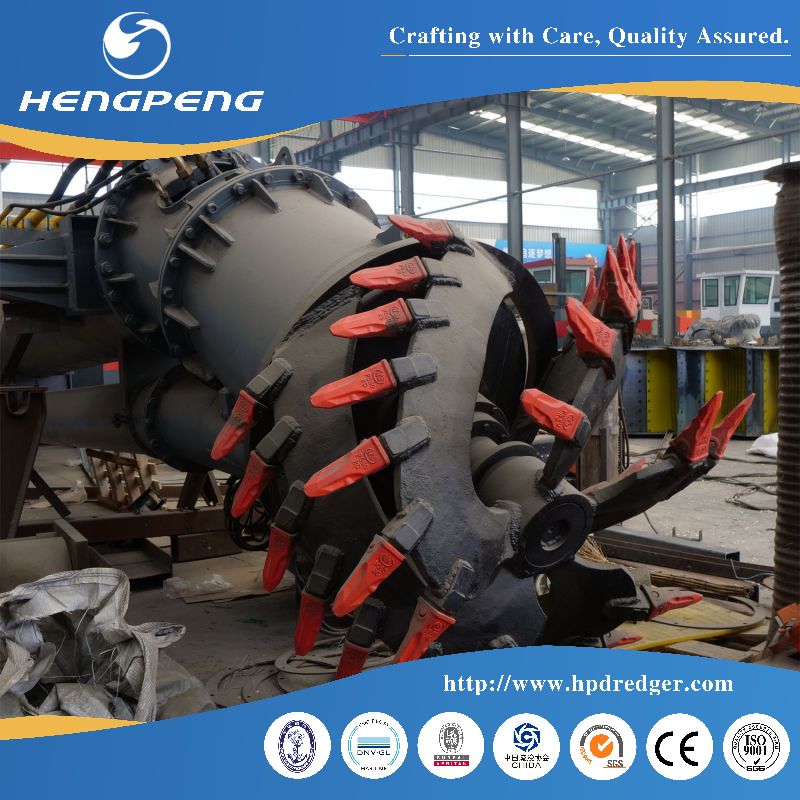

(10) HengPeng High Quality Dredger Accessories:
High-Performance 7000m³/H Heavy Duty Dredger with Advanced Siemens PLC

(11) HengPeng Manufacture, Shipping, Assembly :
a. Shipping:
High-Performance 7000m³/H Heavy Duty Dredger with Advanced Siemens PLC

b. Assembly- Working Jobsite Installation:
High-Performance 7000m³/H Heavy Duty Dredger with Advanced Siemens PLC

(12) Heng Peng Discharge Pipelines:
High-Performance 7000m³/H Heavy Duty Dredger with Advanced Siemens PLC

6. FAQ
Q1, What are the services the HengPeng company is providing?
A: Free dredger consultation, drawing design, customization, on-site visits, free assembly, training, operation testing, and lifetime technical assistance.

Q2, What are the delivery terms?
A: HengPeng Dredger delivery can be in containers or in bulk depends on the dredger size. HengPeng has in-stock dredgers, and constantly storing dredger parts, pipes, pontoons, to shorten the delivery period for special needs.

Q3, What about the payment terms?
A: Payment can be paid in T/T and L/C, payment terms and financial support can be discussed.

Q4, What are the warranty terms?
A: HengPeng provides a standard 1-year global warranty, free problem solving with lifetime technical assistance.

Q5, Why you say HengPeng is your trustworthy dredger manufacturer?
A: HengPeng is a trustworthy dredger manufacturer because we have 30 years' manufacturer workmanship, manufactured for many Fortune 500 companies globally. HengPeng continuing to innovate and develop new products such as amphibious dredger, salt mining dredger and more, upgrades existing dredger technology. Our engineers and designers are hired from prestigious dredger institutions in China. Our products are working in more than 30 countries so far and have 6 global offices to better serve our clients.

7. Why Choose HengPeng ?
30 years' dredger manufacture workmanship
Fortune 500 Company chosen supplier
Large production, ISO 9001 quality system
6 manufacture shops, R&D center, testing pool
Presences in 37 countries
10 series of dredging equipment

8. Company Profile
HENGPENG Shipyard is a pioneering enterprise in the design, construction, and engineering of dredging industries.
Hengpeng offers an unparalleled range of both standardized and tailor-made dredging, working, and support vessels. Our flagship products include Amphibious Dredgers, Cutter Suction Dredgers, Excavator Transportation Carriers, Logistic Transportation Barges, Bucket Wheel Dredgers, Jet Suction Dredgers, Chain Bucket Dredgers, Booster Pump Stations, Mining Dredgers, Iron Sand Boats, Weed Cutting Machines, Multifunction Barges, Tug Boats, Pontoons & Platforms, and Multifunctional Working & Supporting Boats.

Hengpeng takes pride in continually upgrading our solutions by collaborating with premier domestic and international institutes, incorporating cutting-edge technologies from Germany, Holland, Australia, and Japan.

Hengpeng's unmatched products have made a significant impact globally in countries such as UAE, Saudi Arabia, Qatar, Egypt, Spain, Poland, Maldives, Bangladesh, Malaysia, Indonesia, Philippines, and Nigeria, earning high praise and appreciation from our esteemed customers.
Respond to rapid delivery in various regions

Welcome to HengPeng Shipyard ! we are looking forward to providing free consultation for your dredging projects, customize the dredge just for you, manufacture, delivery, assembly, train, operate, and provide lifetime technical assistance to achieve your dredging goal !
