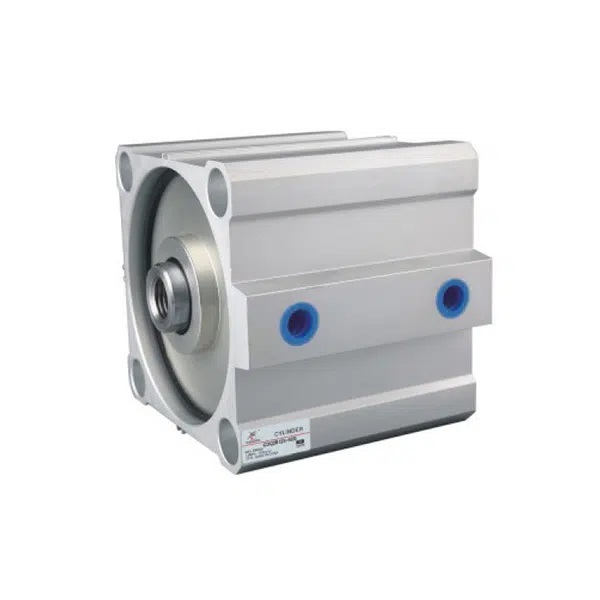

Compact Cylinder (big bore) CQ2 Series (Φ125-Φ200)

Bore(mm):125,140,160,180,200
Fluid used: Air
Form of action: double action
Maximum operating pressure:1.0Mpa/0.7Mpa
Minimum use pressure: 0.05Mpa
Ambient and fluid temperature: with magnetic switch: -10 degree Celsius ~ +60 degree Celsius; without magnetic switch: -10 degree Celsius ~ +70 degree Celsius
Rod end thread: female thread (standard), male thread (optional)
Cushioning: Standard with rubber cushioning
Mounting form: through-hole and female threads on both ends (shared)

Brand

XINGCHEN

Model

CQ series

Country of origin

China
