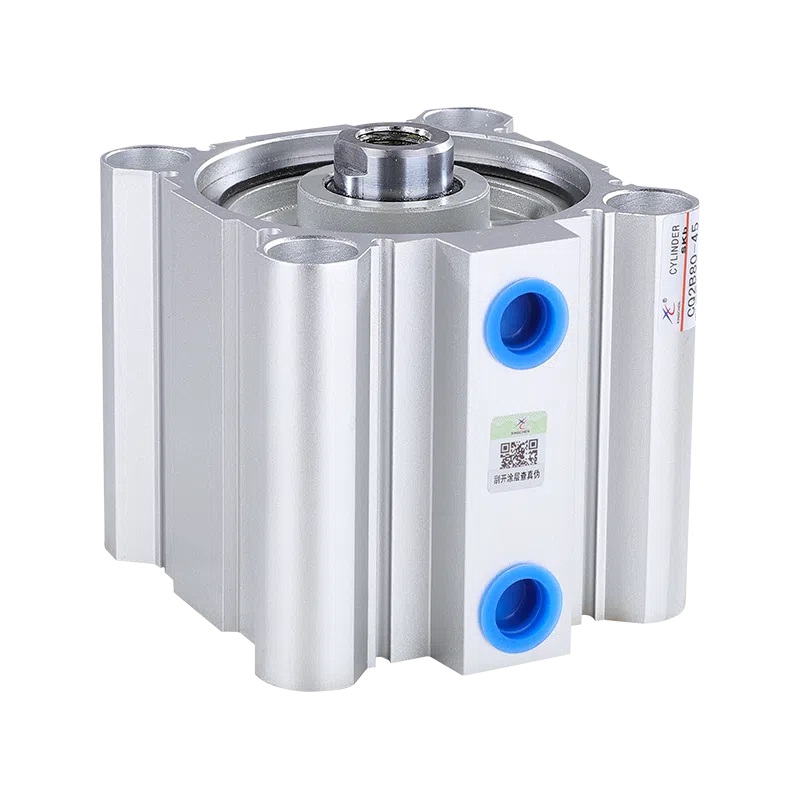

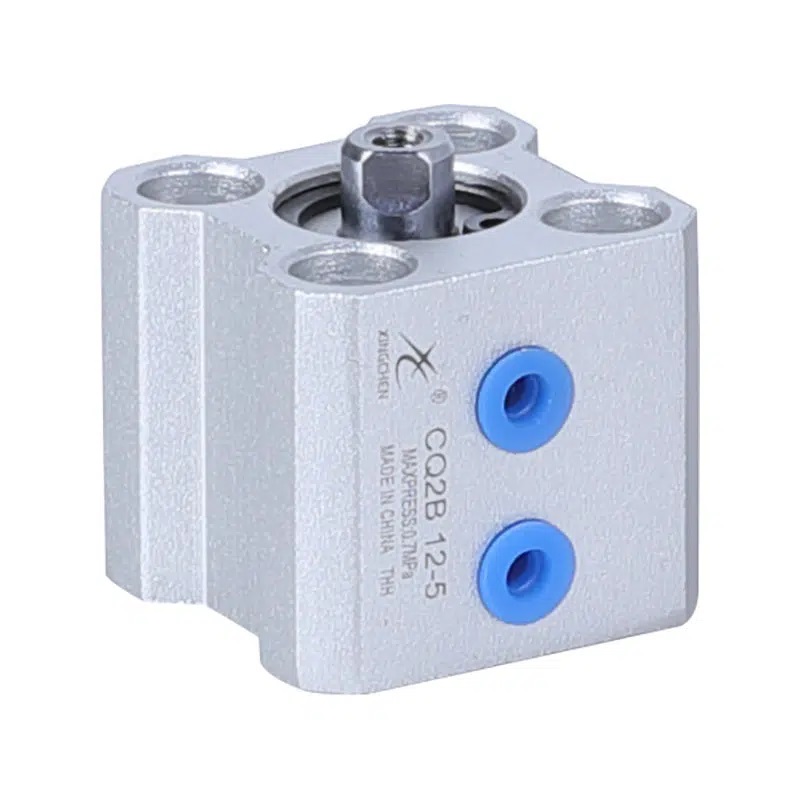

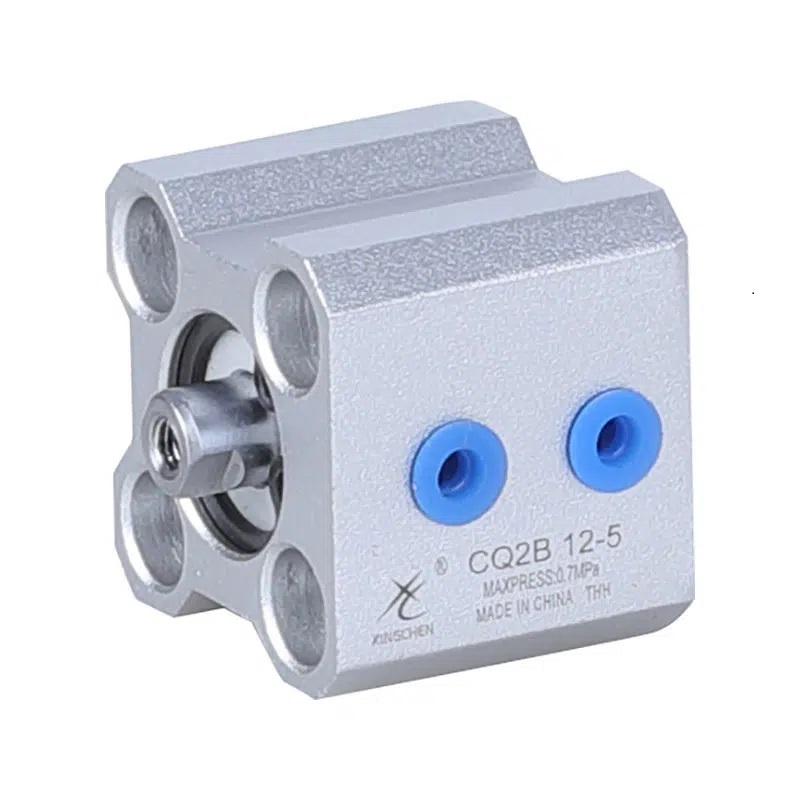

Compact Cylinder CQ2 Series (Φ12-Φ100)

Zhejiang Xingchen Pneumatic Co.,Ltd.
View supplier profile
Contact supplier

Bore (mm):12,16,20,25,32,40,50,63,80,100
Fluid used: Air
Action form: double-action; single-action: spring-loaded push-back/spring-loaded push-out
Guaranteed pressure resistance: 1.5Mpa {15.3kgf/cm2}
Maximum operating pressure: 1.0Mpa {10.2kgf/cm2
Ambient and fluid temperature: 5~60 degrees Celsius
Rod end thread: internal thread (standard); external thread (optional)
Cushioning: none
Piston movement speed: 50~500mm/s
Lubrication: not required
Mounting: through-hole (standard), female threads on both ends (optional)
Pipe caliber: M5X0.8,1/8,1/4,3/8

Brand
XINGCHEN
Model
CQ2 series
Country of origin
CHINA
