Toyo Injection Molding Machine Suitable for the Plastic with Serious Wear and Corrosion

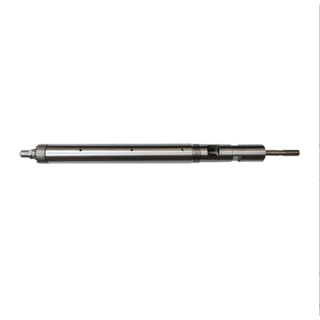

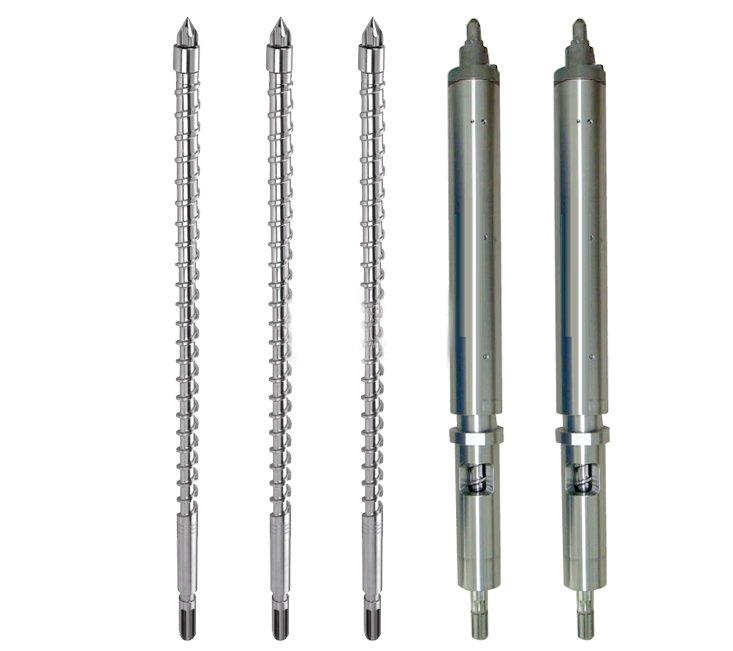

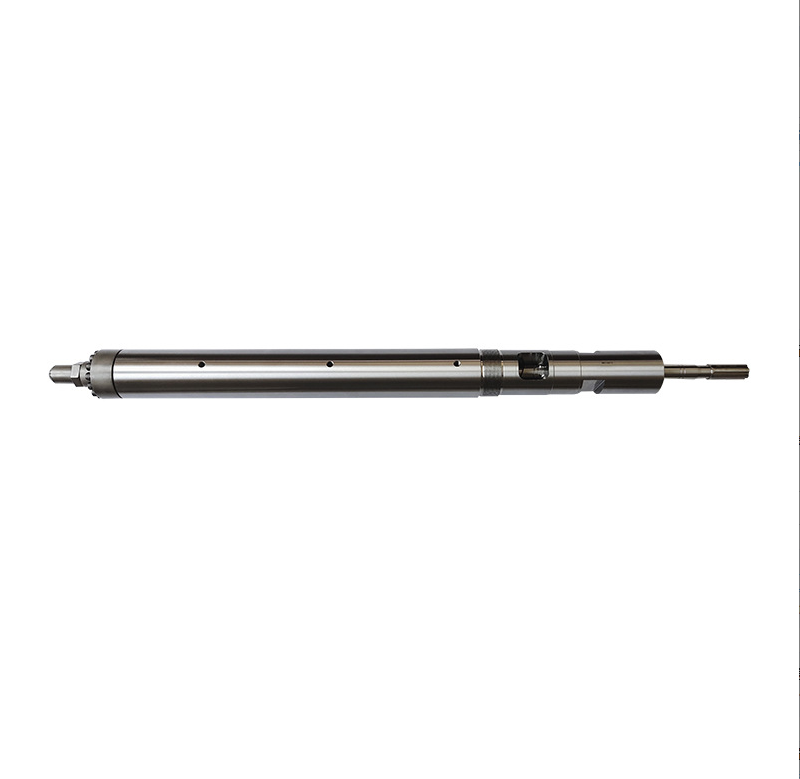

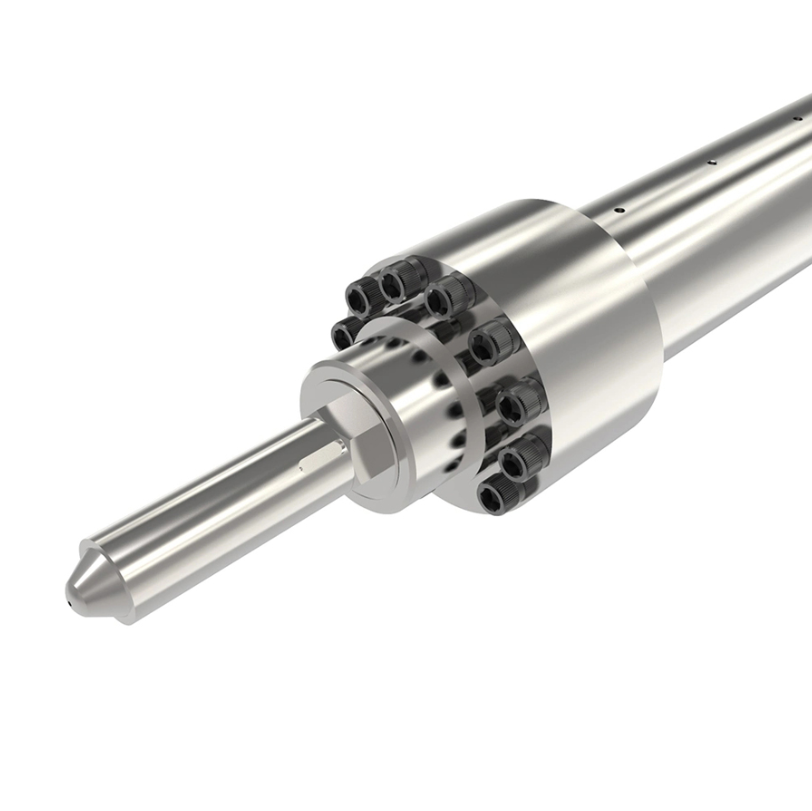

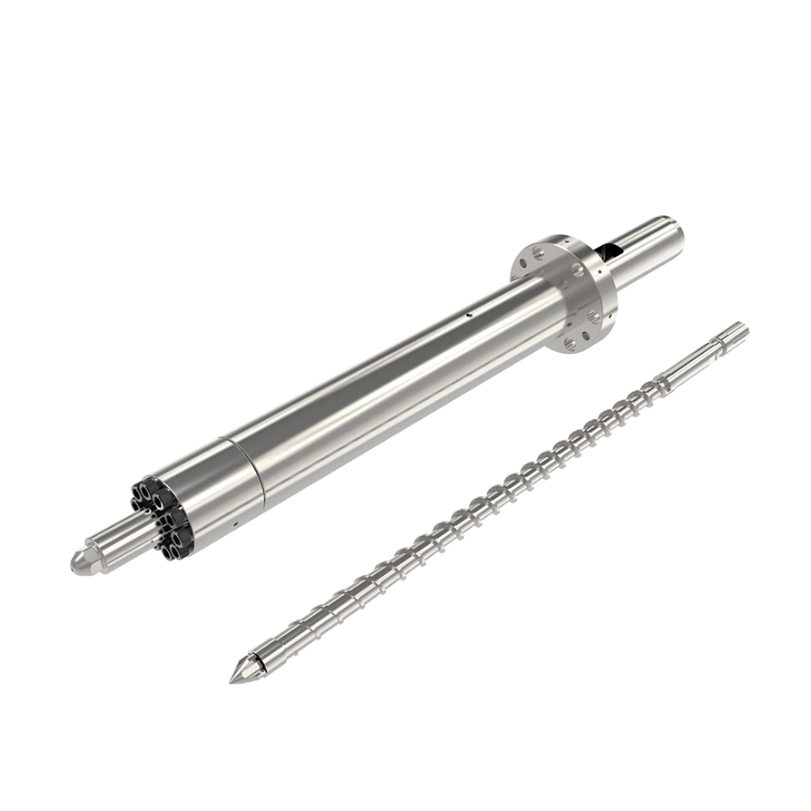

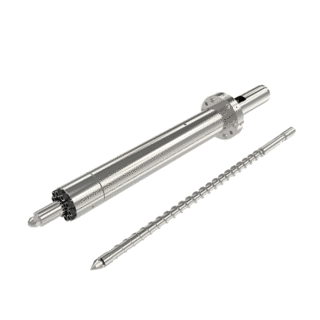

Product Name: Toyo screw and barrel
Scope of Application: Toyo Injection Molding Machine
Material: 38CrMoALA, SACM645, Ni60
Surface Roughness: 0.4mm-0.7mm
Nitriding Hardness: HRC56°-67°
Effective Length: 5000mm
Processing Range: 14mm-200mm
Straightness Accuracy: 0.015mm-1000mm
Applicable plastics: PA, PP, PS, PMMA, PC, POM, PA66, PPA, PFI, PPS, PA6T, PBT, LCP, PPO, PSF, VO fire prevention, fluorine plastic and other engineering plastics add CF, GF and other high corrosion line raw materials; Halogen-free mateial, high fiber materials, ceramics, powder alloys, magnetic materials, highly corrosive materials, high temperature materials, thermosetting materials, liquid materials, high wear materials, etc.
Product feature:
• Toyo screw and barrel has the advantages of high wear resistance and corrosion resistance.
• After special treatment, Toyo screw and barrel can effectively improve the wear resistance and service life of the barrel screw.
• Advanced nitriding technology, cold and hot coating hard gold for Toyo screw and barrel.
• Bimetal processing manufacturing technology for Toyo screw.
The above parameters are for reference only and can be customized.
- Model
- JGH-2036
- Country of origin
- China
