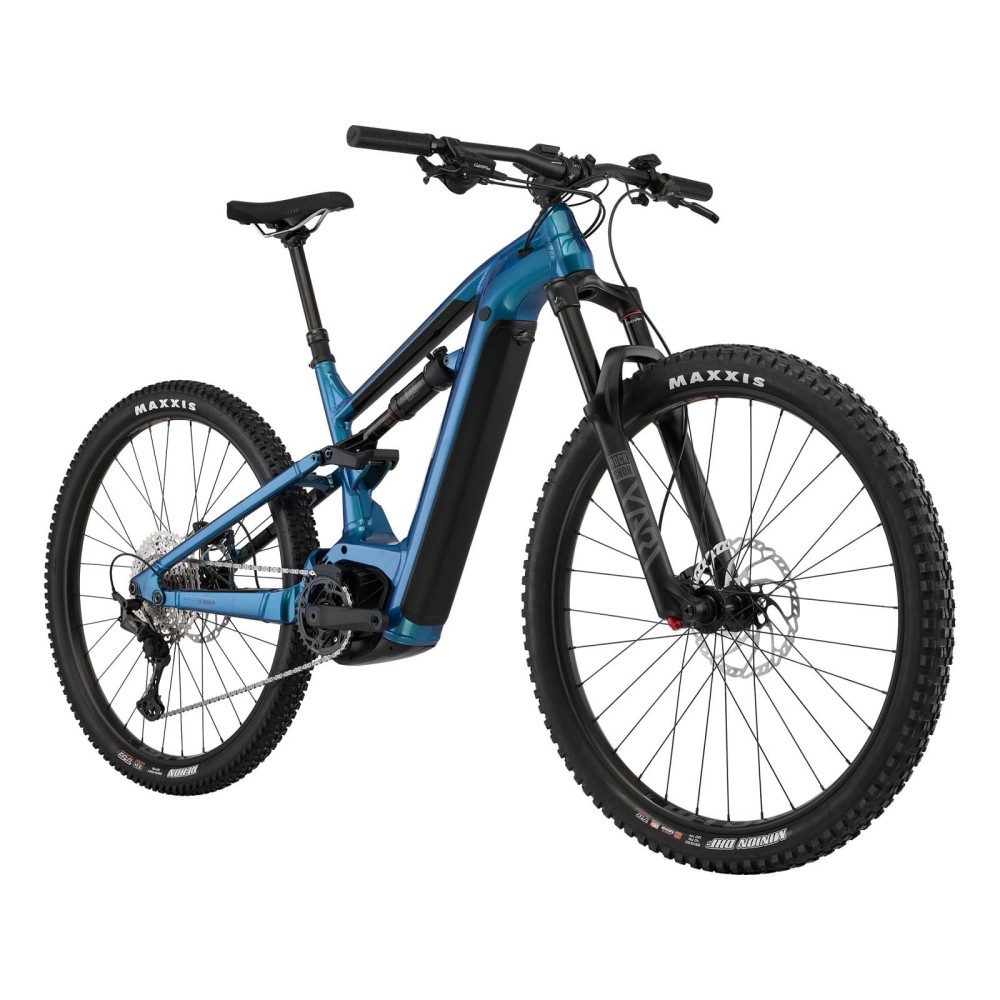

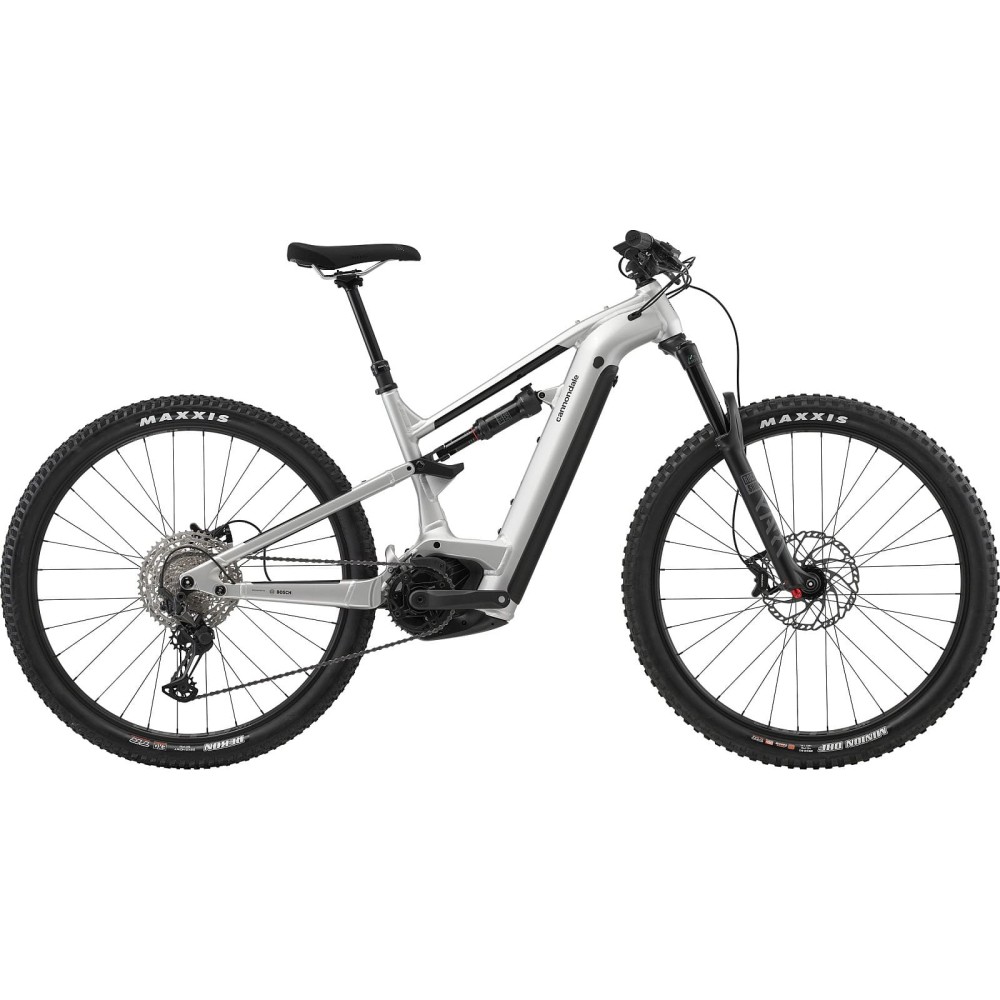

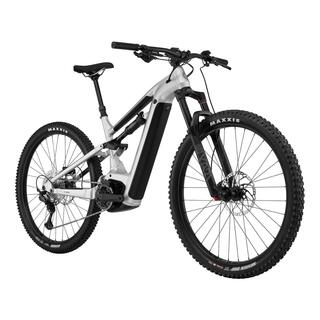

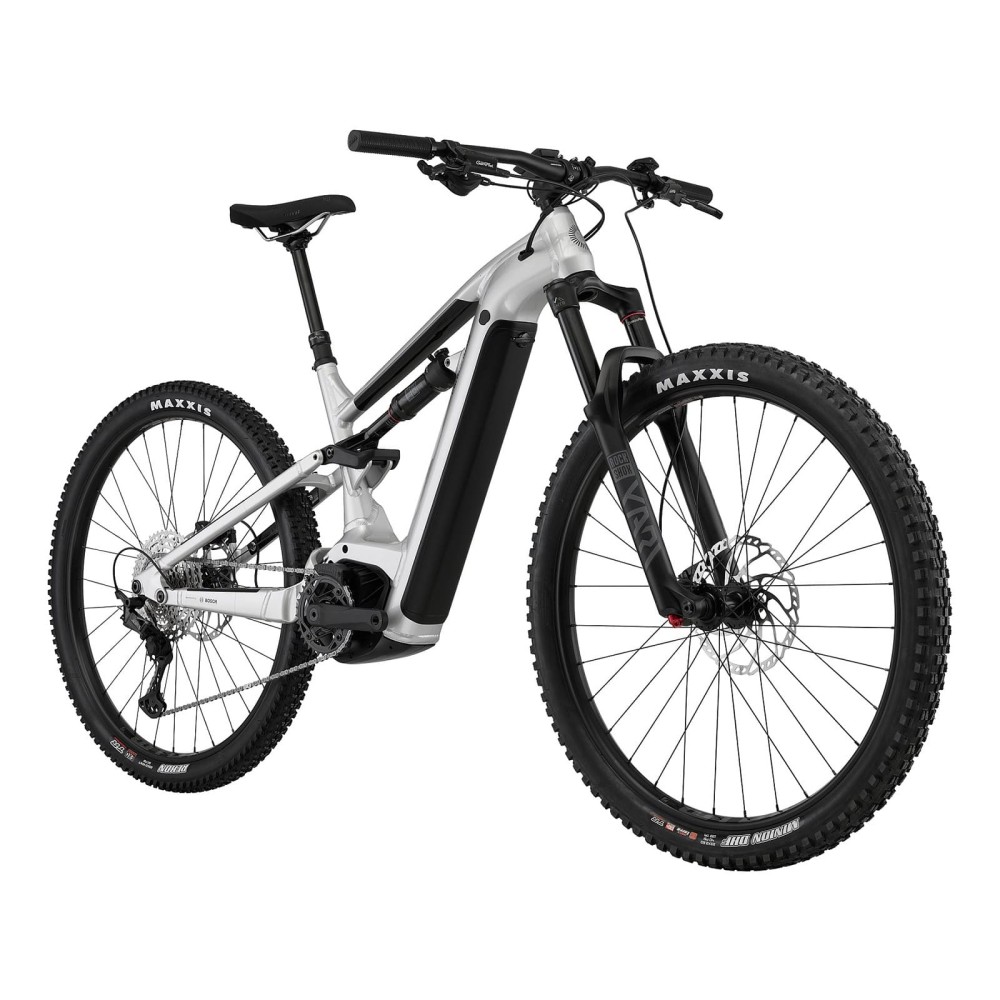

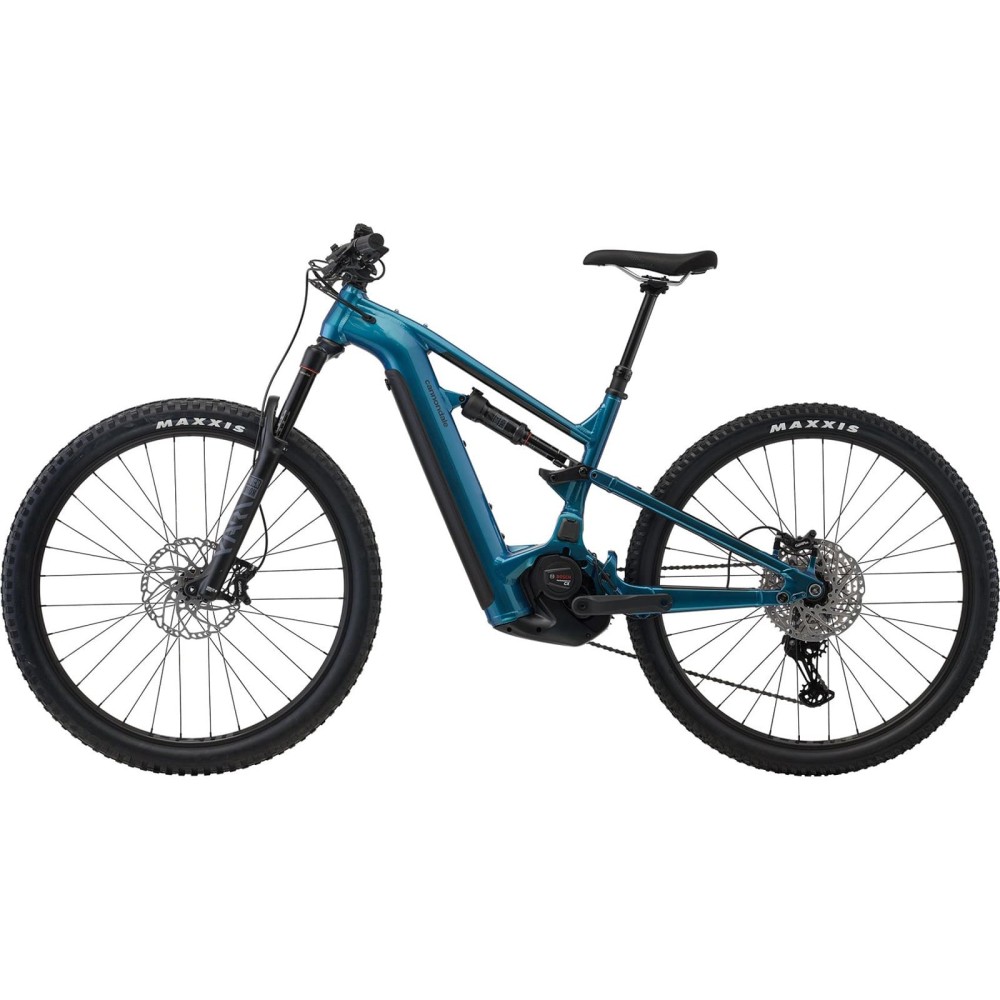

2023 Cannondale MOTERRA NEO 3 - Electric Mountain Bike
The latest Cannondale Moterra Neo 3 Electric Mountain Bike is a groundbreaking full-suspension model, built to crush trails and expand your boundaries like no model before. For peak performance, the Bosch Performance CX motor system delivers superior power, with its smooth curve and wide range of assistance settings putting you in total control. The integrated battery is simple to remove and features a 750Wh battery for extended sessions in the woods. Ideal for trail centres, backcountry exploration and more, this model delivers the confidence you need to push your riding to new heights.
Highlights:
• 150mm of front and rear suspension inspires confidence and ensures capability on technical terrain
• The Bosch Performance CX is the benchmark in electric bike performance, offering 85Nm of torque in a small, compact package
• Proportional Response size-specific design sees each size receive unique geometry, suspension kinematics and frame construction
• 29” wheels offer fast-rolling performance - size S features a mixed-wheel setup to enhance manoeuvrability
• Rack, mudguard and kickstand capability, as well as room for a water bottle, are found across the size range
• The 750Wh battery size provides an extensive range for more laps on the hill
• RockShox Yari RC and Deluxe Select shock iron out the trail and deliver glue-like traction
• Four-piston brakes boost braking power for confidence on steep descents
Battery Specifications:
• Maximum Assist: 250w / 85Nm torque
• Motor Weight: 2.9kg
• Battery Power: 750Wh
Specification:
Frame: Cannondale Moterra Neo, SmartForm C1 Alloy, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, injection moulded skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, tapered headtube, 18mm two-bolt kickstand mount, integrated rear rack mounts
Fork: RockShox Yari RC, 150mm, 15x110mm Boost, 44mm offset
Rear Shock: RockShox Deluxe Select, DebonAir, 2-Pos mode adjust, adjustable rebound
Stem: Cannondale 3, 6061 Alloy, 31.8mm, 0°
Handlebar: Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8-degree sweep, 4° rise, 780mm
Grips: Fabric FunGuy
Front Brake: Shimano MT420, four-piston, hydraulic disc, 203mm rotor
Rear Brake: Shimano MT420, four-piston, hydraulic disc, 203mm rotor
Brake Levers: Shimano MT401, hydraulic disc
Rear Derailleur: Shimano XT, 12-speed
Shift Levers: Shimano Deore M6100, 12-speed
Chain: Shimano Deore 6100, 12-speed
Cassette: Shimano Deore M6100, 10-51, 12-speed
Crankset: FSA Bosch E-bike, 55mm chainline, 160mm, 34t
Front Wheel: Rim - WTB ST i30 TCS, 32h, 29”, tubeless-ready / Hub - Formula 15x110mm thru-axle
Rear Wheel: Rim - WTB ST i30 TCS, 32h, 29” (27.5” - size small), tubeless-ready / Hub - Shimano MT410, 12x148mm thru-axle
Front Tyre: Maxxis Minion DHF, 29 x 2.6", EXO, tubeless-ready
Rear Tyre: Maxxis Rekon, 29 x 2.6" (27.5x2.6" - size small), EXO, tubeless-ready
Saddle: Fabric Scoop Shallow Sport, steel rails
Seatpost: TranzX dropper, internal routing, 31.6mm, 130mm (S), 150mm (M-XL)
Motor: Bosch Performance CX Smart System, 250 Wh, 85Nm
Ui/Remote: Bosch Kiox 300 with LED Remote
Battery: Bosch PowerTube, 750 Wh
Accessories: Cannondale Wheel Sensor, Pre-installed light cable, charger
Electric assisted speed limit: 15.5 mph / 25 km/h
