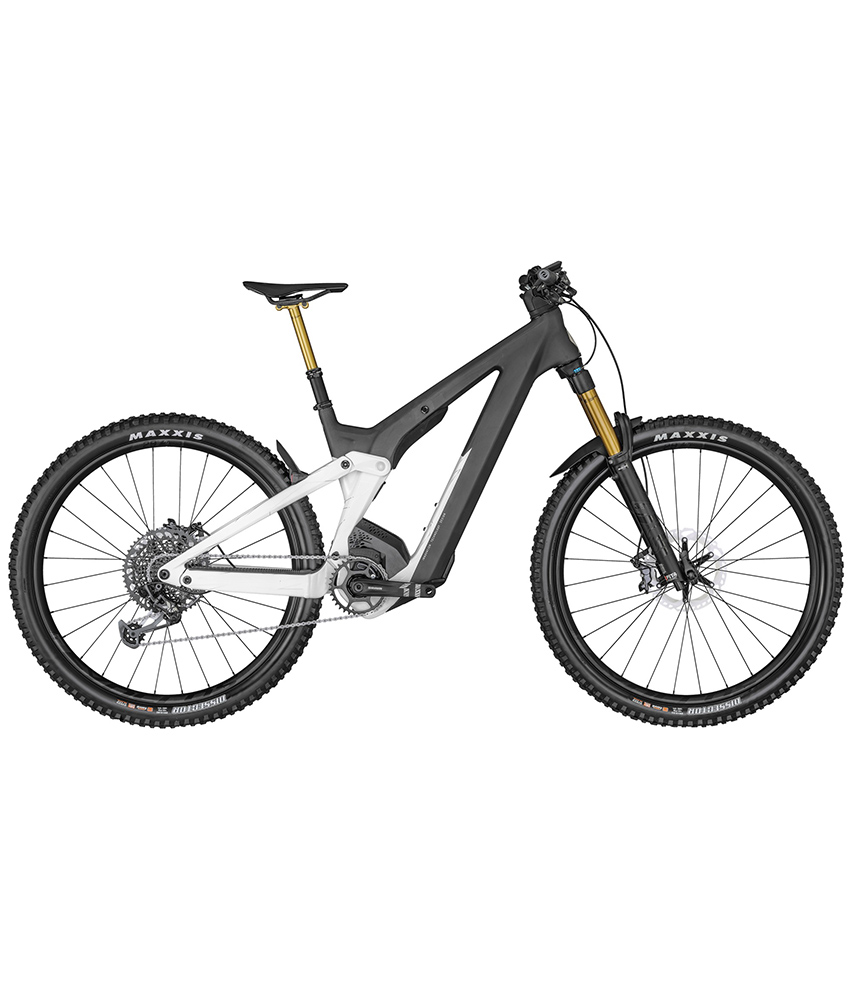

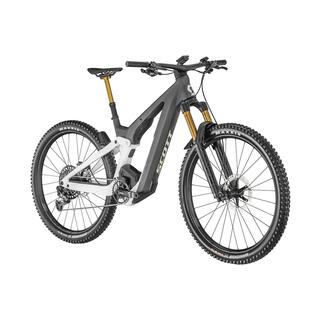

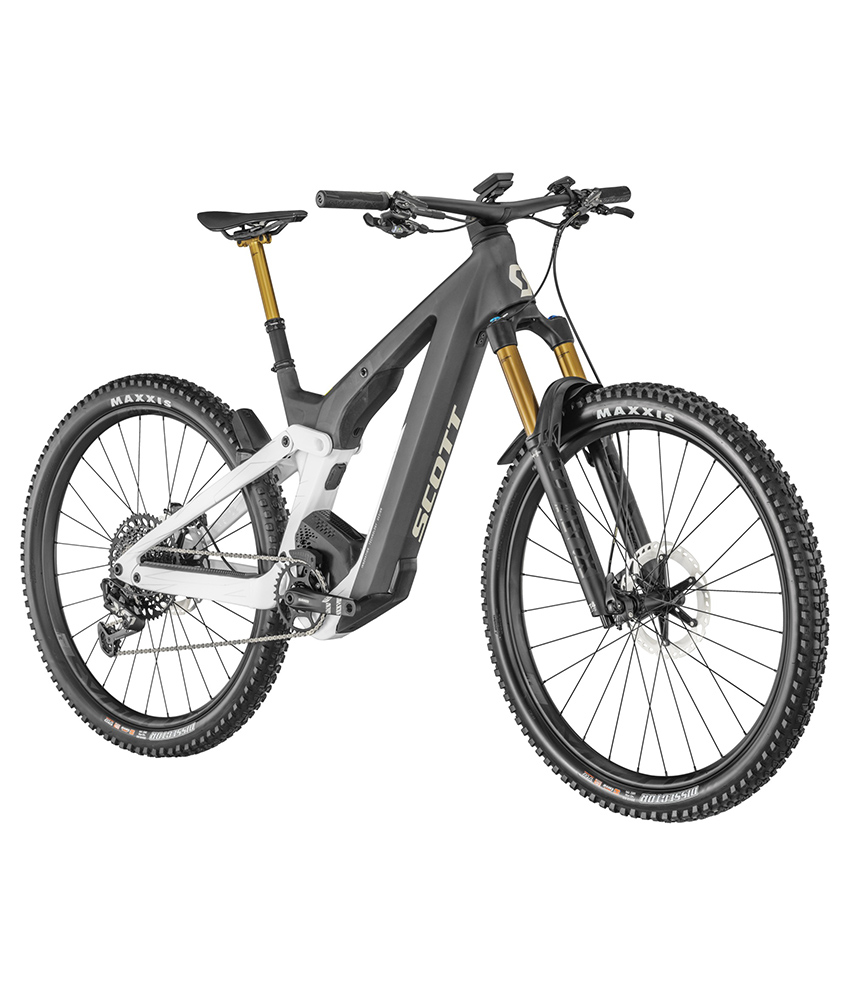

2022 Scott Patron eRIDE 900 Tuned Electric Bike
2022 SCOTT PATRON ERIDE 900 TUNED ELECTRIC BIKE
The all-new Patron eRIDE Tuned was designed as a system optimized for all day trail riding. Supreme integration and painstakingly chosen geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a sublime experience up and down the mountain, time and time again. Patron eRIDE - boss the trails.
FEATURES:
• Patron eRIDE Carbon Frame
• FOX 38 Factory 160mm Fork
• FOX Nude T eRIDE EVOL, 160mm, TwinLoc
• SRAM X01-GX Eagle 12 Speed
• Bosch CX, 750Wh PowerTube
• Shimano XT 4 Piston Disc Brakes
• Maxxis Foldable Tires
• FOX Dropper Post / Syncros Parts
• Bosch Light Cable pre-installed F&R
SPECIFICATION:
Frame:
Carbon Main Frame & SST / Alloy CST-Link Virtual 4 link kinematic VLK 29x2.6 / Boost 148x12mm UDH 160mm travel / Bosch Gen4 / Integr. removable Battery 1.8" Headtube, Central Kickstand Mount Integr. Cable
Travel:
Front: 160mm / Rear: 160mm
Fork:
FOX 38 Float Factory Air / Kashima / eMTB+ / FIT4 3-Modes with low Speed adj. / QR Axle 15x110mm axle 44mm offset / tapered steerer / Reb. Adj. / Lockout / 160mm travel
Rear Shock:
FOX NUDE T eRIDE EVOL / Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend custom large air volume / DPS / Reb. Adj. Travel 160-115-Lockout / 205X60mm
Remote System:
SCOTT TwinLoc 2 Technology Suspension & Dropper Remote 3 modes
Drive Unit:
Bosch Performance CX EU: 25kmh / INT: 20mph
Battery:
PowerTube 750Wh
Display:
Bosch LED Remote & Kiox 300
Charger:
4A Charger
Rear Derailleur:
SRAM X01 Eagle / 12 Speed
Shifters:
SRAM GX Eagle Single Click
Crankset:
SRAM X1 1000 / 165mm / 34T
Chainguide:
e*thirteen / e*spec Slider
Chainring:
SRAM Eagle 34T DM / Steel
Chain:
SRAM NX Eagle
Cassette:
SRAM XG1275 / 10-52 T
Brakes:
Shimano XT / BR-M8120 4 Piston
Rotor:
Front: RT-MT800 CL 203mm / Rear: RT-EM800 CL 203mm
Handlebar:
Syncros Hixon iC SL / 15mm Rise / integrated cockpit S&M: 5° 50mm / L&XL: 4° 60mm virtual stem angle & extension 7° backsweep / 6° upsweep / Syncros Pro lock-on grips
Seatpost:
FOX Transfer Factory Dropper Post Kashima 31.6mm / S size 125mm / M & L size 150mm / XL size 175mm
Seat:
Syncros Tofino 1.0 Regular Carbon rails
Headset:
Acros / 1.8" ZS66 OD74 / integr. Cable
Wheelset:
Syncros Revelstoke-E 1.5 CL F: 15x110mm, R: 12x148mm Boost 30mm Tubeless ready rim 28H Syncros Axle w/Removable Lever with Tool
Front Tire:
Maxxis Dissector 29x2.6" 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra
Rear Tire:
Maxxis Dissector 29x2.6" 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra
Lights:
Bosch Light Cable pre-installed F&R
Extras:
Syncros Trail 2 fender 36/38 Syncros eRIDE integrated light fender
Approx weights in KG:
24
Approx weights in LBS:
52.91
Max. System Weight:
128 kg The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
