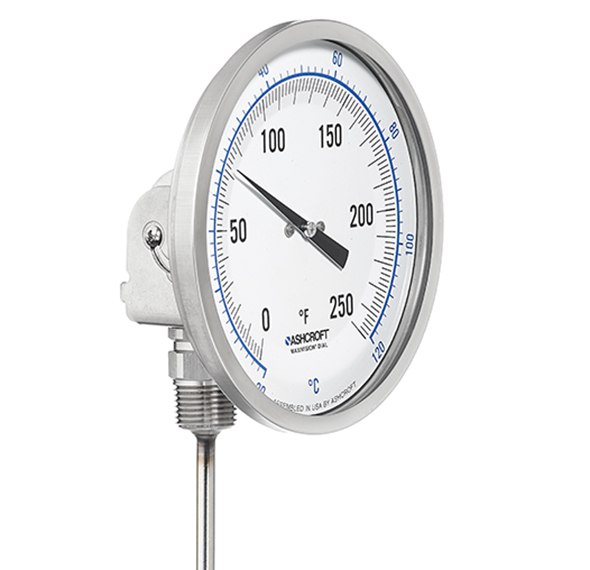

Model E Bimetal Thermometer

The Ashcroft® Model E bimetallic thermometer is a high-quality process temperature instrument that delivers exceptional reliability. An ideal choice for accurate temperature readings. Offers dampening options to counter vibration.

Key Features:

• Hermetically sealed case to prevent entry of moisture, interior corrosion and coil freeze-up
• External adjustment allows to be able to perform quick and limited span adjustments
• 3″ or 5″ Maxivision® dial for easy readability and parallax elimination
• Silicone dampened coil or liquid-fill option for reduction of pointer flutter in high vibration applications and improved response times
• ±1% Accuracy to ASME B40.3

Applications:

Process Market:
• Offshore Oil Rigs
• Chemical and Petrochemical Plants
• Water and Wastewater Pressure Control
• Pulp and Paper
• Refineries
• Power

Industrial Market:
• General Industrial
• HVAC
• Equipment Skids

Medical and Life Sciences:
• Pharmaceutical / Biotech
• Food and Beverage

Specifications:

Accuracy:
±1% of span ASME B40.200 (B40.3 Grade A)

Stem Length:
Dry: 2 ½ ̋ to 60 ̋
Liquid Filled: 2 ½ ̋ to 24"

Size:
2˝, 3˝, 5˝

Process Connection:
Plain, Pointed Stem, 1⁄2 NPT, 1⁄2 NPT Union and 1⁄2 NPT Adjustable Union

Stem Diameter:
0.250 ̋
0.375"

Case & Stem:
304 Stainless Steel
316 Stainless Steel

Process Connection Location:
3˝, 5˝: Everyangle™, Lower, Center Back
2 ̋: Centerback

Enclosure Ratings:
NEMA 4X / IP66
Hermetically sealed

Window:
Glass, Safety Glass or Acrylic

Certifications & Approvals:

• RoHS

Brand

Ashcroft

Country of origin

United States
