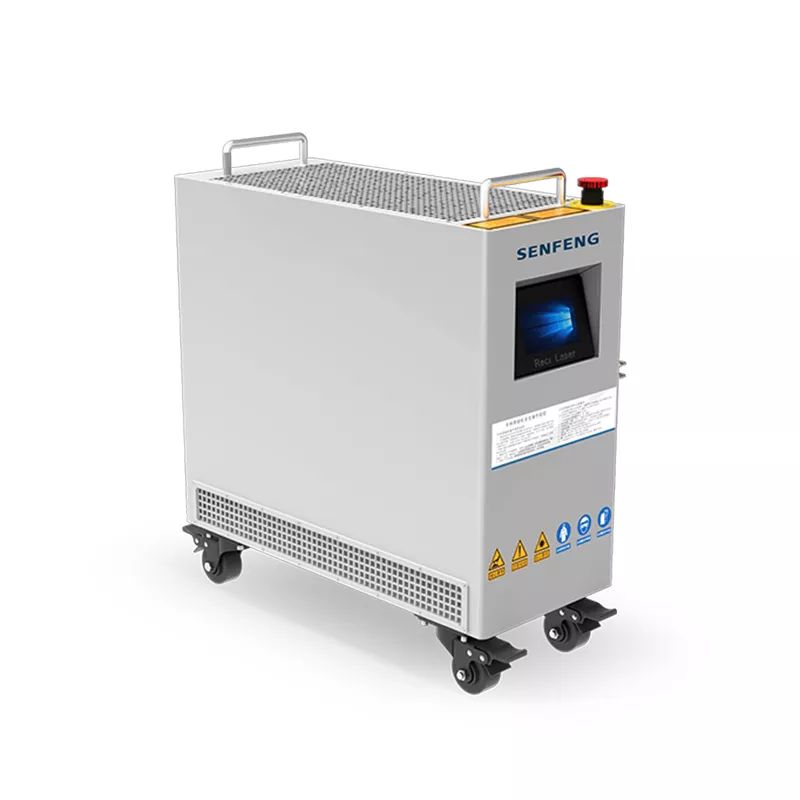

Portable Handheld Laser Welding Machine

• Save space
• Easy to operate
• Wide range of welding materials

Laser welding refers to welding with the heat generated by focused laser beam hitting weldments. As the laser has optical features of refraction and focusing, laser welding is suitable for micro parts and parts with poor weldability. Senfeng portable handheld laser welding machine has the features of low heat input and small welding deformation and is not affected by electromagnetic fields.

Technical Parameters:

Model: handheld laser welding machine
Power: 1.5kw
Welding thickness: Carbon steel:0.5-4mm Stainless steel:0.5-4mm Aluminum:1-3mm
Working mode: Continuous
Size（W×H×D）Notes: handle include: 352mm×692mm×666mm
Weight（kg）: <75

Advantage:

• Fiber laser welding machines can minimize the heat input, lower the metallographic range of the heat affecting zone, and minimize the deformation caused by heat conduction.
• The laser beam can be focused on a small area to weld small, closely spaced parts.
• A wide range of weldable materials and various heterogeneous materials can also be joined to each other.
• The machine is suitable for high-speed welding by automation, and can also be digitally or computer controlled.
• When welding thick plate or fine diameter wire, there is no problem of melt back, which arc welding has.
• Unaffected by magnetic fields (arc welding and electron beam welding are easily affected), which can precisely target weldments.

Welding Materials:

Portable handheld laser welding machine can be used to weld stainless steel, carbon steel, aluminum, chromium, nickel, titanium, and other metals.

Application Industry:

Portable handheld laser welding machine can be used to weld stainless steel, carbon steel, aluminum, chromium, nickel, titanium, and other metals.

Brand

Senfeng

Country of origin

China
