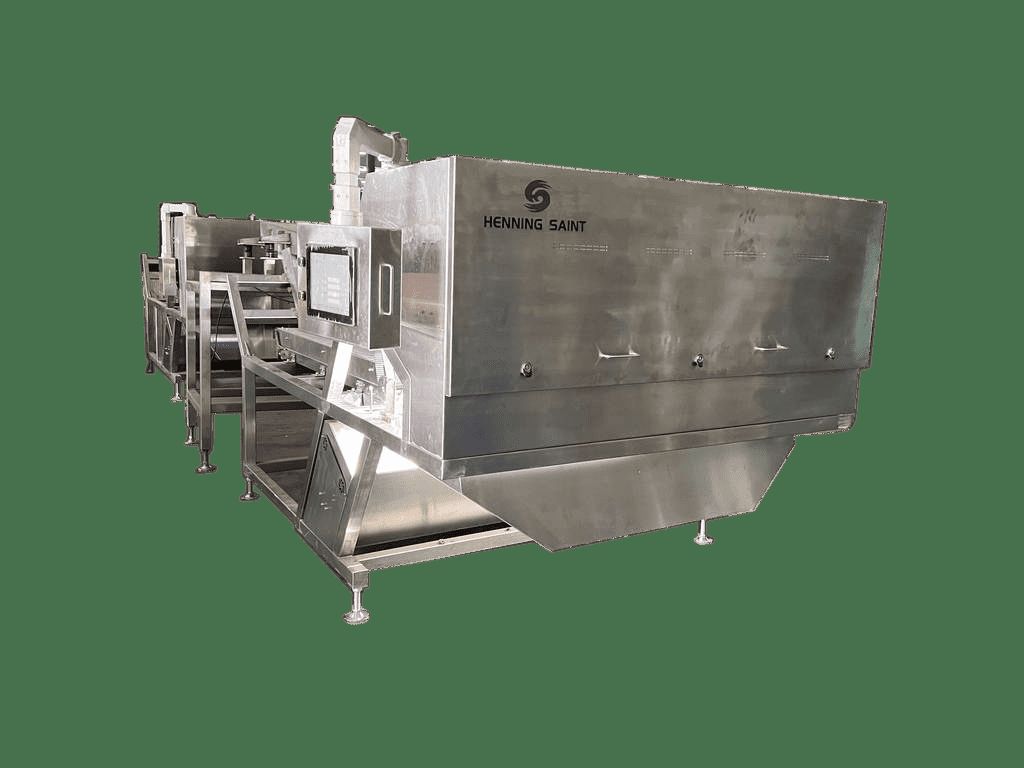

Condiments Color Sorter
AHST condiments color sorter is an intelligent photoelectric recognition and sorting equipment that replaces manual sorting according to the color and shape differences of raw condiment materials. Through the software system of real-time image comparison and accurate sorting parameters, the equipment can sort the defective products and impurities from the raw materials according to different requirements.
Features:
1. Special intelligent software system
• Automatic machine capture
• Physical image comparison
• Precise parameter setting
2. Intelligent linkage
• Seamlessly connect to various production lines
• Parameter adjustment with material changes
3. Double-layer crawler structure design
• Wide range of materials for crawler feeding
• Double-layer structure can achieve twice sorting
• Track structure reduces damage to materials
• Machine structure to improve production and precision
4. Remote service
• Remote control
• Remote maintenance
5. Traceability management
• Build enterprise product quality file
• Realize product quality tracking
• Grading management function
Parameters:
Model No.: HSL1-256
Power(kW): 5.5KW
Voltage(V): 220（50Hz）
Dimension(L*W*H,mm): 4218×1900×2034
Weight(kg): 1200
Air Pressure(MPa): 0.6-0.8
Number of Nozzles: 256
Sorting Accuracy（%）: >99%
Model No.: HSL2-512
Power(kW): 7.5KW
Voltage(V): 220（50Hz）
Dimension(L*W*H,mm): 4288×2320×2400
Weight(kg): 1800
Air Pressure(MPa): 0.6-0.8
Number of Nozzles: 512
Sorting Accuracy（%）: >99%
- Country of origin
- China
