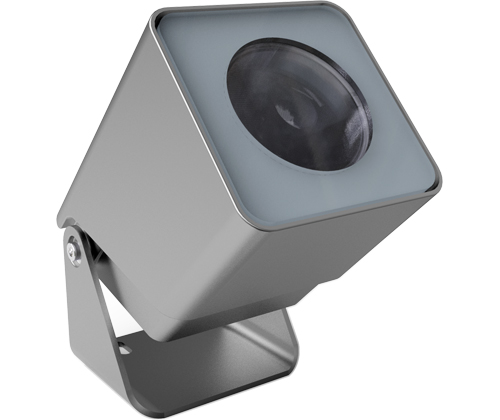

Narrow Beam Flood Light EXC-B60ABL

EXC-B60ABL series consists of full-color large-power ultra-narrow spotlights with high-strength aluminum-alloy housing specially designed by EXC for outdoor landscape lighting. It is equipped with 3° professional lens. Each light is a separate lighting pixel, and each pixel can realize 65536 grades gray scale changing. It could be used for illumination in specific areas or landscape wash lighting, applicable on building facades, bridges, stages, etc.

Specification Optical Parameters of Narrow Beam Flood Light EXC-B60ABL:
LED Brand: CREE, Lumileds, Epistar, Taiwan series, Osram
Color: W, RGB, RGBW
Beam Angle: 3°, 5°, 10°, 80°, and other angles optional
Source Life: 50,000h

Electrical Parameters of Narrow Beam Flood Light EXC-B60ABL:
Working Voltage: DC 24V
Rated Power: Maximum 3W/7.5W

Control Parameters of Narrow Beam Flood Light EXC-B60ABL:
Control Method: DMX512 /ON OFF
Gray Scale: 8Bits/16Bits
Control System: EXC-ALL the lights control system

Structural Parameters of Narrow Beam Flood Light EXC-B60ABL:
Shell Material: High Strength Aluminum
Cover: Tempered glass
Surface Color: Black&White, Other color optional
Structure Size: 64mm x 60mm x 34.5mm (L x W x H, exclude Mounting Bracket)
Total Weight: 0.5kg

Environmental Parameters of Narrow Beam Flood Light EXC-B60ABL:
Working Temperature: -40°C to 50°C
Storage Temperature: -40°C to 70°C
Protection rating: IP66
Application environment: Outdoor

Model

EXC-B60ABL

Country of origin

China
