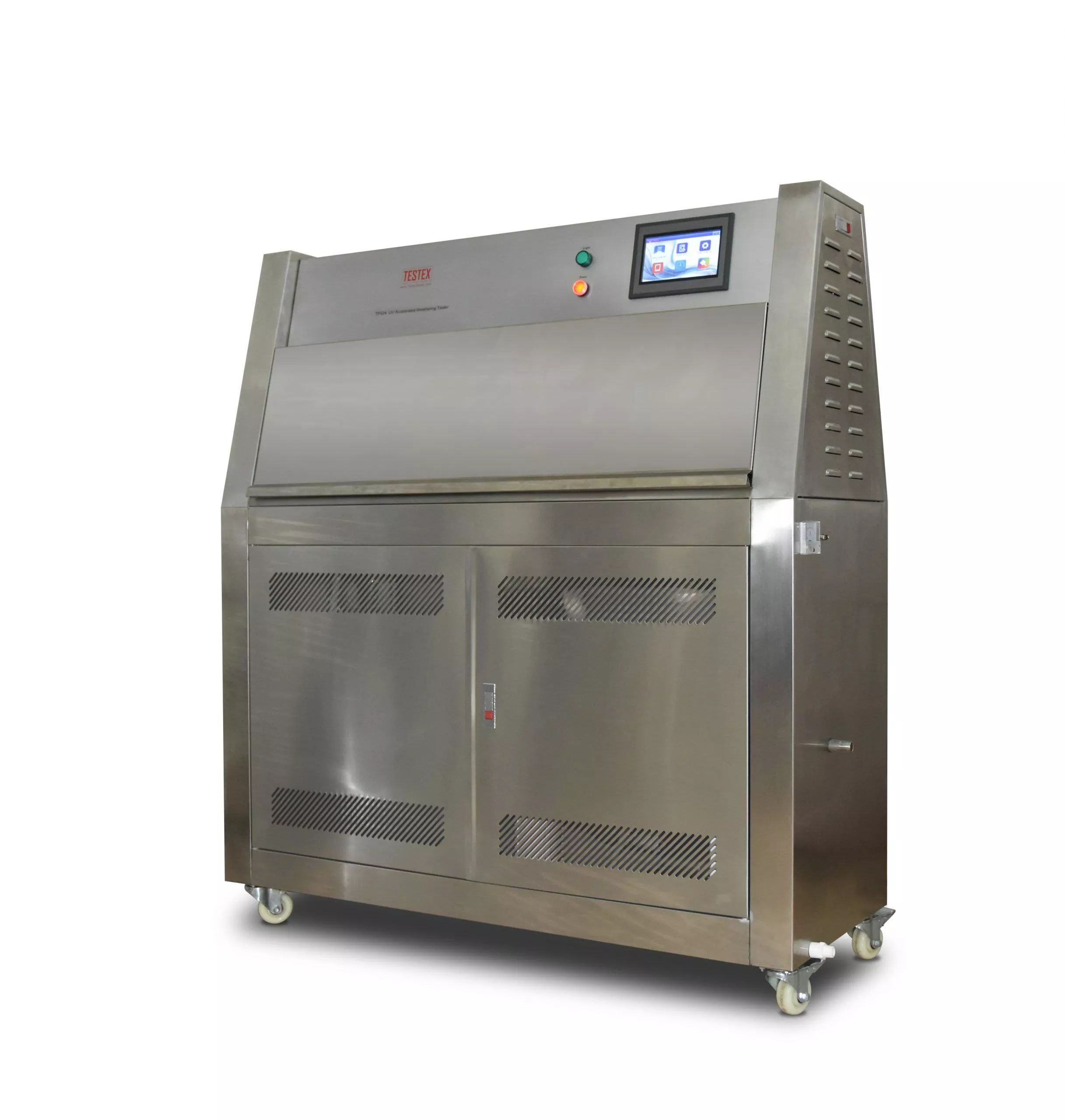

UV Accelerated Weathering Tester TF424

UV Accelerated Weathering Tester, age tester, to simulate the testing environment of sunlight, rain, and dew to reproduce the effect of sunlight with fluorescent ultraviolet lamps, providing rain and dew with condensing humidity. The aging of the specimens is accelerated by exposing the samples to alternating cycles of light and moisture at a certain temperature.

UV light Accelerated Weathering tester complies with standards like SAE 2020, ISO 4892-3, ASTM G154, ISO 11507, GB/T 14522.

Application:

UV Accelerated Weathering Tester, reproduces sunlight, rain and dew to simulates the effect of sunlight with fluorescent ultra violet lamps, simulating rain and dew with condensing humidity. To Accelerating age specimens by exposing them to alternating cycles of light and moisture and controlled elevated temperatures.

Specification:

• UV lamps: UVA-340, 40 W, 8 pcs
• PLC control and Touch screen display
• Temp. Range: R.T. + 10 ~ 70°C
• Related Humidity: 75 ~ 95 %R.H.
• Condensation Temp.: 40°C ~ 60°C
• Lifetime of lamps: more than 1200 hours
• Wavelength: UVA340 295 ~ 365 nm
• Interior material: SUS304 stainless steel
• Safety Insurance: Overheat and power overload protection

Accessories:

Optional Accessories: UVA-340 UV lamp; amplitude meter

Weight:
150 Kg

Power:
220 V, 50 Hz, 20 A

Dimension:
Length: 1480 mm, Width: 560 mm, Height: 1450 mm

Standards:
SAE 2020, ISO 4892-3, ASTM G154, ISO 11507, GB/T 14522

Model

TF424

Country of origin

China
