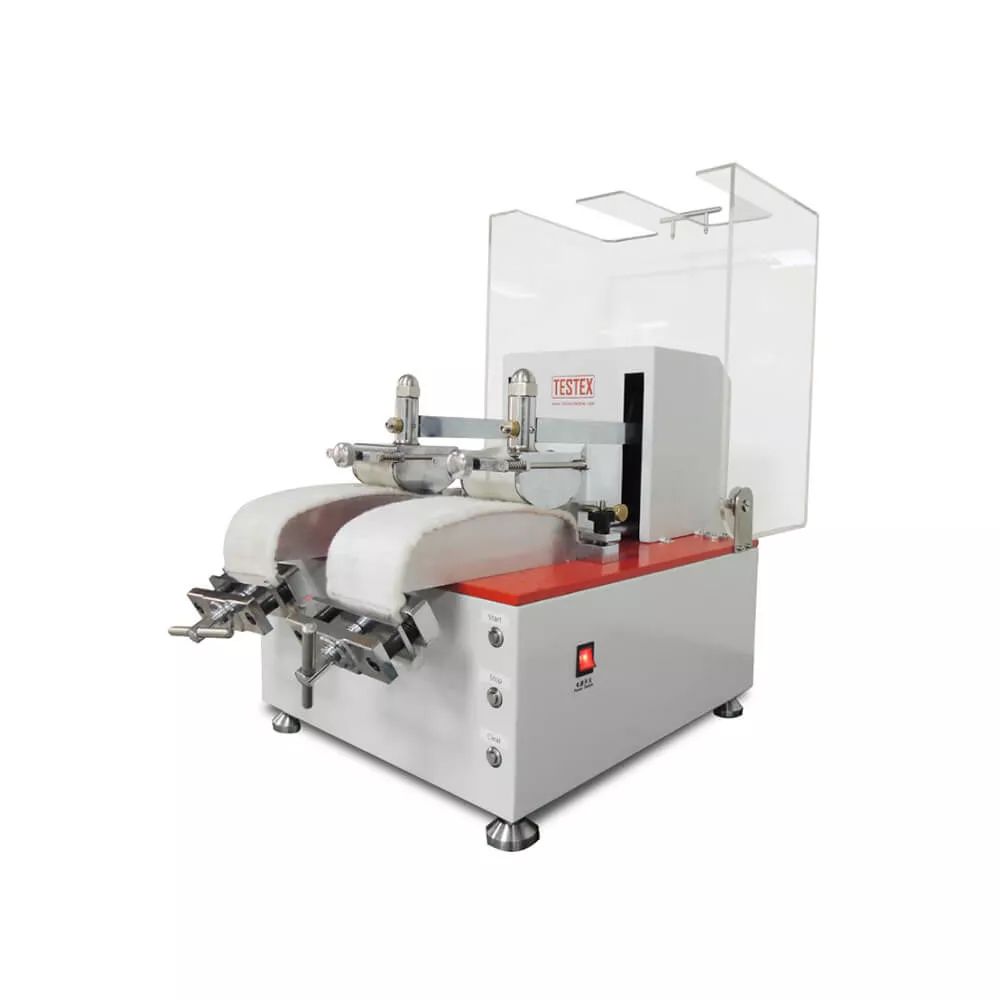

MIE Abrasion Tester TF216

MIE Abrasion Tester, is to determine the wear resistance of textiles used for the automobile such as the interior material made of woven, knit, composite, coated fabrics by rubbing against an abrasive cloth.MIE Abrasion Tester complies with Renault – PSA D44 1073.

Application:

MIE abrasion tester is professional designed to determine the wear resistance of textile in automotive industry.The MIE abrasimeter determines the wear resistance of textiles (woven, knitted, composite, plastic or coated textile lining skin) by friction. There are 2 x 2 test positions, and each pair of tests can be performed at the same time. The structure is simple and the operation is convenient.

Specifications:

2 x 2 test positions. Each pair of tests runs at the same time
The 2 couples can perform tests independently or simultaneously
Large Touch panel to program or monitor the duration of each test station test program for each cycle speed, etc.
Rubbing table is 90 +/-1 width
Rubbing stroke is 150 mm
Rubbing speed is 30cpm
Standard Accessories
Sampling plate
Abrasion head: 5kg
Weight: 2kg
Standard
Renault – PSA D44 1073

Power:

220 / 110 V 50 / 60 Hz 3 A

Weight:

65 kg

Dimensions:

450 x 620 x 520 mm (L x W x H)

Model

TF216

Country of origin

China
