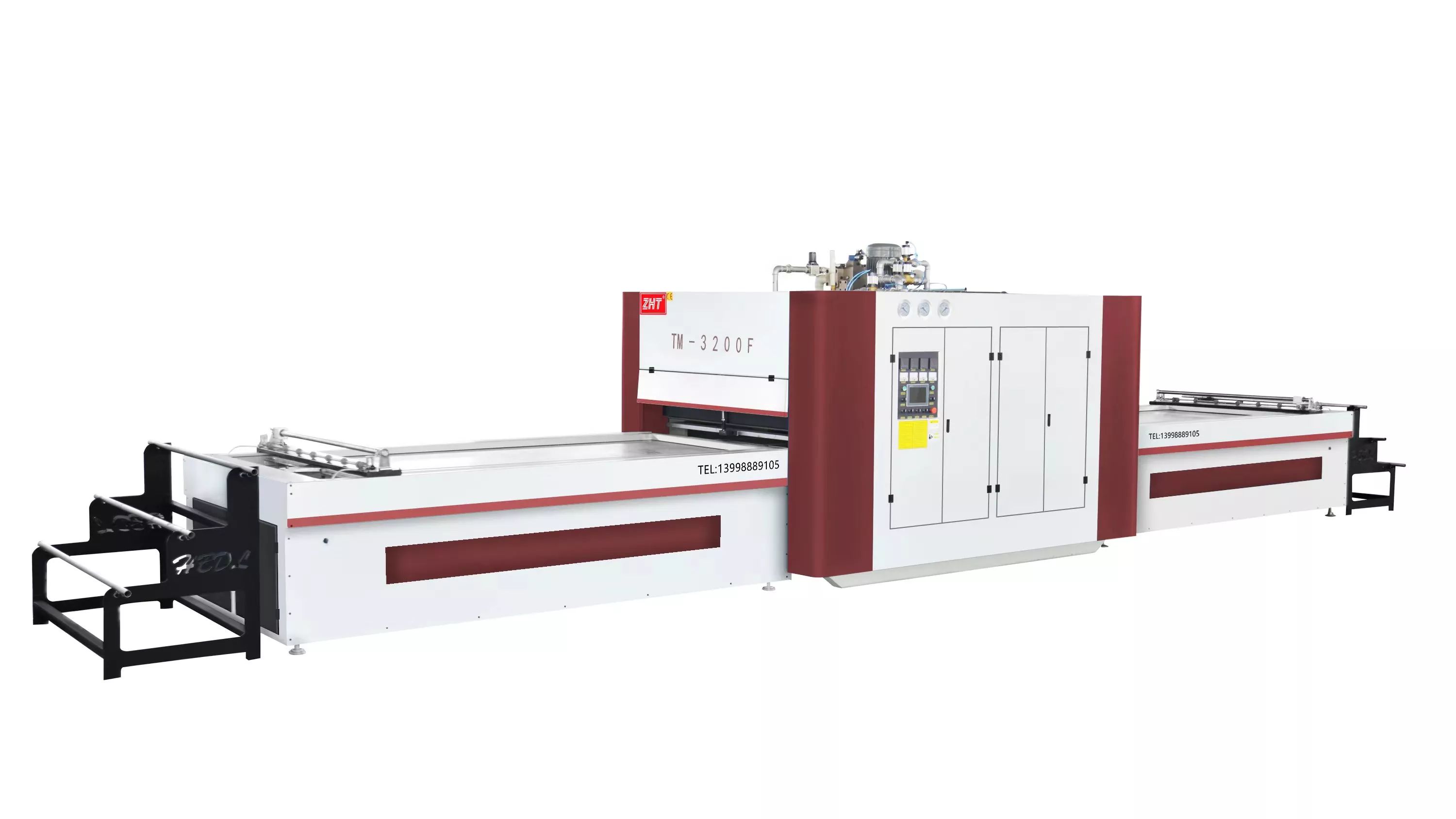

Double (Two Tables) Station Vacuum Membrane Press
Dimension 12300mm×2480mm×2150mm
Bed dimension 3200mm×1270mm
Maximum machining height 50mm
Rated working pressure positive pressure≤0.6Mpa negative pressure≥-0.095Mpa
Total power 35Kw
Actual power consumption 12Kw (Save energy consumption more than 2 times)
Total weight 19T
Voltage Three-phase 380v 50HZ
Features:
1. Fast speed: the working period of ordinary workpiece is less than 2 minutes after it enters the main machine, which is 2-4 times of the efficiency of common positive and negative pressure membrane pressure equipment.

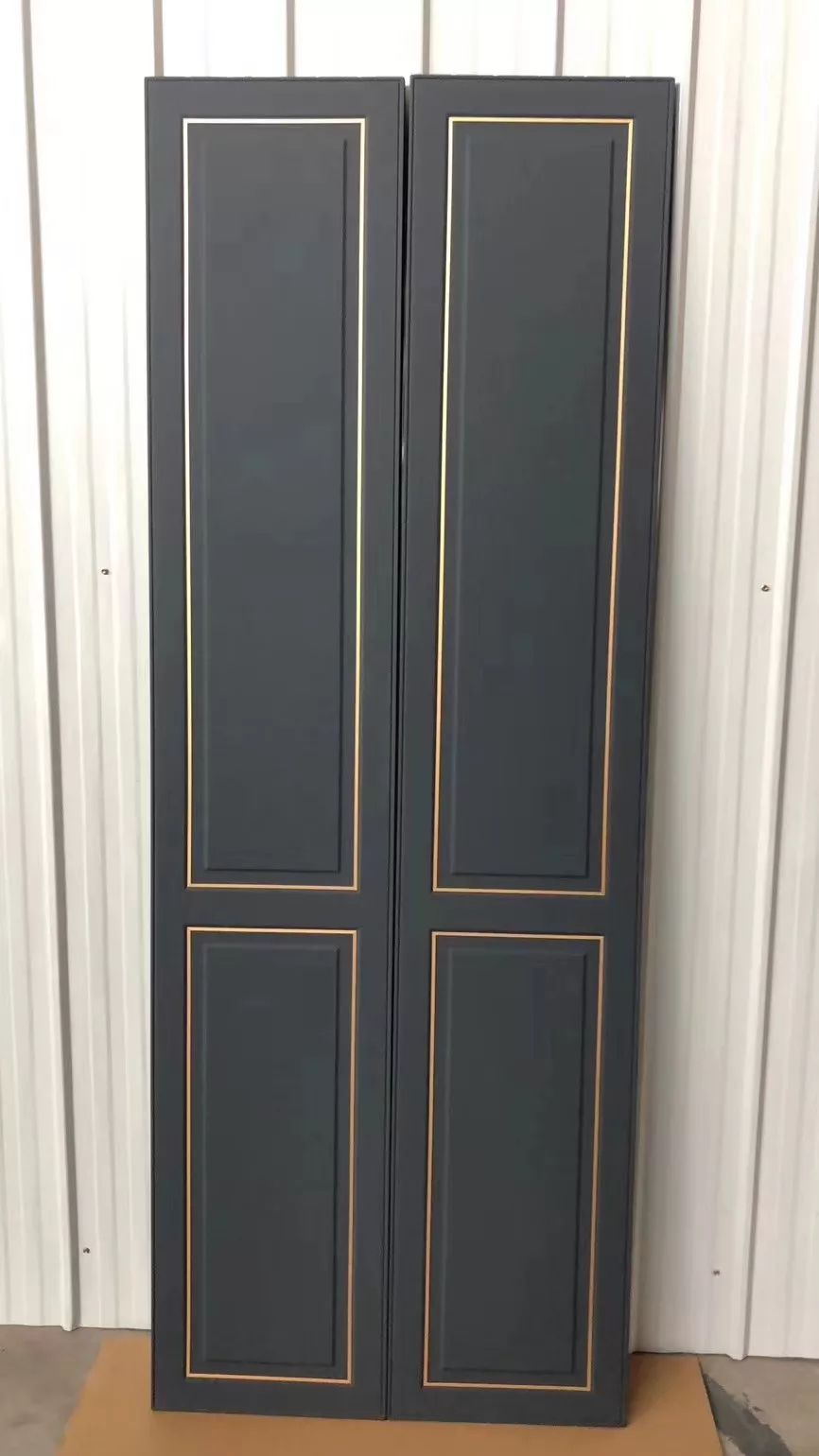

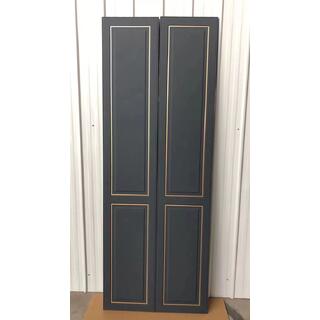

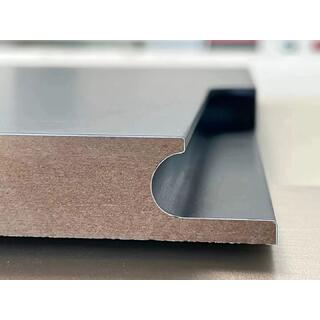

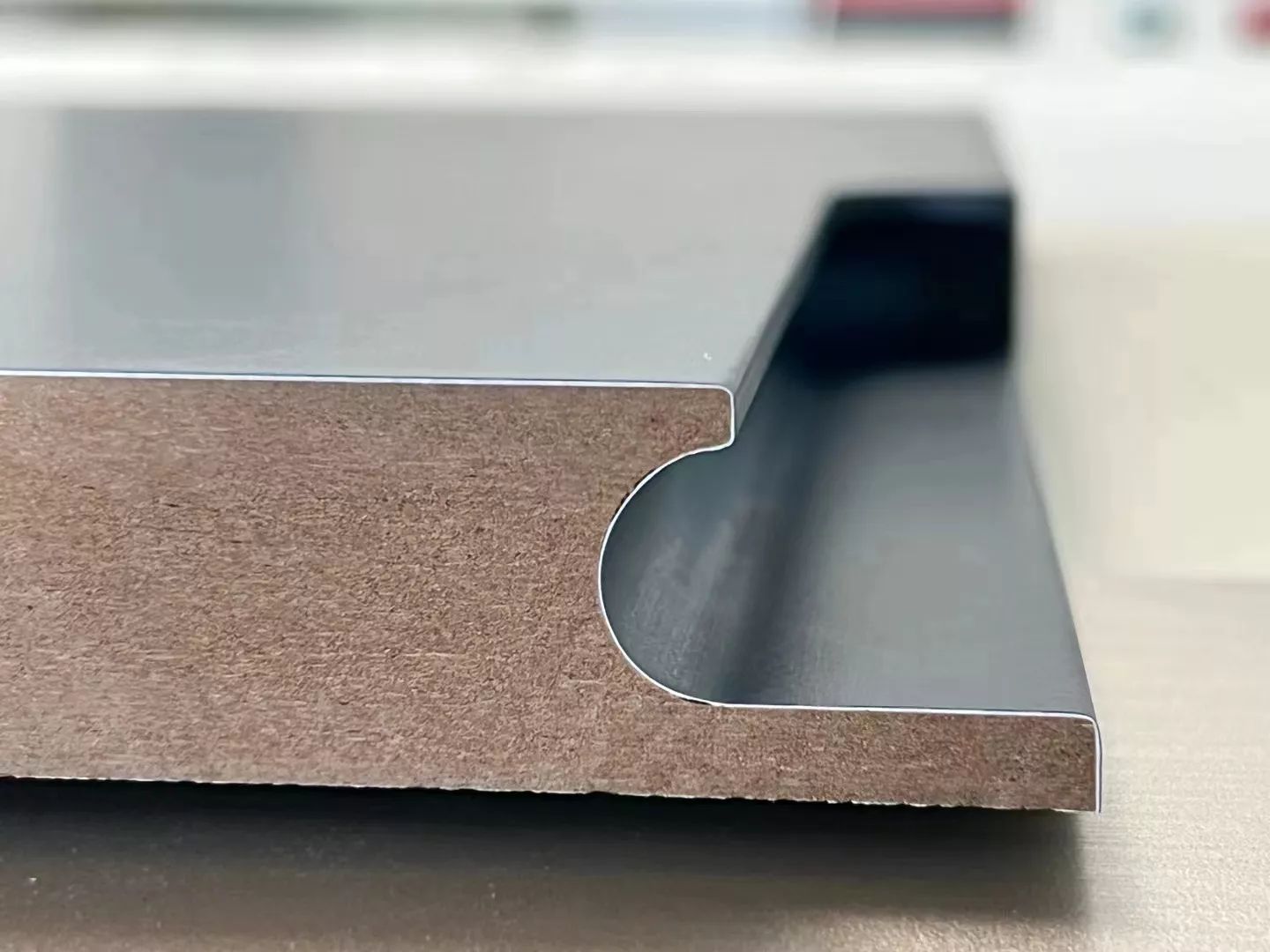

2. Good effect: the product processed by common film has clear groove, no open side, bubbling, no color difference, and high light working surface has strong adhesion, and the effect reaches the international leading level.
3. Low energy consumption: the total power of the machine is 18KW, which is one half of that of the peer equipment; The main heating starting power is 15KW, and the average power consumption is 8KW/h.
4. High configuration: the key part of the machine adopts original parts from Germany, Japan and Taiwan, which is high configuration and stable performance.
Technical Parameter:
Dimensions: 12300mm×2480mm×2150mm
Bed dimension: 3200mm×1270mm
Maximum machining height: 50mm
Rated working pressure: positive pressure≤0.6Mpa negative pressure≥-0.095Mpa
Total power: 35Kw
Actual power consumption: 12Kw (Save energy consumption more than 2 times)
Total weight: 19T
Voltage: Three-phase 380v 50HZ
Hardware Configuration:
Frame: whole steel plate
Number of cylinders: 8
Cylinder diameter: 180mm
Cylinder structure: solid
Cylinder stroke: 200mm
Hydraulic system: Taiwan
Heating system: Electric heating (nanotechnology)
Vacuum pump (import): SV100
Relay (import): Schneider
Equipment maintenance:
Every 3-6 months, the vacuum pump changes oil once, and the filter is cleaned every 15 working days;
How it works:
This machine adopts human-computer interface, easy to understand and operate, automatic double-station machine
• Workbench rise up
• Add hydraulic pressure
• Warming
• Vacuum negative pressure
• Punch positive pressure
• Unloading positive pressure
• Unloading negative pressure
• Unloading hydraulic
• Workbench descend
• Flipped board sucking sample up
This process is automatically completed by one-click!
Silicone plate life:
The silicone plate is imported from Korea and can be used for 3-4 months (about 1000 hours) and can be repaired. (This accessory is not covered by the warranty)
Working period about 120 seconds after it enters the main machine
Warranty:
1. In order to ensure that the demander can use the equipment normally, the warranty period is one year, except for consumables (pressure buckle, gas strut). The supplier will provide free warranty service during the warranty period, non warranty period provide free consultation and troubleshooting for repair, maintenance. The warranty period is calculated from the day when the equipment is shipped.
2. The warranty does not include: damage caused by man-made and natural disasters. (such as fire, flood, earthquake)
3. If the equipment occurs error, The supplier shall provide free qualified parts and maintenance during the warranty period; outside the warranty period, the supplier shall provide the demand at a preferential price for a long time. The cost incurred by the supplier for maintenance shall be settled by both parties through negotiation
4. The supplier shall provide technical support to the demander to install and debug the equipment, and train the demander's personnel in practical operation, processing and maintenance.
- Brand
- ZHT
- Model
- TM3200F
- Country of origin
- China
