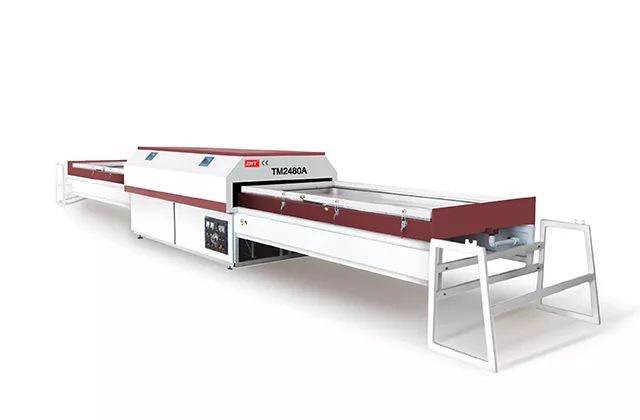

TM2480A PVC Foil Vacuum Membrane Press Machine
Various PVC film can be pasted on furniture, cabinets, acoustics, process doors, decoration wallboard, etc., and can be used for heat transfer film and veneer after the installation of silicone plate.
Features:
The machine is operated manually, the heating chamber is not moving, the work table pushes in and out!
The vacuum control USES the electric contact vacuum gauge and automatically controls the vacuum pressure.The microcomputer temperature controller can automatically search the temperature change speed and adjust the heating speed to control the temperature accurately.
The machine is standard equipped with domestic top 2X series vacuum pumps, with good stability and easy maintenance.(can be equipped with vacuum pump imported from Germany with strong power and low failure rate.)
Note: 1. This machine can be configured with highlight function.
2. This machine can celect imported pump
Technical parameter:
Dimensions: 8800mm x1500mm x1600mm
B ed dimension: 2550mm x1100(1300)mm
Rated working pressure: negative pressure ≥-0.095Mpa
Total power: 15KW
Actual power consumption: 5KW
Total weight: 2T
- Brand
- ZHT
- Model
- TM2480A
- Country of origin
- China
