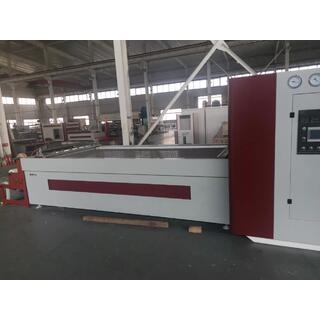

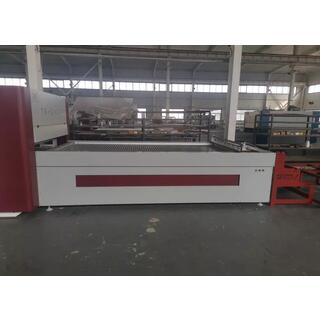

Hot Woodworking Automatic Vacuum Membrane Press Machine
Features:
1. Fast speed: the working period of ordinary workpiece is less than 2 minutes after it enters the main machine, which is 2-4 times of the efficiency of common positive and negative pressure membrane pressure equipment.

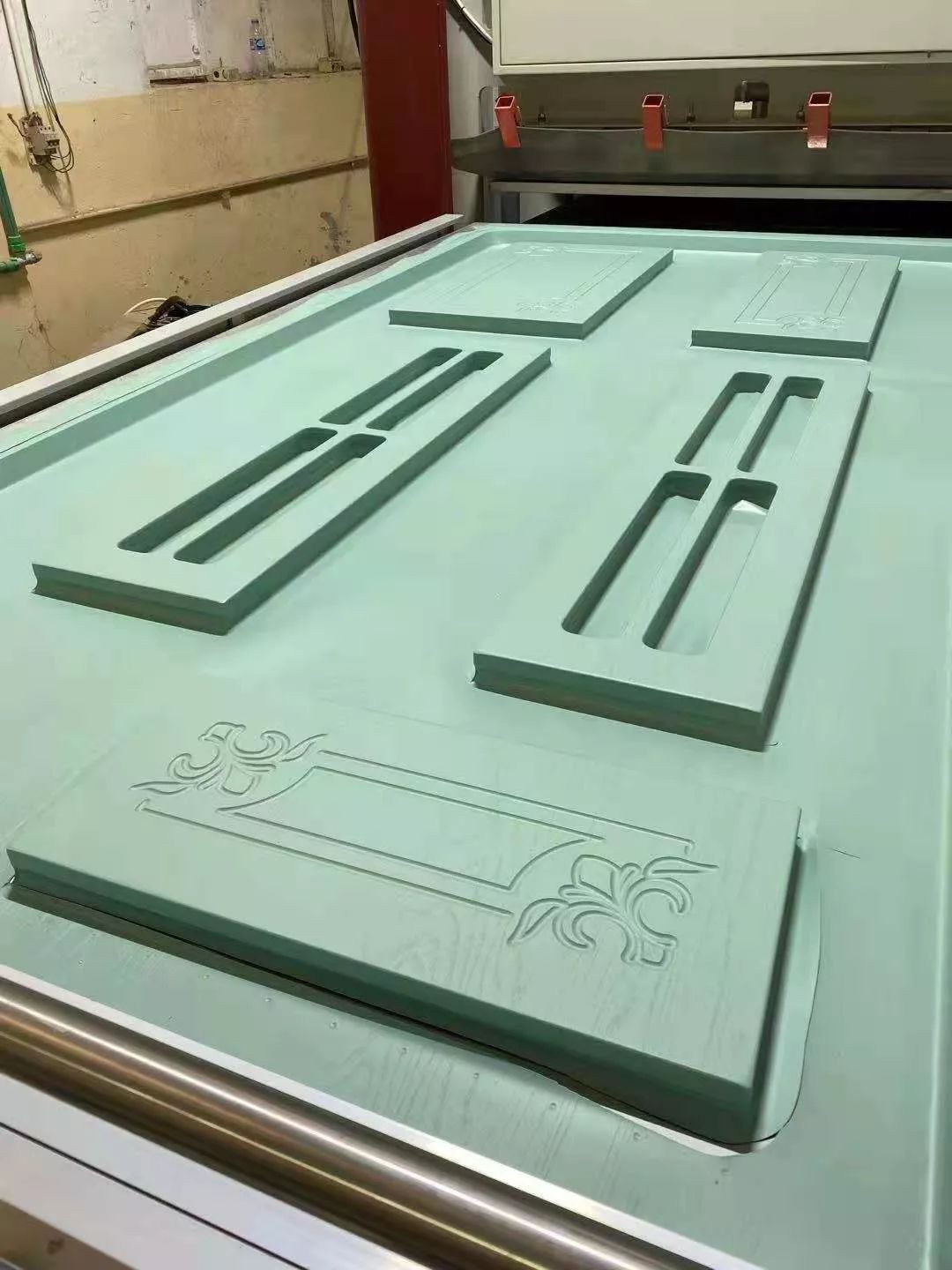

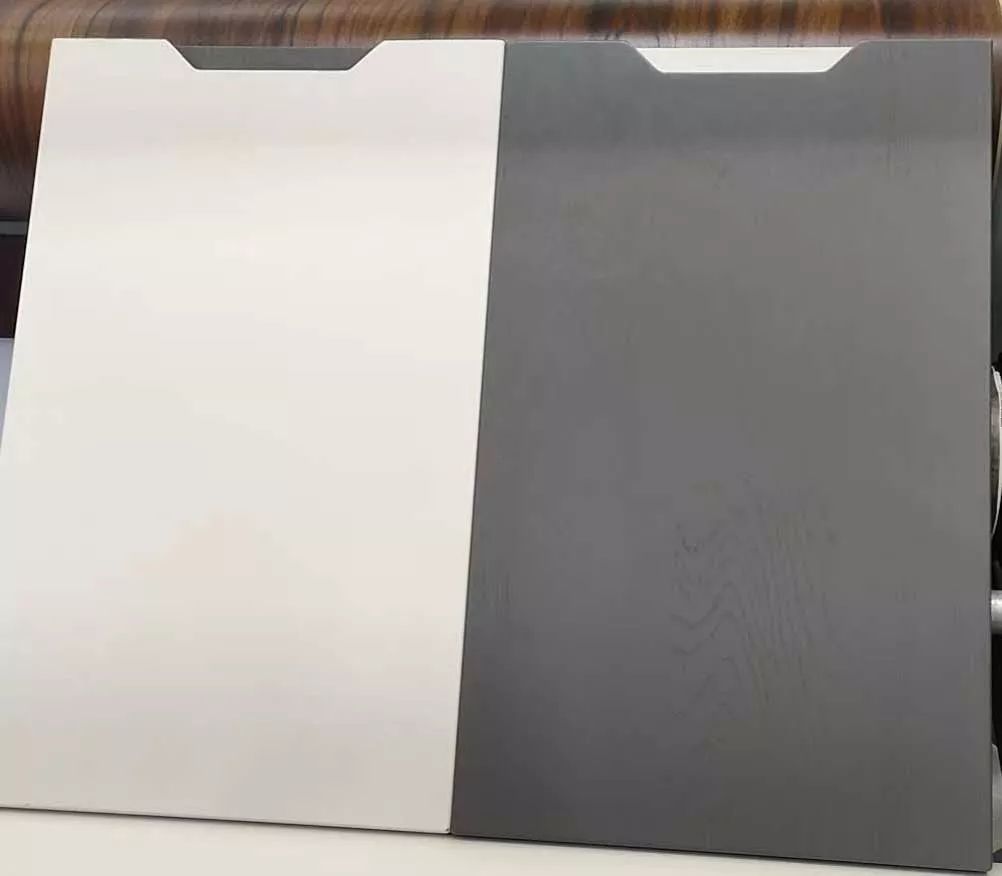

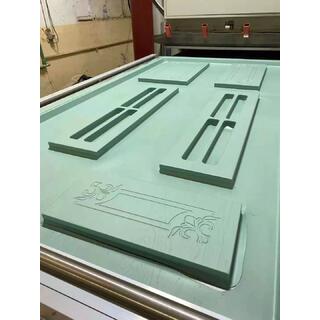

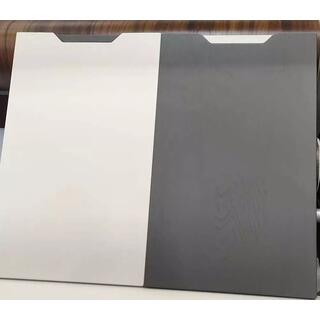

2. Good effect: the product processed by common film has clear groove, no open side, bubbling, no color difference, and high light working surface has strong adhesion, and the effect reaches the international leading level.
3. Low energy consumption: the total power of the machine is 18KW, which is one half of that of the peer equipment; The main heating starting power is 15KW, and the average power consumption is 8KW/h.
4. High configuration: the key part of the machine adopts original parts from Germany, Japan and Taiwan, which is high configuration and stable performance.
Technical parameter:
Dimensions: 11200mm×2480mm×2150mm
Bed dimension: 2560mm×1270mm
Maximum machining height: 50mm
Rated working pressure: positive pressure≤0.6Mpa negative pressure≥-0.095Mpa
Total power: 28Kw
Actual power consumption: about 10kw
Total weight: 14T
Power: 380V 50HZ
Hardware Configuration:
Rack: The whole steel plate is cutting
Diameter of oil tank: 180mm
Cylinder structure: Solid
Cylinder stroke: 200mm
Hydraulic system: TaiWan
Heating method: Electrical heating (nano technology)
Vacuum pump(import): SV100
Relay(import): Schneider
Upgrade improvements:
1. The equipment uses imported solid core diameter 180mm cylinder to prevent oil leakage.
2. The frame is made of manganese steel plate and sandblasted to enhance corrosion resistance and load bearing.
3. The lifting balance system is easy to adjust, and the rise and fall are more stable.
4. Hydraulic system oil port improvement and maintenance is more convenient.
5. The aluminum frame is processed by one body, and no weld seam increases the strength.
How it works:

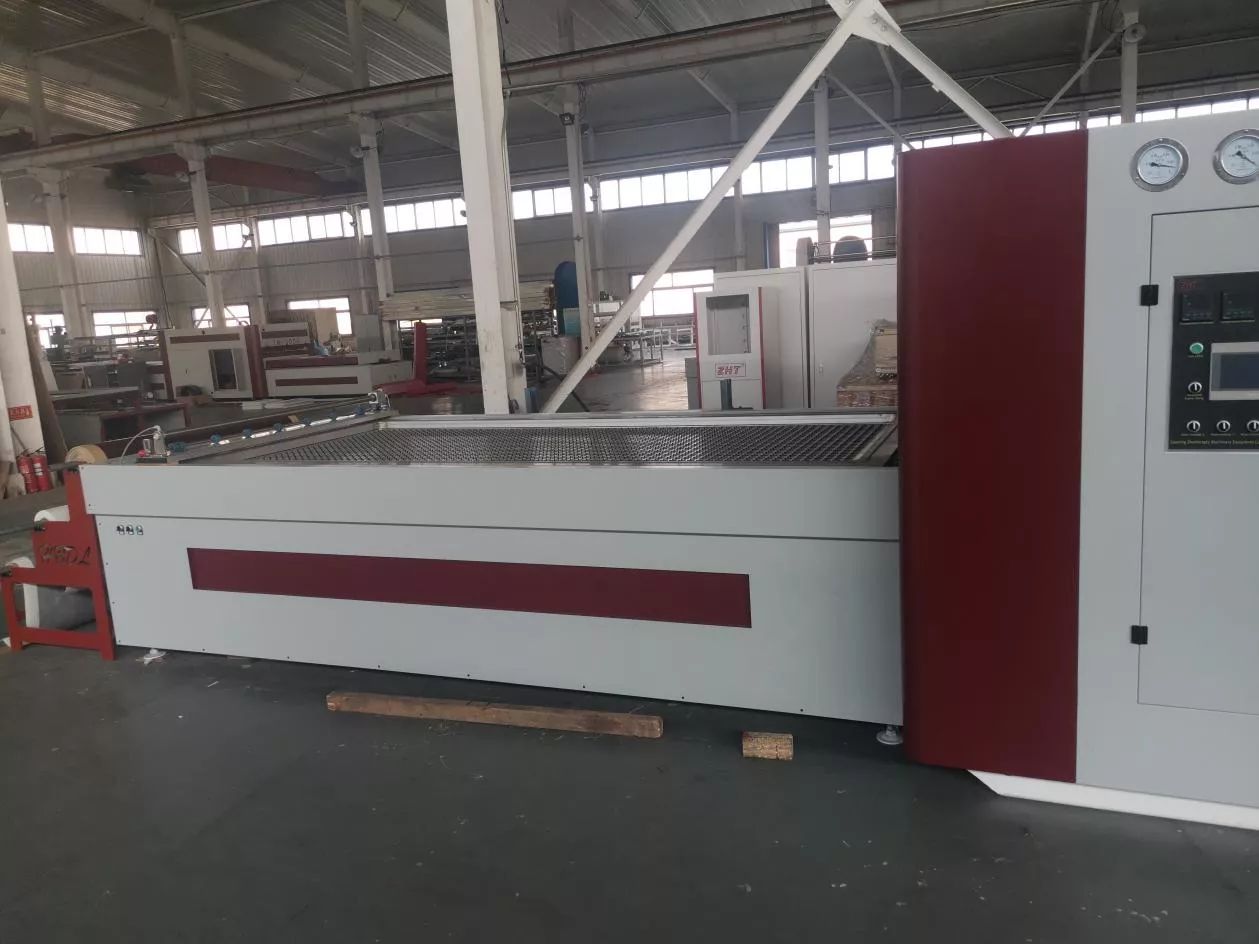

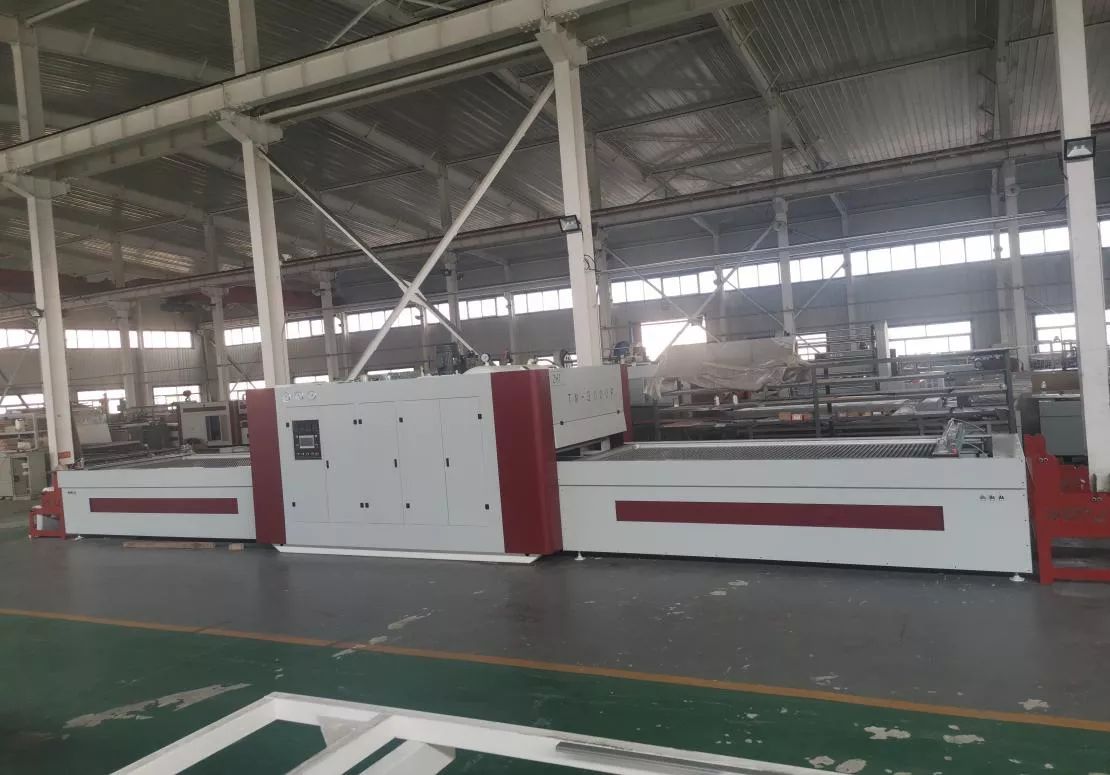

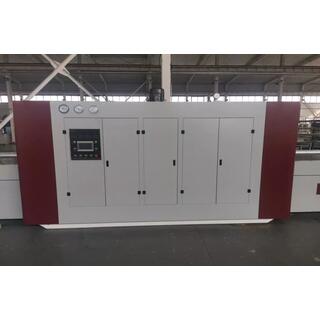

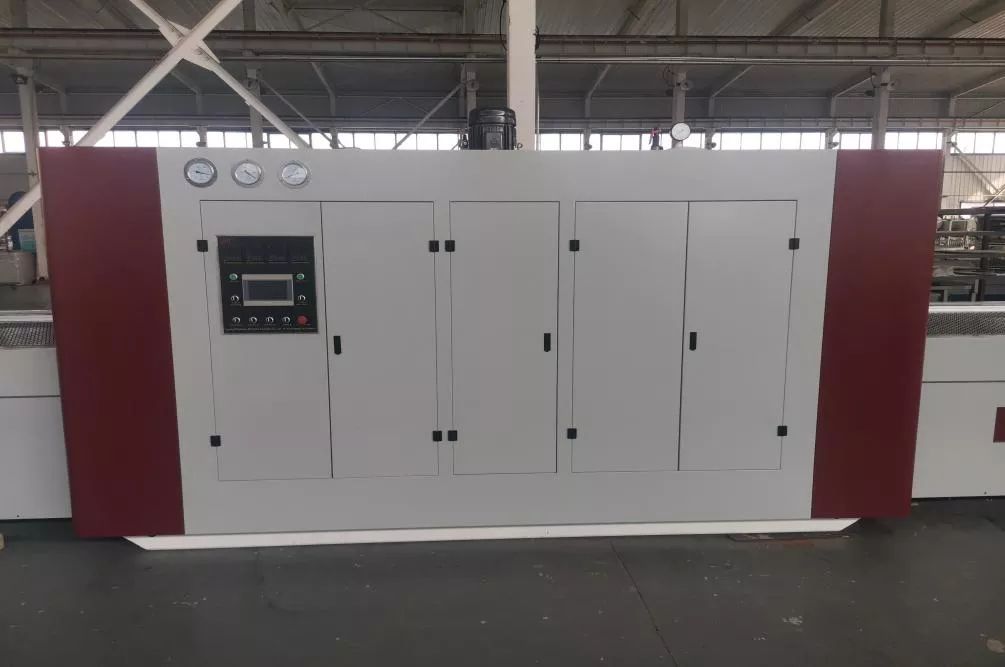

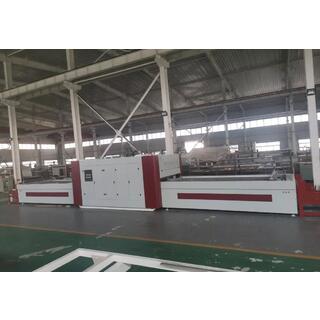

This machine adopts human-computer interface, easy to understand and operate, automatic double-station machine.
1. Preheating equipment

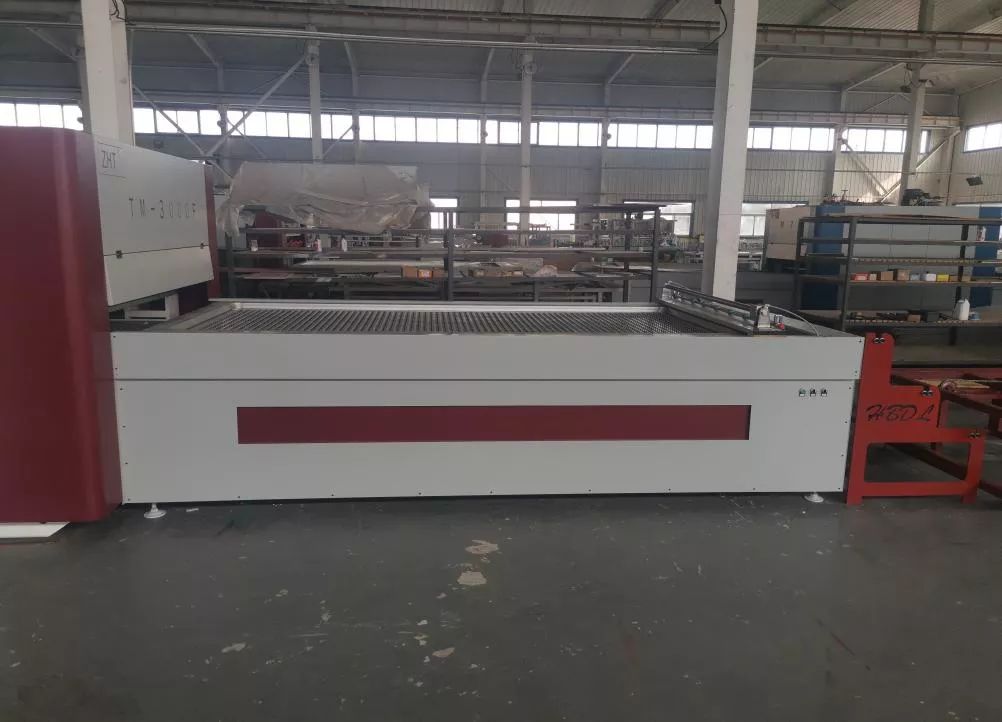

2. Put product on the workbench

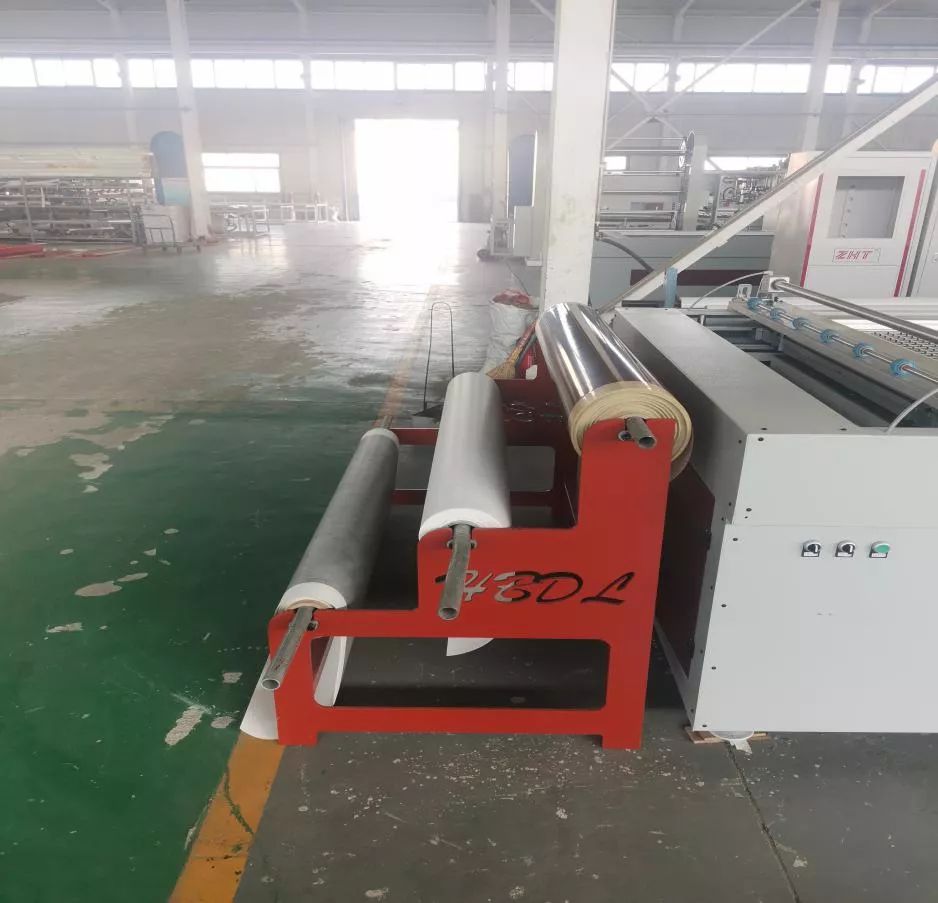

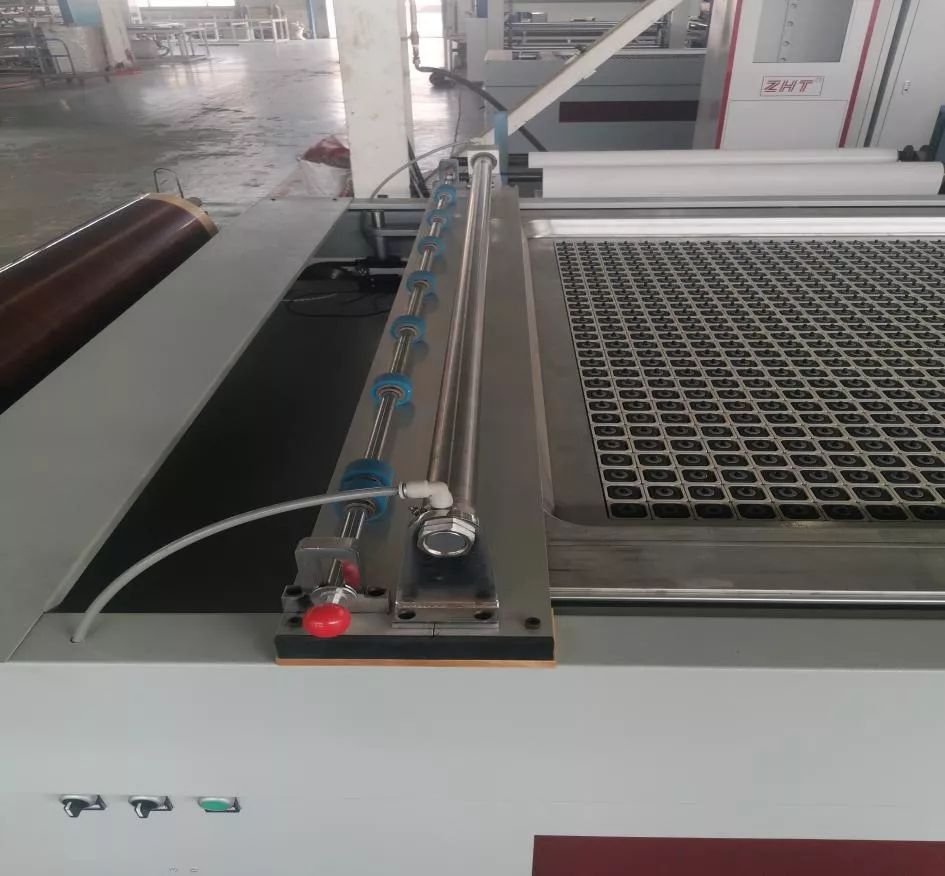

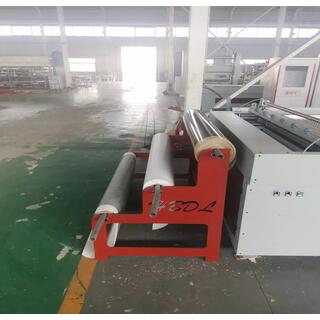

3. Pull the PVC membrane and cover cabinet door

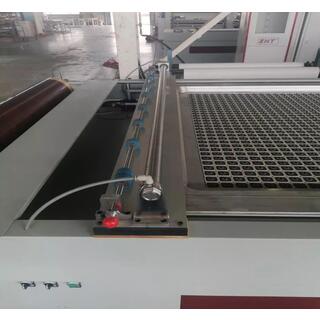

4. Cutting membrane
5. Enter the machine
6. The membrane floating up and heating
7. Vacuum plus negative pressure plus positive pressure
8. Release of positive and negative pressure
9. Unloading hydraulic
10. Drop workbench
11. Workbench out
12. Work end
- Brand
- ZHT
- Model

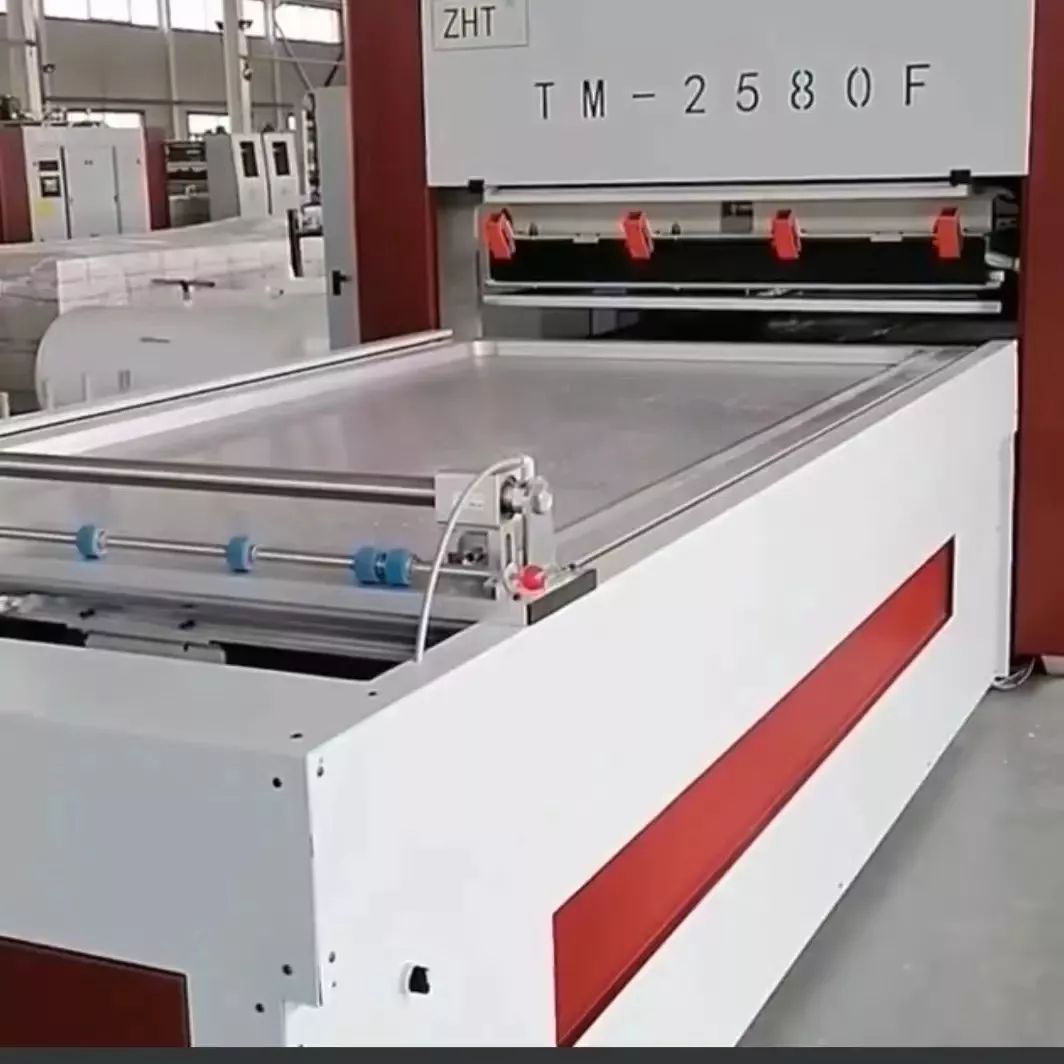

- TM2580F
- Country of origin
- China
