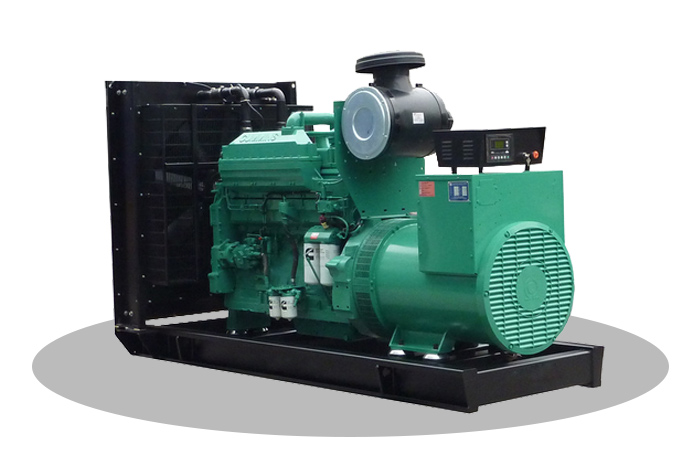

DCEC Open 450KW Diesel Generator Set

• Advanced design and sophisticated manufacturing adapt to harsh working conditions, high-intensity, strong ability to work under heavy loads.
• Integrated design: Cylinder block, cylinder head and other parts have "one piece with multiple functions", which reduces the number of connecting parts. The parts are 40% less than other similar engines, and the failure rate is greatly reduced.
• Excellent power performance The maximum output power can reach 500Kw, and the maximum output torque is 2990N.m, ensuring sufficient power under various usage conditions.
• Lower emissions The use of in-flight purification solutions can meet the needs of hospitals, schools and other places with stricter emission requirements.

Length(mm): 3450
Width(mm): 2100
Height(mm): 1450
Weight(kg): 4350
Generator set model: QKGF-CKKJ-450
Rated power(KW): 450
Actual power(KW): 427.5
Oil consumption(L): 72
Operational duration(H): 72
Overhaul period(Operating hours): 3000
Warranty period(Operating hours): 500
Life expectancy(year): 20
Noise(db): 105
Start mode: LCD screen button auto start
Stop mode: automatic shutdown of LCD button
Battery matching: 150A*2
Fuel tank(L): 1000
Protective function: multifunctional protection
Display method: liquid crystal
proposed price（￥）: 223200

Engine comparison:

Engine brand: DCEC
Engine model: QSZ13-G3
Common power(KW): 450
Standby power(KW): 470
Bore/stroke(mm): 130*163
Number of cylinders: 6
Cylinder arrangement: inline
Inlet and exhaust method: supercharge
Speed mode: electronics
Rated fuel consumption(g/KW.h): 193

Brand

DCEC

Model

QKGF-CKKJ-450
