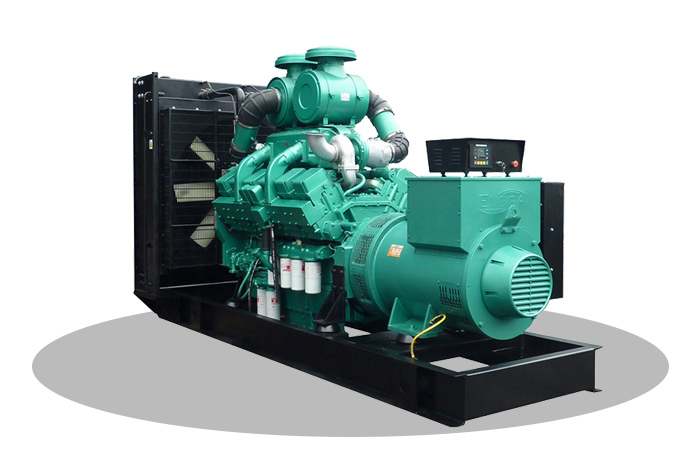

CCEC Open 1000 KW Diesel Generator Set

• Cummins patented PT fuel system with super high injection pressure ensures good engine atomization and full combustion.
• The efficient Holset exhaust gas turbocharger can ensure full intake, improve engine efficiency, further improve combustion, and reduce engine specific fuel consumption.
• Both the cylinder block and the cylinder head adopt a built-in pressure lubricating oil passage, which has a compact structure and low failure rate.
• Cylinder head: Four-valve design per cylinder, optimized air/fuel mixture ratio, effectively improving combustion and emissions; one head per cylinder, easy maintenance.

Length(mm): 5100
Width(mm): 2550
Height(mm): 2100
Weight(kg): 9200
Generator set model: QKGF-CKKJ-1000
Rated power(KW): 1000
Actual power(KW): 950
Oil consumption(L): 160
Operational duration(H): 72
Overhaul period(Operating hours): 3000
Warranty period(Operating hours): 500
Life expectancy(year): 20
Noise(db): 105
Start mode: LCD screen button auto start
Stop mode: automatic shutdown of LCD button
Battery matching: 200A*4
Fuel tank(L): 2000
Protective function: multifunctional protection
Display method: liquid crystal
proposed price（￥）: 1009500

Engine comparison:

Engine brand: CCEC
Engine model: KTA50-G3
Common power(KW): 1097
Standby power(KW): 1227
Bore/stroke(mm): 159*159
Number of cylinders: 16
Cylinder arrangement: V column
Inlet and exhaust method: supercharge
Speed mode: electronics
Rated fuel consumption(g/KW.h): 202

Brand

CCEC

Model

QKGF-CKKJ-1000
