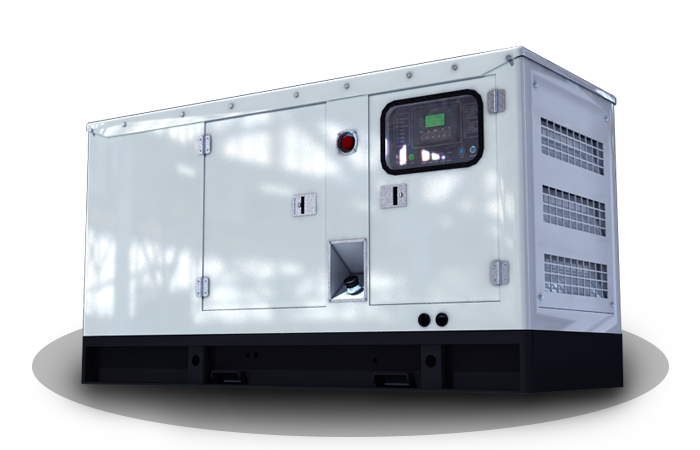

Yuchai Silent 1000 KW Diesel Generator Set

• It adopts high-strength alloy cast iron body, forged steel crankshaft, and break connecting rod. It has been fully verified by the market for many years and has high reliability.
• Equipped with advanced and mature BOSCH electronic control common rail + high-efficiency supercharged intercooling technology, the fuel injection volume is accurately controlled, and the air intake is sufficient to ensure that the diesel engine has suffic
• Leading turbocharged intercooling, four-valve and electronic control technology, the combustion organization is accurate and rapid, the emission is good, the transient response performance is good, and the loading capacity is strong.
• Using two-stage filter diesel filter with alarm function, the operation is more secure.

Length(mm): 6300
Width(mm): 3000
Height(mm): 2100
Weight(kg): 15200
Generator set model: QKGF-YCJY-1000
Rated power(KW): 1000
Actual power(KW): 900
Oil consumption(L): 164
Operational duration(H): 48
Overhaul period(Operating hours): 2000
Warranty period(Operating hours): 400
Life expectancy(year): 15
Noise(db): 88
Start mode: LCD screen button auto start
Stop mode: automatic shutdown of LCD button
Battery matching: 200A*4
Fuel tank(L): 200
Protective function: multifunctional protection
Display method: liquid crystal
proposed price（￥）: 880800

Engine comparison:

Engine brand: Yuchai
Engine model: YC12VC1680-D31
Common power(KW): 1000
Standby power(KW): 1100
Bore/stroke(mm): 200*210
Number of cylinders: 12
Cylinder arrangement: V column
Inlet and exhaust method: supercharge
Speed mode: electric control
Rated fuel consumption(g/KW.h): 210

Brand

Yuchai

Model

QKGF-YCJY-1000
