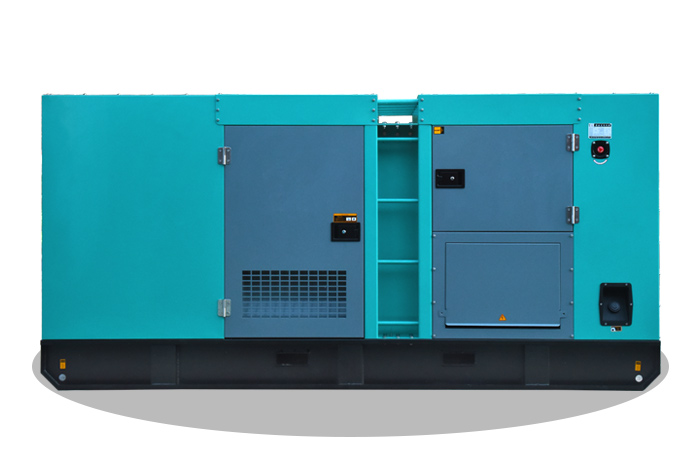

Weichai Silent 1000 KW Diesel Generator Set

• The mid-mounted downturn supercharger is used to optimize the intake and exhaust pipelines, and the air intake is more smooth.
• Shaped air filter, radial seal, rear end arrangement, cleaner air intake, more compact structure, and convenient filter element replacement.
• The plateau has good adaptability, adapting to 3000m altitude; strong regulatory adaptability, meeting non-road phase II emissions.
• Good maintenance, small width and height dimensions, light weight; split cylinder head, easy maintenance.

Length(mm): 5900
Width(mm): 2750
Height(mm): 2500
Weight(kg): 11000
Generator set model: QKGF-WCJY-1000
Rated power(KW): 1000
Actual power(KW): 900
Oil consumption(L): 168
Operational duration(H): 48
Overhaul period(Operating hours): 2000
Warranty period(Operating hours): 400
Life expectancy(year): 15
Noise(db): 88
Start mode: LCD screen button auto start
Stop mode: automatic shutdown of LCD button
Battery matching: 200A*4
Fuel tank(L): 2000
Protective function: multifunctional protection
Display method: liquid crystal
proposed price（￥）: 821800

Engine comparison:

Engine brand: Weichai
Engine model: 12M33D1210E200
Common power(KW): 1100
Standby power(KW): 1210
Bore/stroke(mm): 150*185
Number of cylinders: 12
Cylinder arrangement: V column
Inlet and exhaust method: supercharge medium cold
Speed mode: electronics
Rated fuel consumption(g/KW.h): 210

Brand

Weichai

Model

QKGF-WCJY-1000
