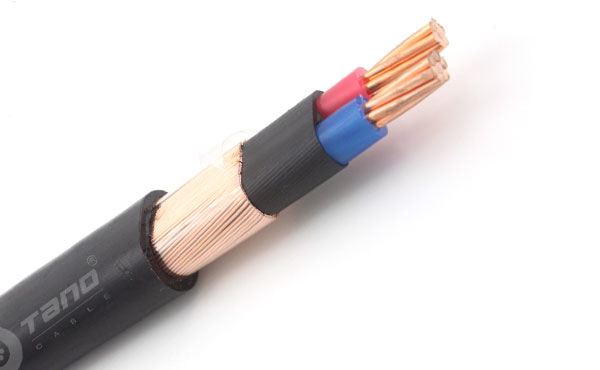

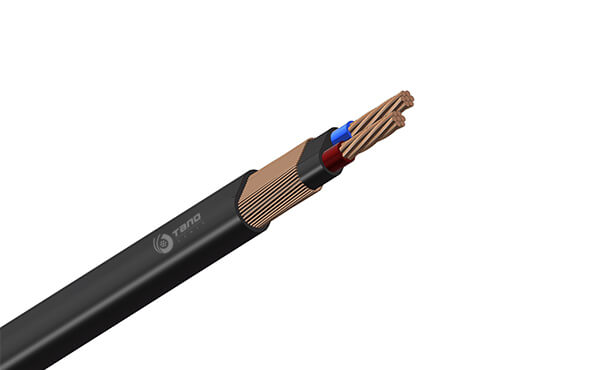

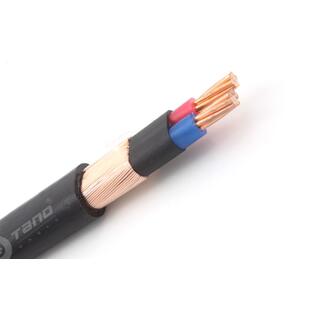

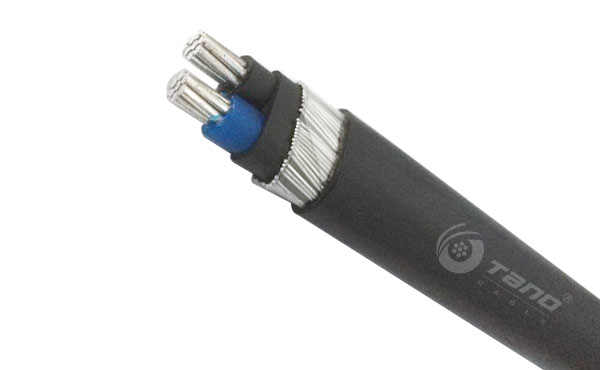

Concentric Cable for Dominica Market
APPLICATION:
The concentric cables are used as electric service entrance from the power distribution network until the meter panel (especially where it is required to prevent "black" losses or electric power robbery), and as feeder cable from the meters panel until the panel or general distribution panel, just as it is specified in the National Electrical Code. This type of conductor can be used in dry and wet places, directly buried or outdoors; its maximum temperature of operation is 90ºC and its voltage of service for all the applications is 600V.
CABLE TYPE:
Type 1: ASTM Standard Circular Type Concentric Cables
SPECIFICATIONS:
ELECTRICAL PERFORMANCE:
0.6/1kV
STANDARD:
ASTM D2655, ASTM B556, ASTM B193, UL 44, UL 1581, ASTM B8, UL 854, NEC Numeral 310.14
APPLICATION:
ELECTRIC ENTRANCE SERVICE
POWER DISTRIBUTION NETWORKS
CORE IDENTIFICATION:
BY COLOR
CHEMICAL PERFORMANCE:
Chemical & UV & Oil resistance:Good
MECHANICAL PERFORMANCE:
Minimum bending radius:x10 cable diameter
FIRE PERFORMANCE:
Flame non-propagation base on IEC 60332-1
THERMINAL PERFORMANCE:
Maximum service temperature:90℃
Maximum short-circuit temperature:250℃(max. 5s)
Minimum service temperature:-40℃
OTHER PROPERTIES:
APPROVALS:
N/A
INSTALLATION CONDITIONS:
OPEN AIR
BURIED
CABLE MARKING:
OIL INK PRINTING
LASER PRINTING
EMBOSSING PRINTING
PACKAGING:
BY ROLL
BY WOODEN OR STEEL-WOODEN REEL/DRUM

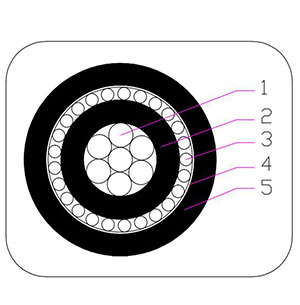

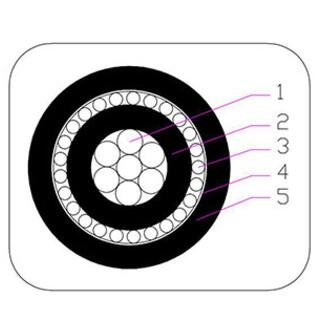

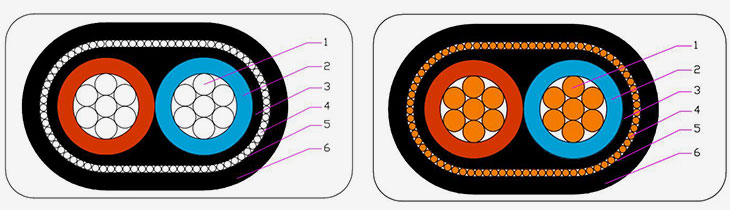

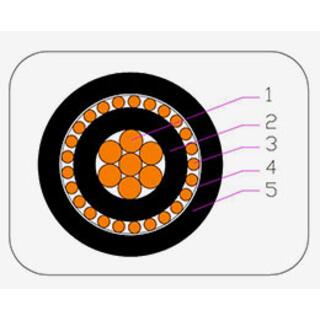

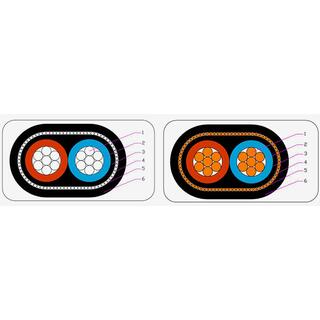

CONSTRUCTION:
1. Conductor:
Copper wire, Aluminum Wire, Aluminum Alloy Wire S8000, Copper Clad Aluminum(CCA)
2. Insulation:
XLPE
3. Neutral Conductor:
Copper wire, Aluminum Wire, Aluminum Alloy Wire S8000, Copper Clad Aluminum(CCA)
4. Binder Tape:
Polyester Tape or Semi-conducting Tape
5. Outer Sheath:
XLPE
- Country of origin
- China
