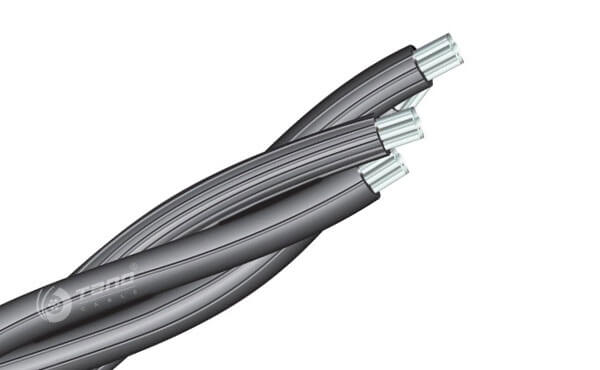

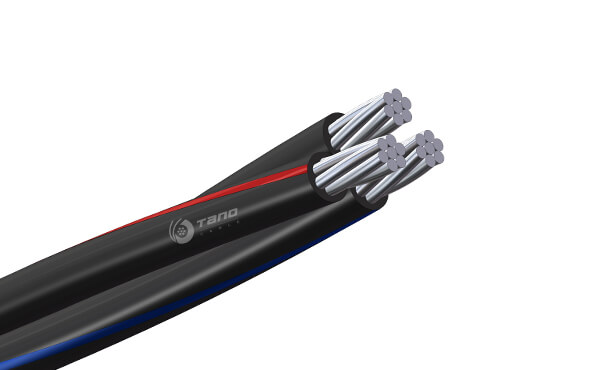

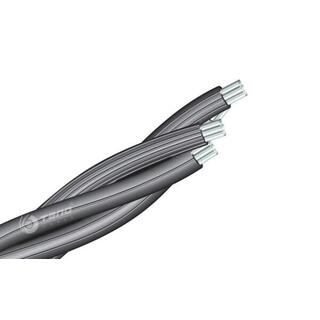

Aerial Bundled Cable AS/NZS 3560.1
APPLICATION:
The aerial bundled cables are used for overhead distribution line and electrical installations with alternating power networks with nominal voltage U0/U 0.6/1kV or in direct power networks with maximum voltage according to land 0.9kV.
STANDARD:
AS/NZS 3560.1
SPECIFICATIONS:
ELECTRICAL PERFORMANCE:
0.6/1kV
STANDARD:
AS/NZS 3560.1
APPLICATION:
DISTRIBUTION LINE
POWER NETWORKS
CORE IDENTIFICATION:
BY COLOR STRIPE
BY RIB
BY NUMBER
CHEMICAL PERFORMANCE:
Chemical & UV & Oil resistance:Good
MECHANICAL PERFORMANCE:
Minimum bending radius:x10 cable diameter
FIRE PERFORMANCE:
N/A
THERMINAL PERFORMANCE:
Maximum service temperature:90℃
Maximum short-circuit temperature:250℃(max. 5s)
Minimum service temperature:-40℃
OTHER PROPERTIES:
APPROVALS:
N/A
INSTALLATION CONDITIONS:
OPEN AIR
BURIED
CABLE MARKING:
OIL INK PRINTING
LASER PRINTING
EMBOSSING PRINTING
PACKAGING:
BY ROLL
BY POLYWOOD OR WOODEN OR STEEL-WOODEN REEL/DRUM

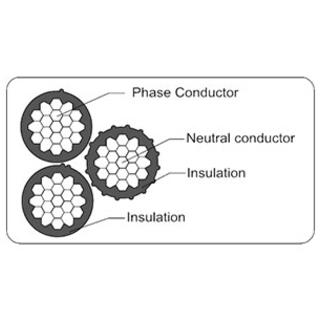

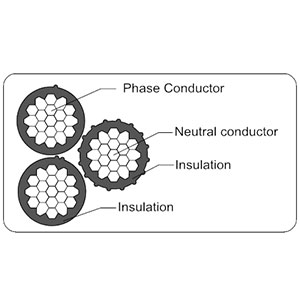

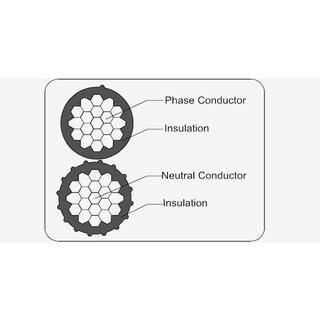

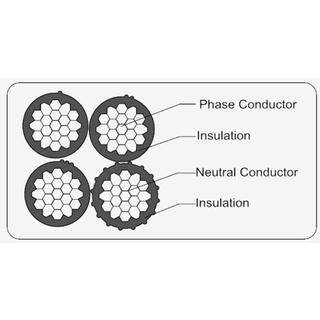

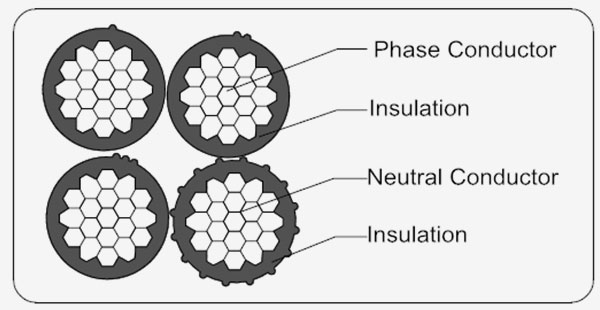

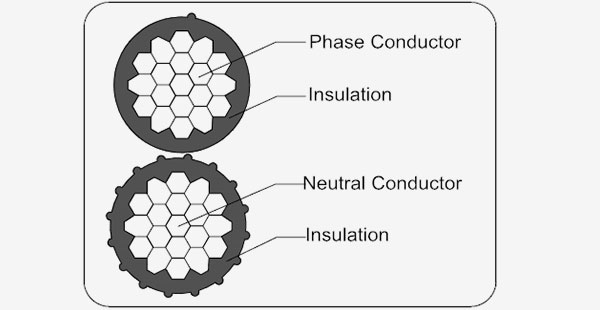

CONSTRUCTION:
1. Phase Conductor
Circular stranded, rounded, compacted aluminum conductor
2. Neutral(Messenger) Conductor
Circular stranded, rounded, compacted aluminum conductor
3. Insulation
Black color Polyethylene(PE) or Cross-linked polyethylene(XLPE)
- Country of origin
- China
