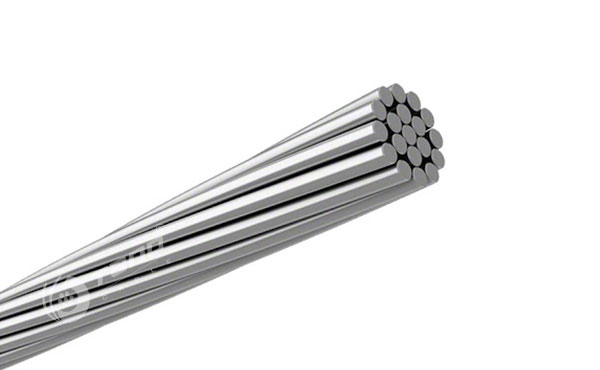

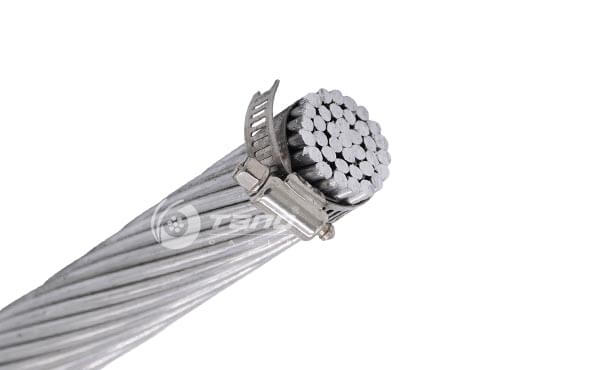

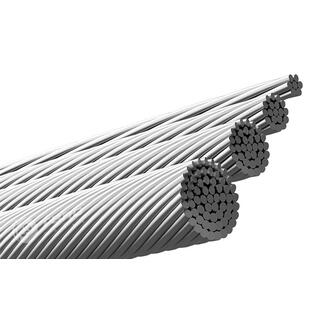

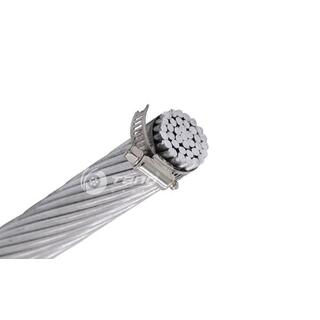

All Aluminum Conductor (AAC)
DESCRIPTION:

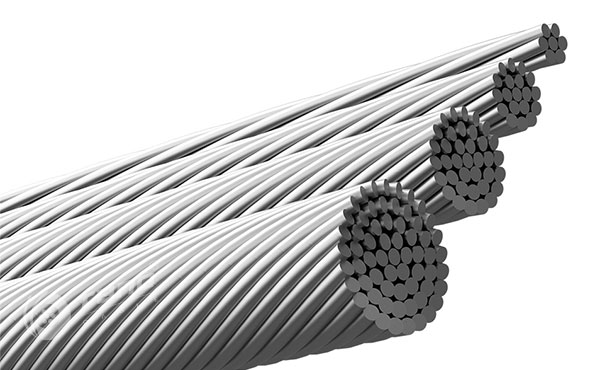

Hard drawn Aluminum wires, stranded in successive layers, in opposite direction to form the Aluminum stranded AAC conductor.
APPLICATION:
All Aluminium Conductors are used for aerial distribution lines having relatively short spans, aerial feeders and bus bars of substations.
STANDARD:

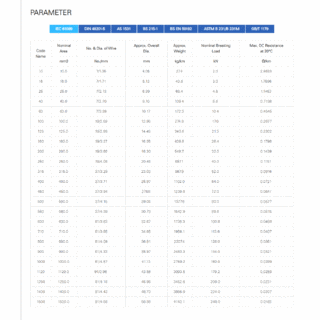

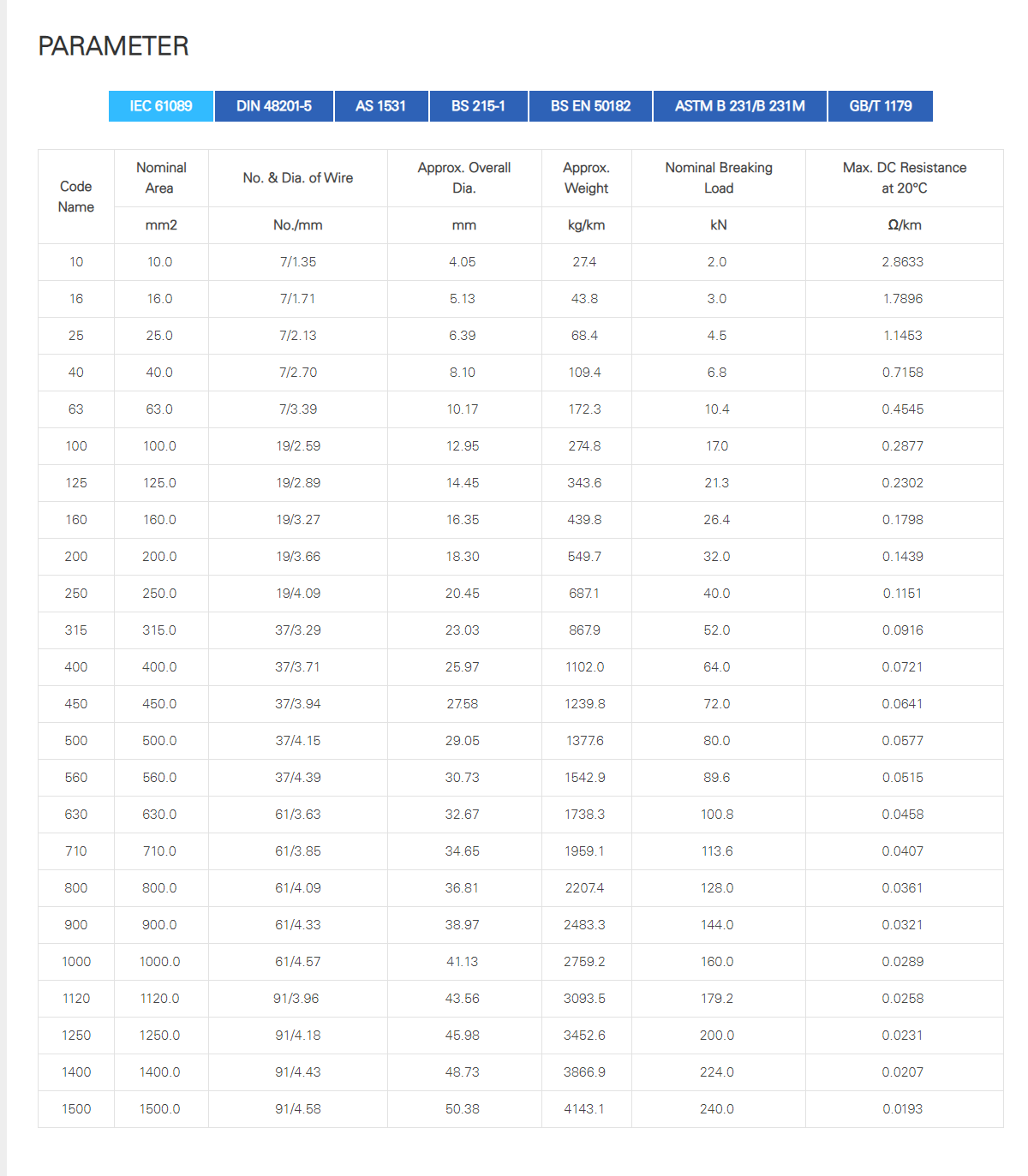

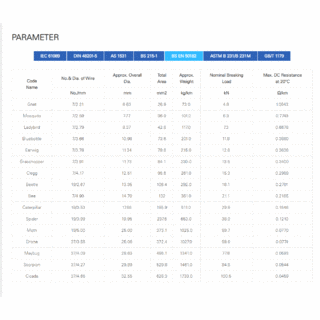

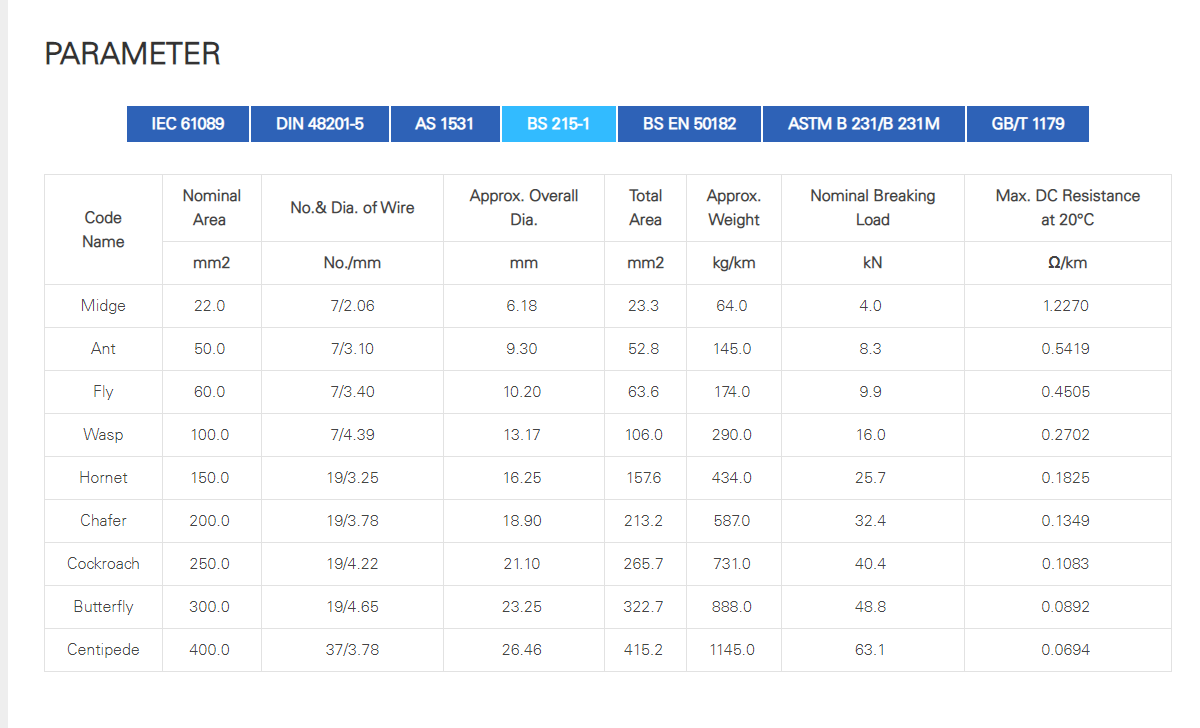

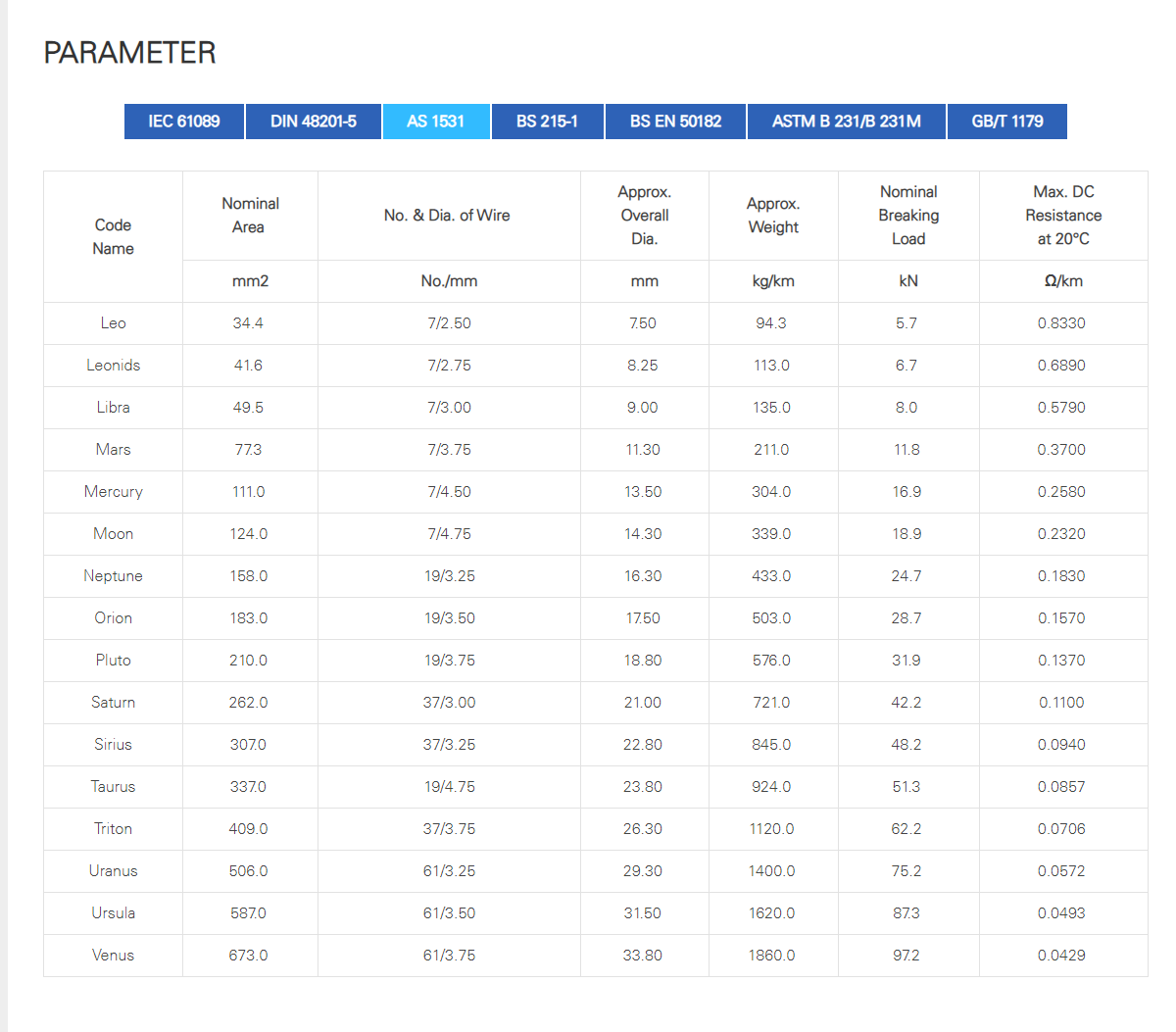

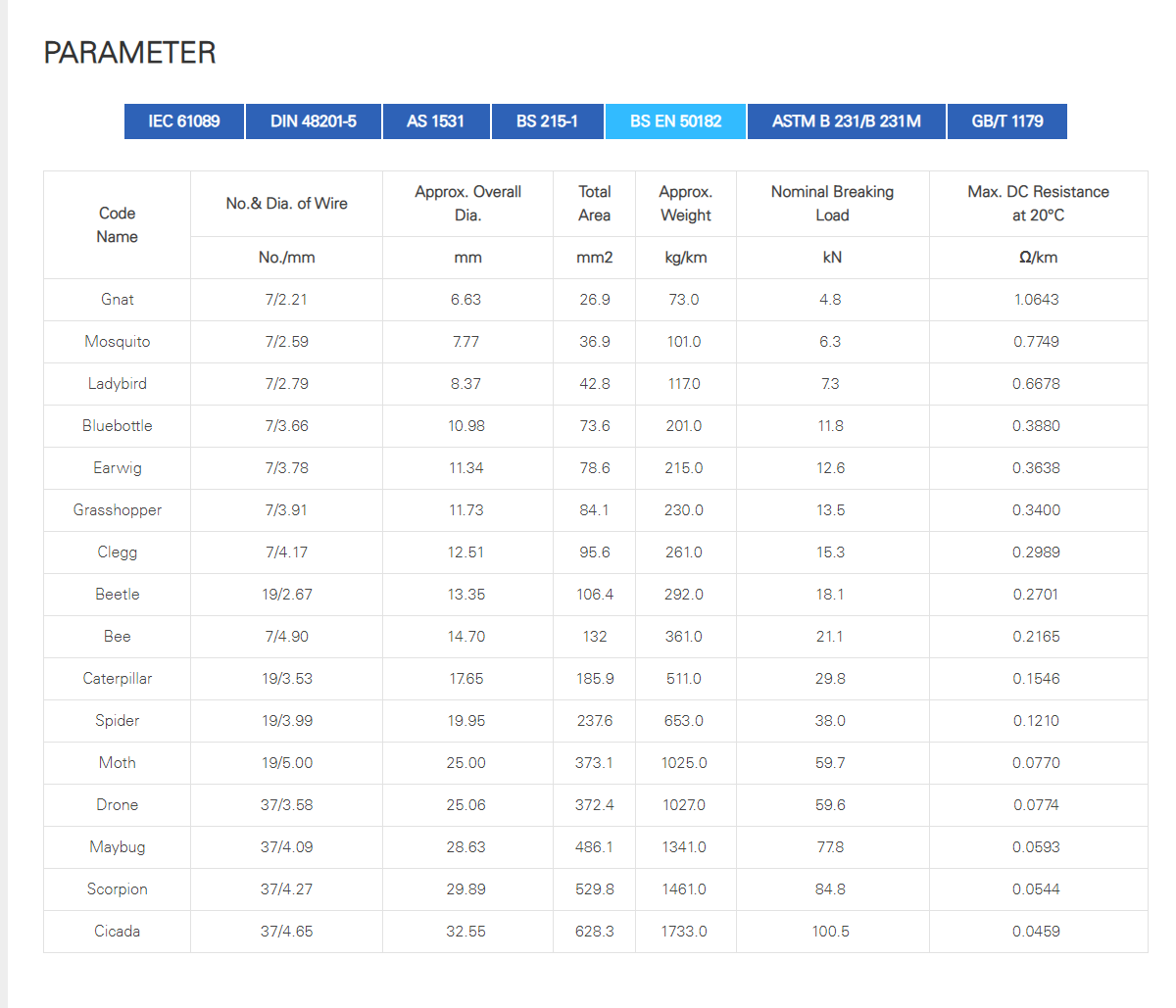

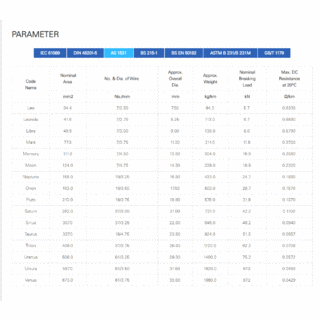

IEC 61089, DIN 48201-5, AS 1531, BS 215-1, BS EN 50182, ASTM B 231/B 231/M, GB/T 1179.

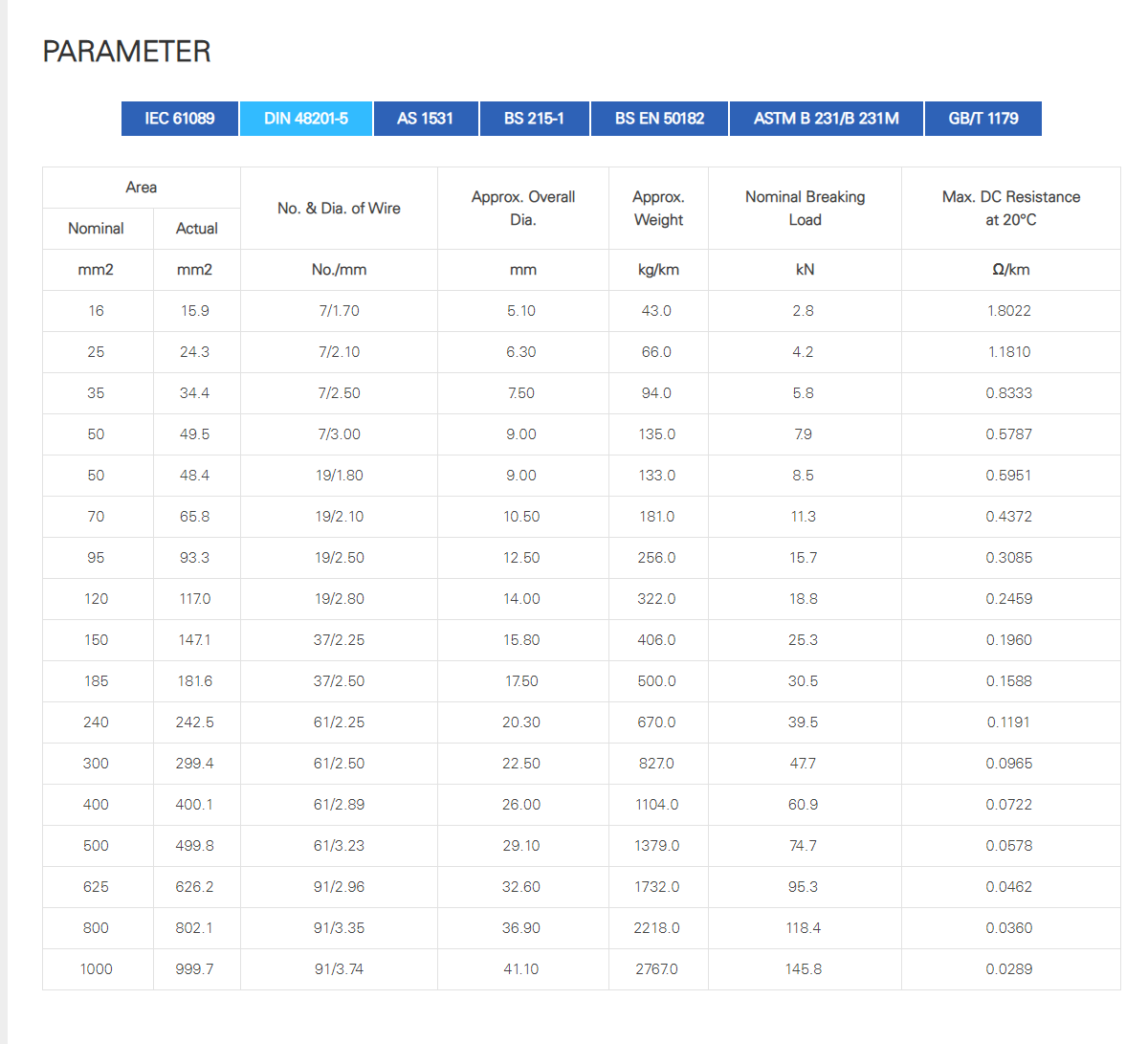

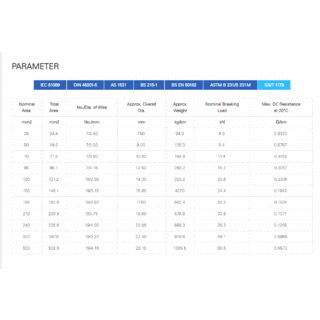

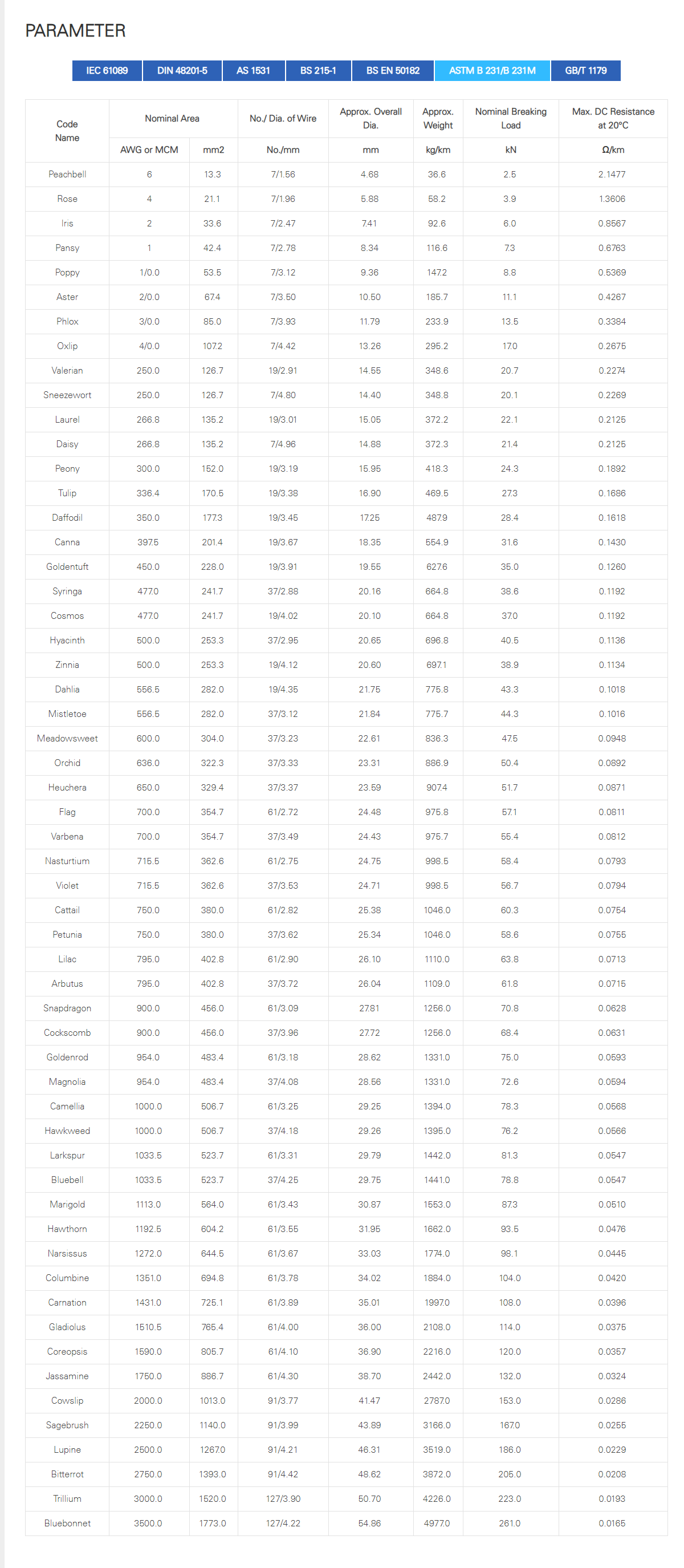

SPECIFICATIONS:
ELECTRICAL PERFORMANCE:
N/A
STANDARD:
IEC 61089, DIN 48201-5, AS 1531, BS 215-1, BS EN 50182, ASTM B 231/B 231/M, GB/T 1179.
APPLICATION:
DISTRIBUTION LINE
SUBSTATION
CORE IDENTIFICATION:
N/A
CHEMICAL PERFORMANCE:
N/A
MECHANICAL PERFORMANCE:
Refer to relative standards
FIRE PERFORMANCE:
N/A
THERMINAL PERFORMANCE:
N/A
OTHER PROPERTIES:
APPROVALS:
N/A
INSTALLATION CONDITIONS:
Open air
CABLE MARKING:
N/A
PACKAGING:
BY WOODEN OR STEEL-WOODEN OR FULL STEEL REEL/DRUM

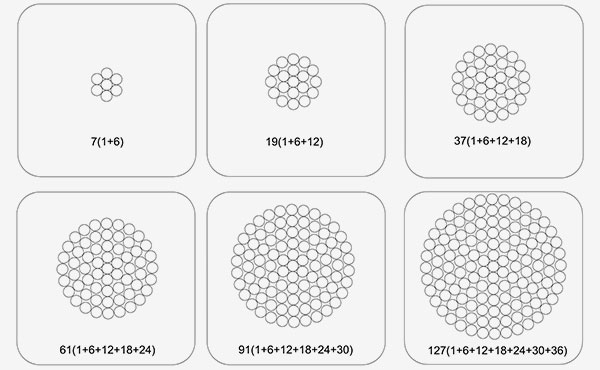

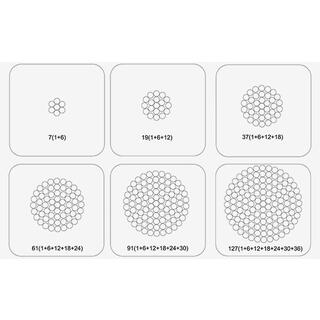

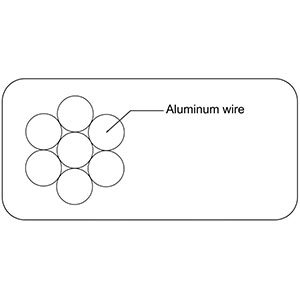

CONSTRUCTION:

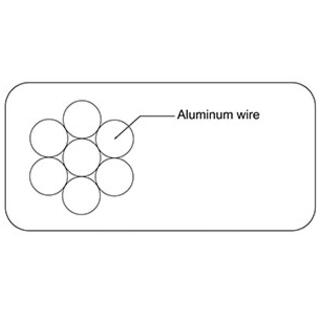

1. Conductor:
Hard drawn aluminum wire
- Country of origin
- China
