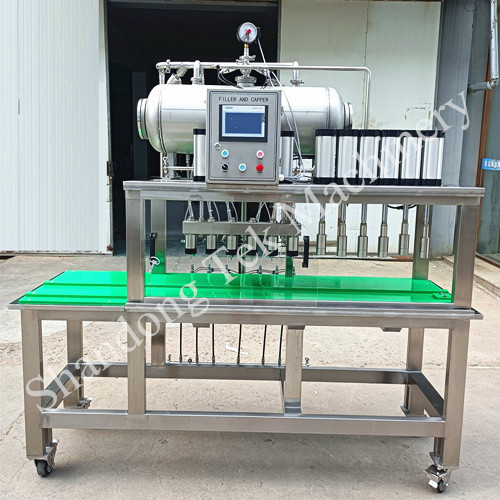

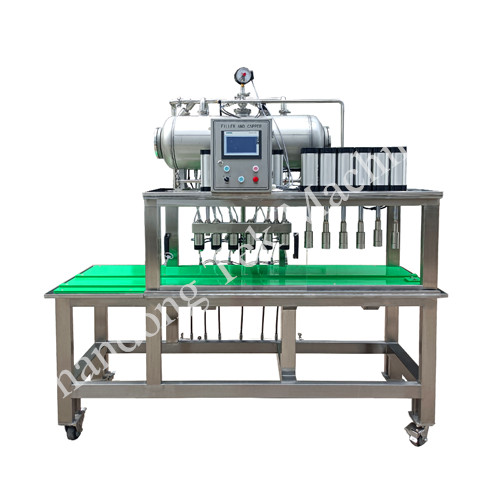

Isobaric Beer Bottle Filling Capping Machine
Specification:
Dimension: 2150*830*2200mm
Net Weight: 285Kg
Capacity: 200-300 Bottles/H
Applicable Bottles: 330ml-1L bottles
Working Stations: 6
Power Supply: AC 220V 50HZ/Customized
Function and Features:
1.Automatic control by PLC, all parameters can be adjusted.
2.Filling and capping process can be finished in this machine at one time.
3.With CO2 pressurization and could add vacuum.
4.Adopt isobar filling method and with unique pressure maintaining system, performance stable and reliable, beer loss minimum.
5.With pressure compensation, to guarantee a stable filling process.
Working process:
Fix the bottles-CO2 purge-Isobaric-Filling-Pressure stabilization-Pressure relief-Stop-
Move the bottles to the capping stations-Capping-Take the bottle.
- Brand
- Tekbrew
- Country of origin
- China
