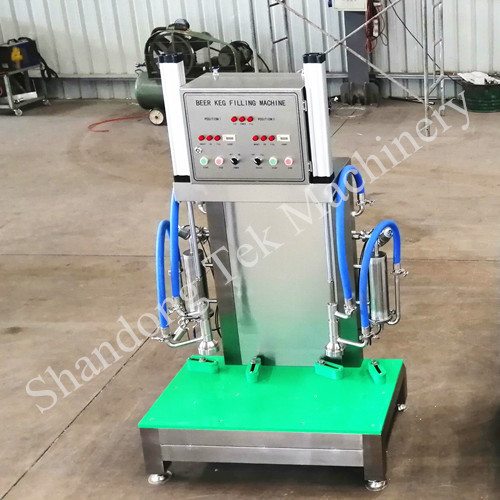

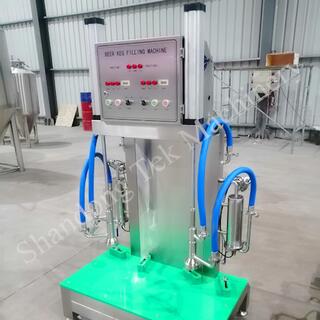

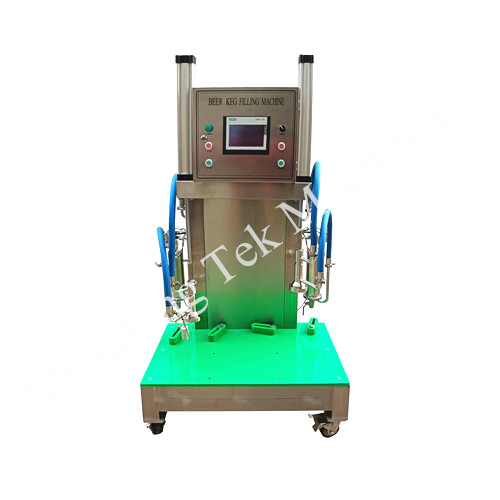

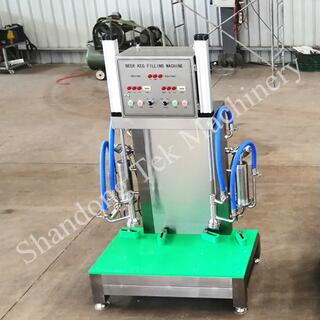

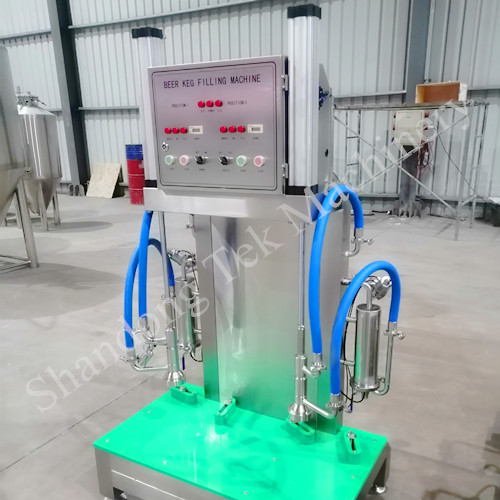

2 Heads Beer Barrel Filler
Specification:
Dimension: 1000*770*1800mm
Net Weight: 120KG
Power: 60W
Capacity: 60-80kegs/H
Filling Method: Keg Topside up
Applicable Kegs: Keg with Diameter 250-500mm, Height 360-600mm
Power Supply: AC 220V 50HZ Customized
Function and Features:
1. With flow meter, can control the filling amount precisely, not affected by the size of the keg
2. All procedures are thoroughly controlled by SIEMENS programmable controller
3. All parameters time values can be adjusted and shown through touch screen without stopping the machine
4. Germany import flow meter, accurate measurement, high precision
5. Two filling stations with separate control systems, can fill kegs with different volume separately
6. The LCD screen can display filling process synchronously, and also can count the quantity of kegs and the total filling volume
Working Process:
Fix the keg -Start-CO2 pressurization-Filling and counting-Stop- Take the keg
