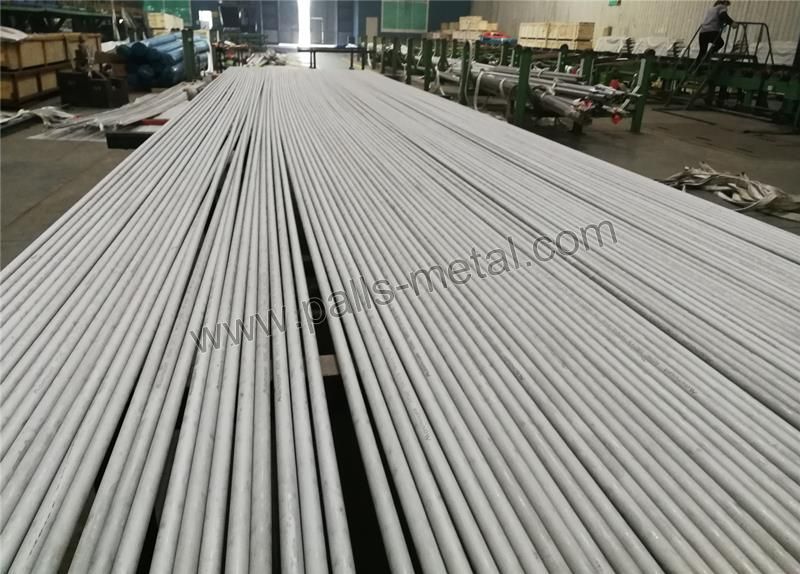

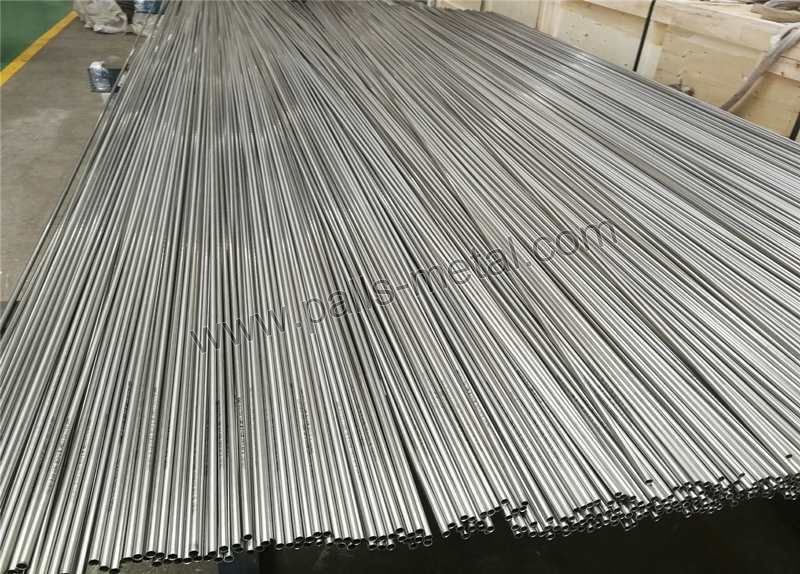

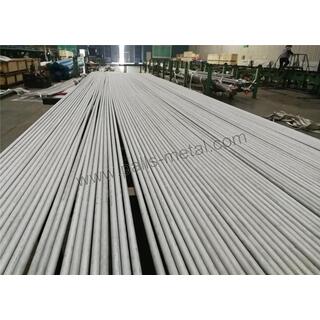

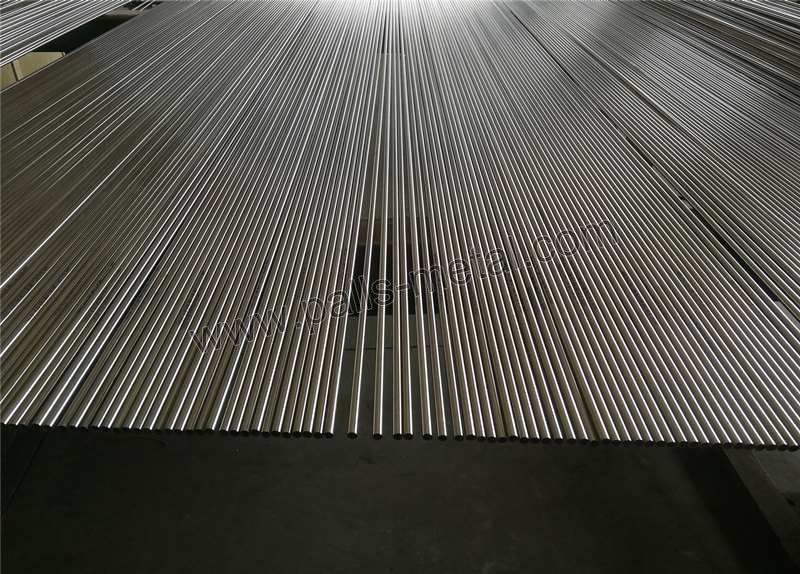

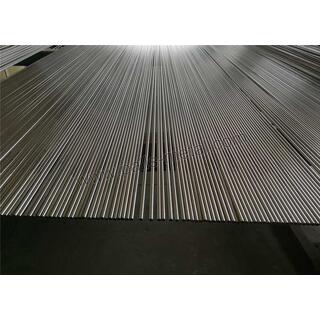

Duplex Stainless Steel Tube
Duplex Stainless Steel Pipe and Tube
Available Grade:
S31803, S32205, S32750, S31500
Size:
ASTM A790/A790M; ASME SA790/SA790M
OD 17.15～ 168.28mm
WT 1.65～2.11mm(Sch 5S)
WT 1.65～3.4mm(Sch 10S)
WT 2.31～7.11mm(Sch 40S)
WT 3.2～10.97mm(Sch 80S)
ASTM A789/A789M; ASME SA789/SA789M; GB/T 21833
OD 15.88～ 50.8mm
WT 0.89～4.0mm
Standard:
ASTM A790/A790M; ASME SA790/SA790M
ASTM A789/A789M; ASME SA789/SA789M; GB/T 21833
Application:
The Duplex material is a kind of ferrite-austenitic duplex stainless steel, which is integrated conducive properties both of ferrite and austenitic and provided with higher intensity as well as tenacity;
On the basis of high content of chrome and molybdenum, the duplex material is endowed with all sorts capability of corrosion;
The duplex material possess low heat expanding while its conductivity is higher than austenitic stainless steel;
The Duplex material owns good jointing property.
Exchangers and pipelines used in the equipment of petroleum production, processing and transportation/ Crude oil, natural gas and sea water desalination/ chemicals processing and transportation equipment/ chloride solution processing, treatment and transportation/ Chemical tankers, oil tankers and water processing pipelines.
- Country of origin
- China
