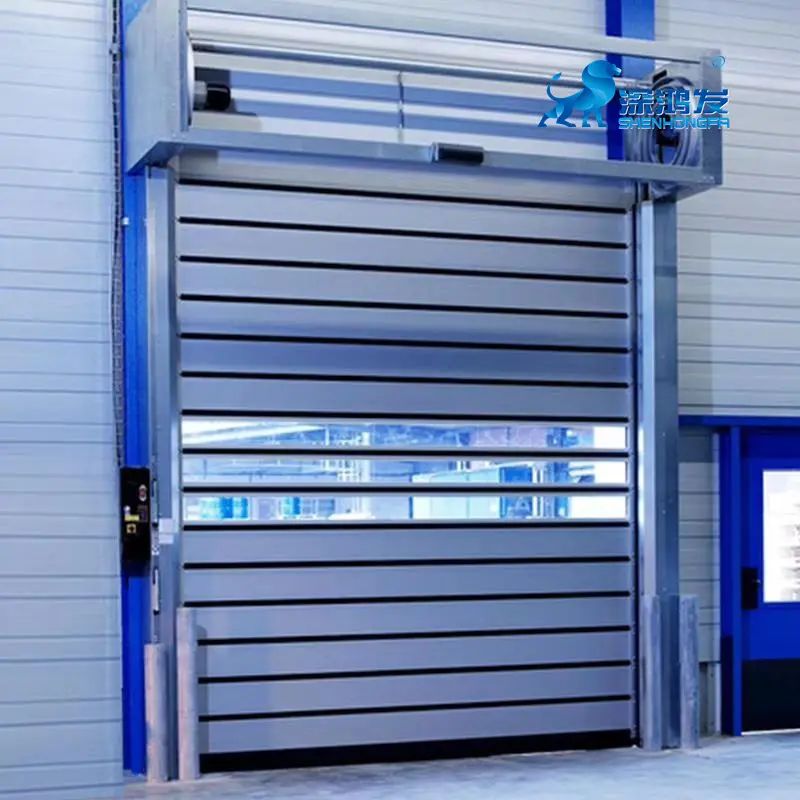

Auto Aluminum Alloy turbine High Speed Door
Product Attributes:
Model No.: HF-202212083
Brand: HONG FA, HOFIC
Applicable Industry: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food &Amp; Beverage Factory, Food Shop, Printing Shops, Construction Works, Energy &Amp; Mining, Food &Amp; Beverage Shops, Advertising Company
Out-Of-Warranty Service: Online Support
Where To Provide Local Services (In Which Countries Are There Overseas Service Outlets): Viet Nam, Philippines, Brazil, Malaysia
Showroom Location (In Which Countries Are There Sample Rooms Overseas): None, Ukraine, Canada, Turkey, United Kingdom, United States, Pakistan, Indonesia, Saudi Arabia, Peru, Brazil, Uzbekistan
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Old And New: New
Place Of Origin: China
Warranty Period: 1 Year
Material: Aluminum alloy T0.7MM Inside PU foam, Insulation Panel thickness 43MM
Lift Style: Vertical lift, 90° standard lift , turbo type, ellipse type
Safety Device: 1. Photocell Sensor (Korea Autonics) 2. Safety edge bottom (BUTTERFLY Pressure Wave Sensor
Color: grey, aluminum original color, Red, pearl white
Opening Speed: 1.2~1.5m/s ;
Closing Speed:: 0.6m/s, adjustable
Wind Strength:: 32m/s
Emergency Switch ;: Photocell
Servo Motor: 380v/ 14a/50Hz
Insulation Performance:: K≤1.5W/(M2K)
Packaging & Delivery:
Selling Units: Set/Sets
Single package size: 200cm*2cm*300cm
Single gross weight: 150kg
Package Type: wooden box or Plywood case
What are the advantages of hard fast doors?

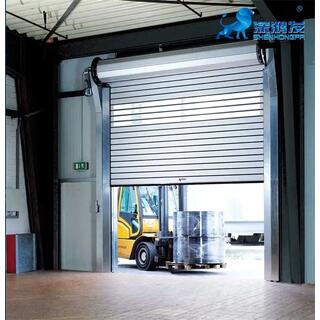

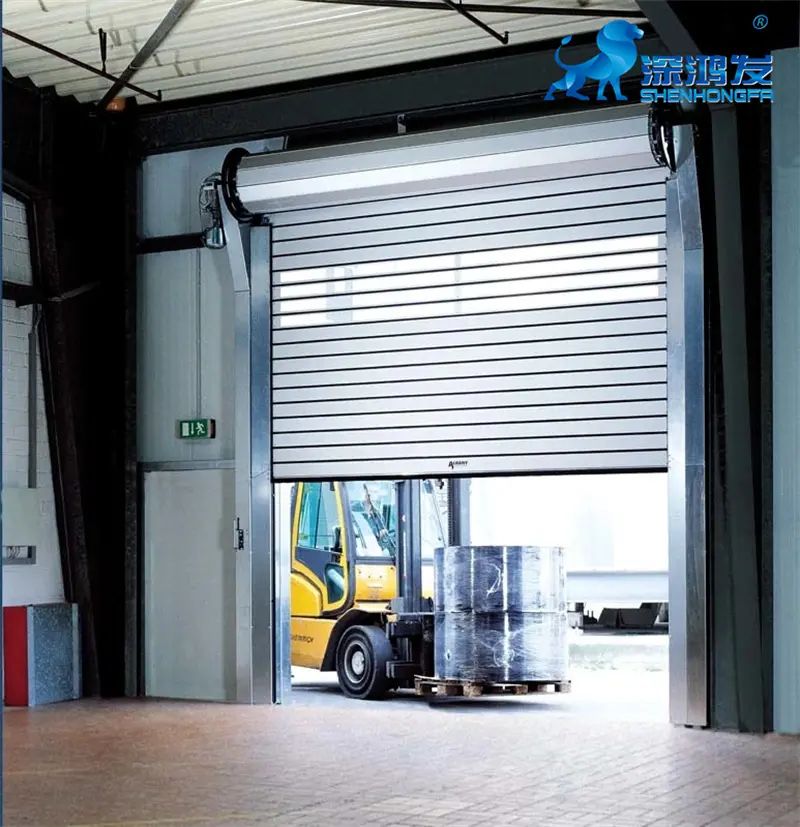

Compared with PVC High Speed Doors, aluminum high speed doors are widely used in factory outdoor doors, especially when trucks and forklifts frequently enter and exit the constant temperature workshop. The polyurethane foam used in the aluminum alloy interlayer of the Hard High Speed Door panel has good thermal insulation performance. At the same time, due to the huge overall quality of the door body, it can withstand huge wind pressure. The high performance hard high speed door has a wind resistance of 32m/s. That is 12 winds.
Technical Parameters:
Usage: Underground Garage channel used in various fields, chemical, pharmaceutical, automotive and food processing.
Door Size: Width: 1250-10000MM height:2000-8000MM
Wind Strength: Wind performance 3.5KPA reached 6GB, wind 12
Opening speed: 1-2.0m/s
Guide: Double spiral turbo aluminum rails, door rises when no contact between the door and the connecting member, no wear.
Door frame: Environmental quality CNC bending galvanized sheet molding thickness 3MM, external appearance and dustproof.
Door Material: 40MM aluminum door is not less than the thickness of the internal filling polyurethane insulation materials industry.

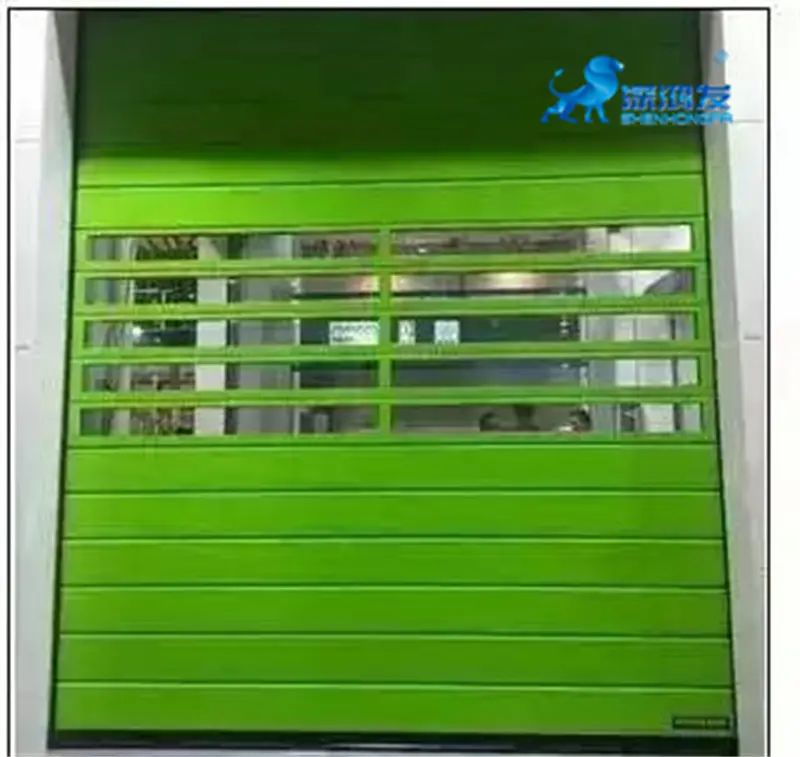

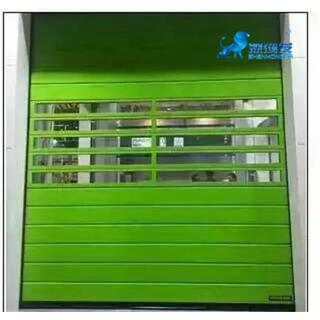

Perspective window: Aluminum frame with double polycarbonate plate, good transparency. High temperature anti-Joe injury. Height: around 180MM.
Safety devices: An infrared security electric eye: both sides of the door with a quick eye on the door beneath the radio when there is an obstacle protection door open. An object through the door will automatically return to the open position again to be timely closed below no obstacle when the door close.
Opening way: Radar, geomagnetic sensor, Bluetooth, remote sensing, hand switch
