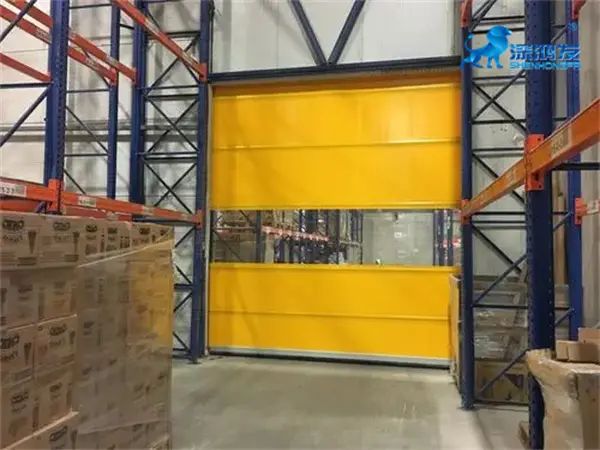

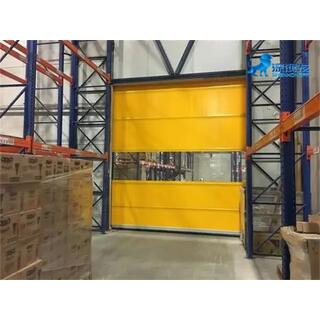

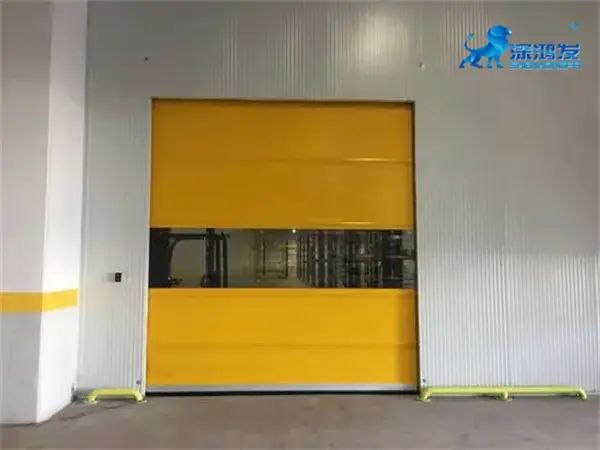

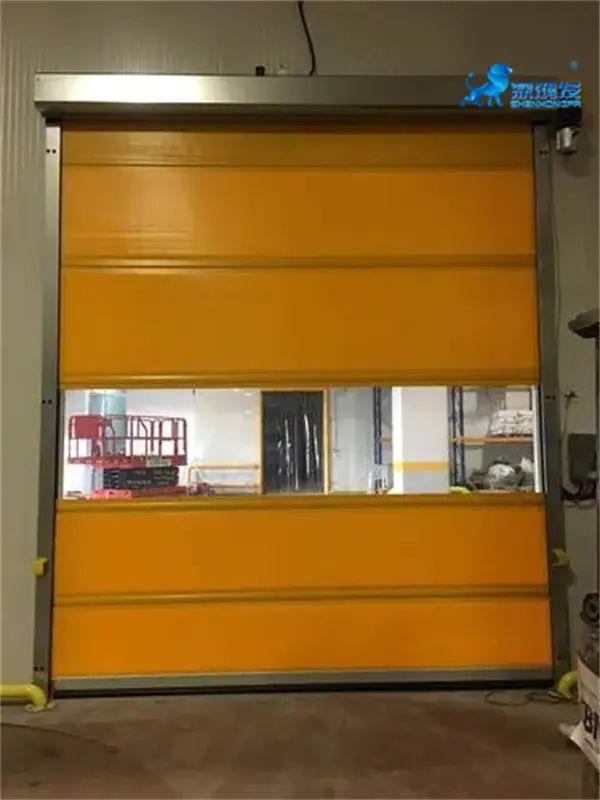

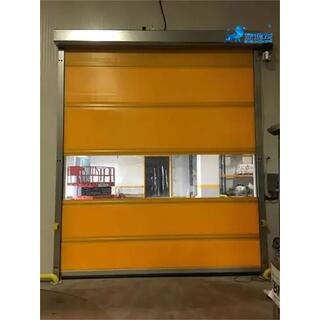

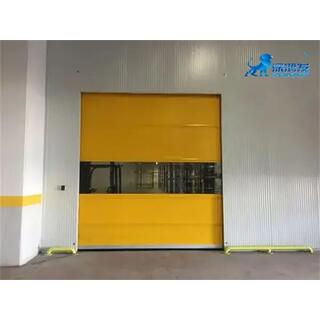

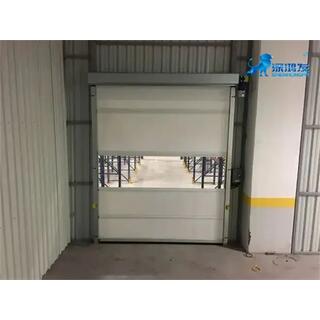

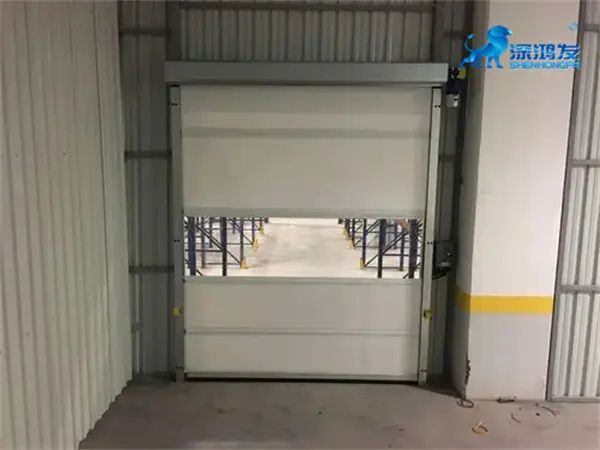

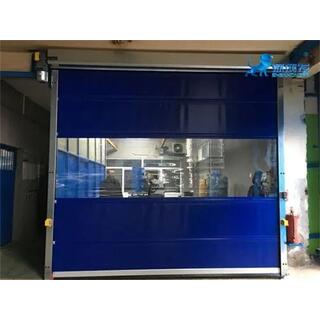

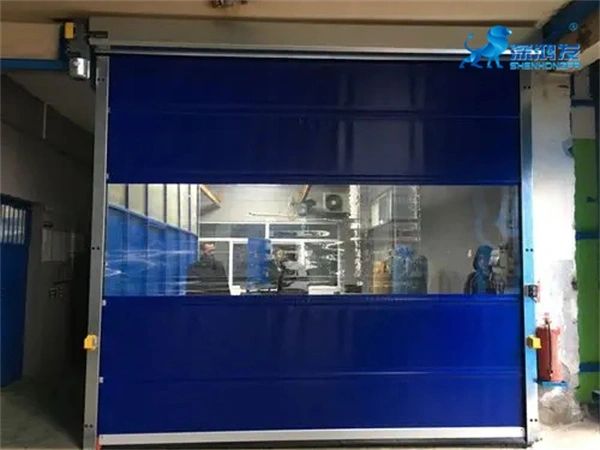

Air Shower PVC High Speed Rolling Door
Product Attributes:
Model No.: HF-202212023
Brand: HONG FA, HOFIC
Warranty Service: 1 Year
Open Method: Foldable, Automatic
Door Type: Polymer
After-Sales Service: Online Technical Support
Main Material: Pvc, Steel
Engineering Solution Capability: Graphic Design
Application Scenario: Villa, Hospital, Mall, Sports Venues, Supermarket, Warehouse, Workshop, Park, Farmhouse, Outdoor, Storage &Amp; Closet, Exterior
Design Style: Modern, Traditional, Industrial
Place Of Origin: China
Use Place: Industrial
Surface Processing: Finished
Variety: Garage Doors, Special Doors, Industrial Doors, Roller Shutter Door
Door Material: Aluminum Alloy, Plastic, Stainless Steel, French-made high -density industrial fabric
Control System: Japanese Mitsubishi Inverter, PLC and other components.
Dynamical Systems: Motor: SEW from Germany / SNMA Power: 0.75kw~2.2kw
Framework & Rolling Shaft: In 2mm thicknesses cold-roll steel sheets, or according to your order
Cross Bar: In aluminum lath
Curtain: made in high-density polyester fabric (Thickness: 0.8mm or 1.5mm)
Color: red, yellow, orange, blue, Grey etc.
Transparent Window: transparent pvc film imported from Japan, thickness:1.5mm
Command Systems: magnetic, radar sensor, pulling rope, remote control, pushbottom
Safe System: Photoelectric sensor, Safe edge bottom, Emergency stop protection
Packaging & Delivery:
Selling Units: Set/Sets
Single package size: 200cm*2cm*300cm
Single gross weight: 100kg
Package Type: wooden box or plywood case by sea

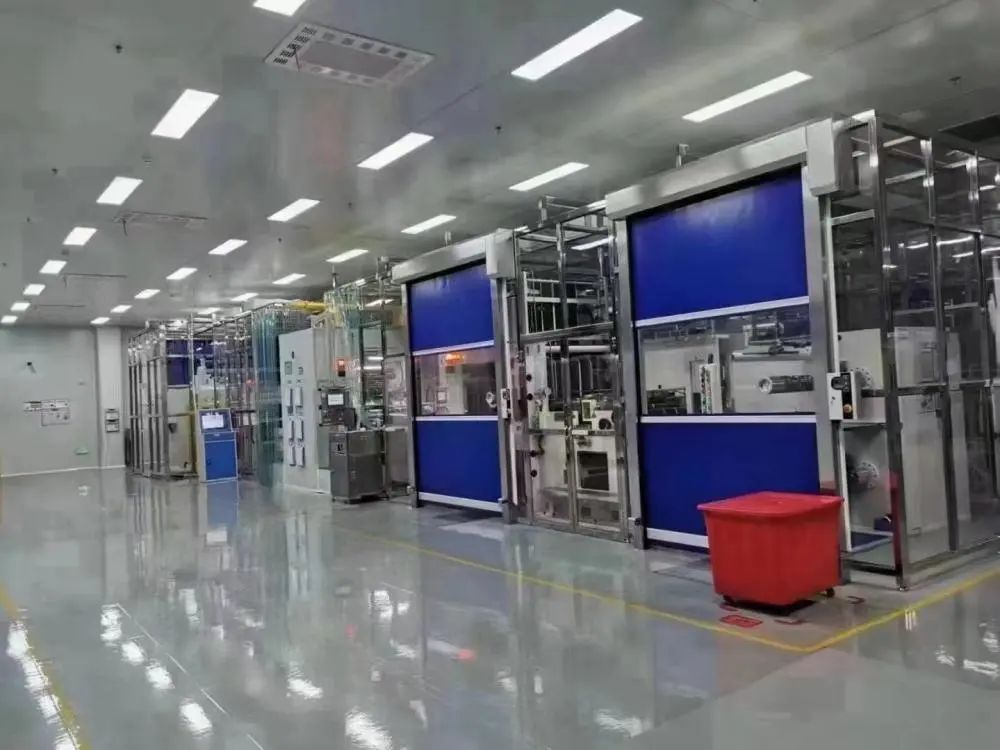

The role of the air shower:
In the clean area, under dynamic conditions, the biggest source of bacteria and dust is the operator. Before the operator enters the clean area, blowing the dust particles attached to the surface of the clothes with clean air can reduce the occurrence of pollution in a certain procedure. The air shower room is a necessary purification equipment for personnel to enter the clean room in the clean area. It has strong versatility and can be used with all clean areas and clean workshops. When the staff enters the workshop, they must pass this equipment and use strong and clean air. The rotatable nozzle is sprayed on the person from all directions, effectively and quickly removes the dust, hair, hair flakes and other debris attached to the clothes, which can reduce the pollution caused by people entering and leaving the clean area. The two doors of the air shower room are electronically interlocked, which can also function as an air lock, preventing external pollution and unpurified air from entering the clean area.
Technical Parameters:
Usage: Widely used in food chemistry textile electronics supermarket refrigeration logistics,warehousing and other places
door Size: Maximum size: W6000*H6000MM
Wind Strength: Wind resistance of up to 1176pa
Opening & close speed: 0.5-1.5m/s
Color curtains: Red Orange Yellow Green Blue Black Gray Transparent
Door frame: 1.5MM thick cold rolled steel or 1.5MM thick stainless steel
Perspective window: 1.2MM PVC transparent window
Drive system: 220V/380V 50HZ IP55 power 0.55KW-6.5KW
Door Control System: PLC converter, adjustable delay off, greatly improving the efficiency in the use and life of German goods into the encoder
Optional: Geomagnetism, radar, airbag, infrared, Remote Control or by hand switch
- Brand
- HONG FA, HOFIC
- Model
- HF-202212023
- Country of origin
- China
