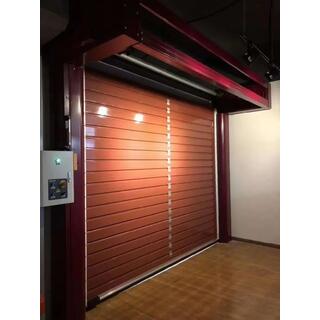

Aluminum Alloy High Speed Roller Shutter Door
Product Attributes:
Model No.: HF-202212061
Brand: Hofic
Warranty Service: 1 Year
Open Method: Rolling Pull, Rolling
Door Type: Polymer
After-Sales Service: Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection
Main Material: Steel
Engineering Solution Capability: Graphic Design, 3d Model Design
Application Scenario: Workshop, Office Building, Farmhouse, Courtyard, Hotel
Design Style: Modern
Place Of Origin: China
Use Place: Industrial
Surface Processing: Finished
Variety: Industrial Doors, Entry Doors, Interior Door
Door Material: Aluminum Alloy, Steel, Stainless Steel
Power Supply: 1-Phase 220V, or 3-Phase 380V
Aluminum Alloy Slats Thickness: 40mm
Max Dimension:: 8000mm wide*8000mm high
Power Supply:: 1-phase 220±10%V, 50/60HZ, or 3-phase 380V±10%V, 50/60HZ
Transport Package: Export Wooden Box
Steel Structure: Powder Coated Gi and Aluminum Alloy
Working Temperature: -35 to 65 Celsius Degree
Specification: Max size 6m*6m
Packaging & Delivery:
Selling Units: Set/Sets
Single package size: 200cm*2cm*300cm
Single gross weight: 100kg
Package Type: wooden box or plywood case by sea

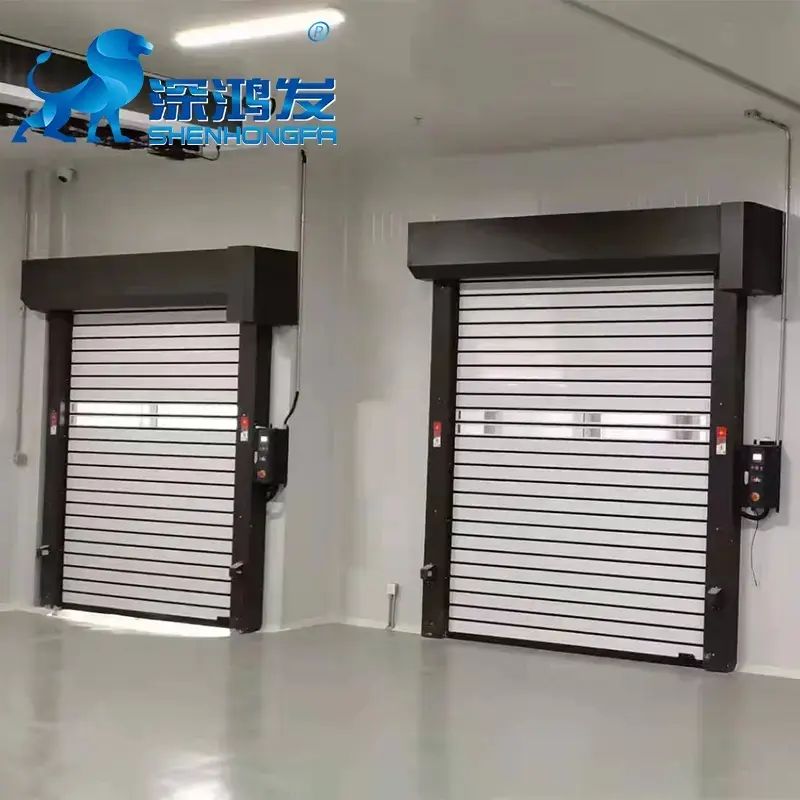

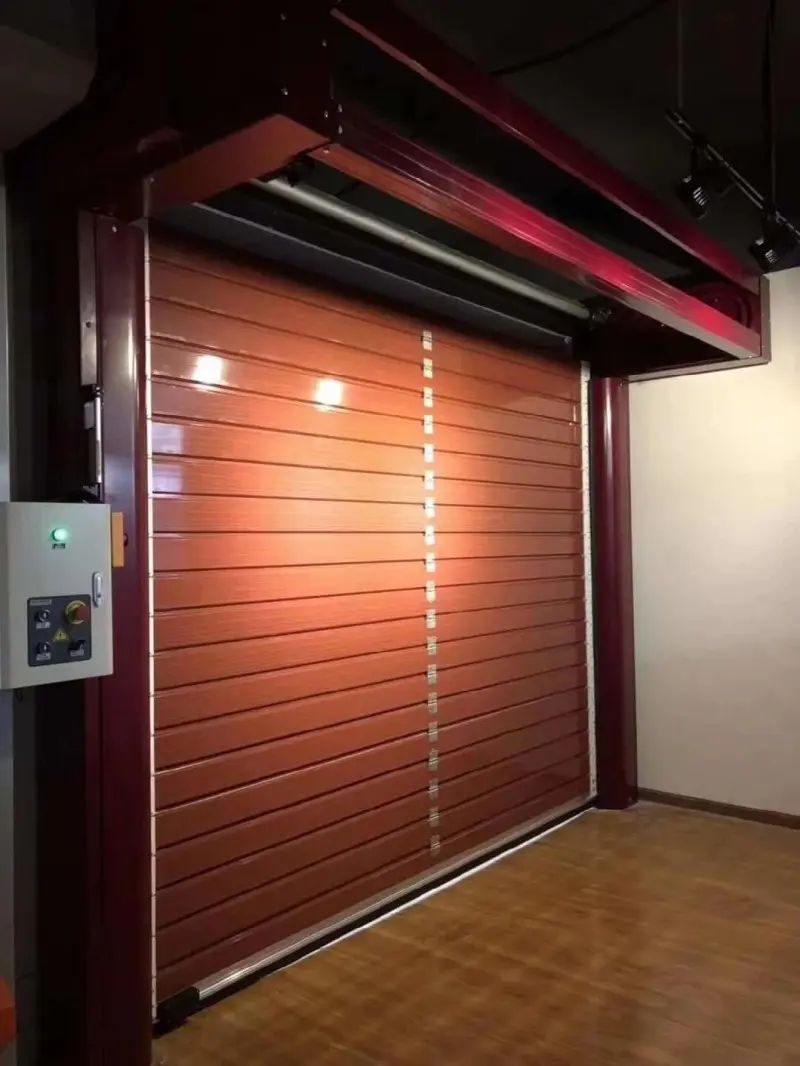

Aluminum Alloy Rapid Roller Door
It is fit for areas with high demand of both security, high-strength, thermal insulation and high running speed. Widely used in underground garages, factory exterior, warehouse exterior.
Technical Data:
Max dimension: 8000mm wide*8000mm high
Max opening Speed: 2.0m/s
Max closing speed: 1.0m/s
Wind resistance: Beaufort scale 12 (35m/s)
Power supply: 1-phase 220±10%V, 50/60HZ, or 3-phase 380V±10%V, 50/60HZ
Protection level of electric: IP55
Control system: Servo type
Driving system: servo motor
Thermal conductivity factor: 1.9W/(m 2 ·K)
K-VALUE 0.4W/M2K
Sound insulation factor: R=25dB
Available colors of slat: Grey, Blue, White, Aluminum, Golden
Features:
1. Burglarproof and excellent thermal insalation:
The aluminum alloy rapid door panel is made of a double-layered aluminum plate at a time, and the surface is fine pressed stripe, which is anodized and organic colored, and filled with intermediate polyurethane foam. The middle internal broken bridge design can increase the heat preservation effect, prevent the indoor and outdoor temperature loss, and save energy. The surface of the door panel is subjected to 5 layers of organic coloring treatment, which greatly improves the corrosion resistance.
2. Torsion spring balance system:
inbuilt into the side guide rails. It counteracts the door weight and prolongs working life of motor by reducing its load.

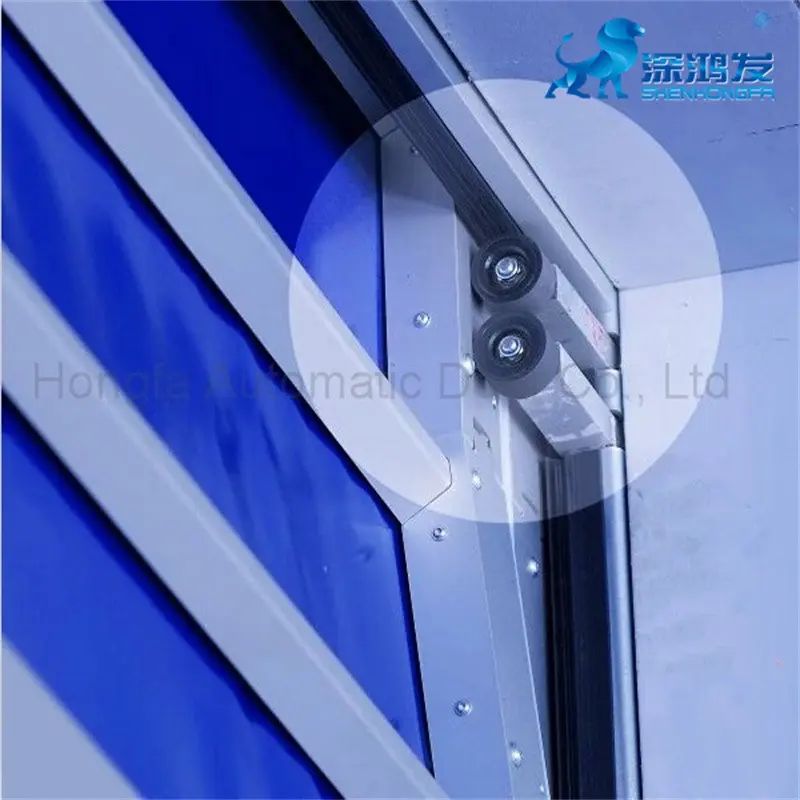

3. Special spiral Design.
Realize high speed door openig and clsoing with no freication, thus have long work life.
4. Emergency release device.
It can be easily opened by hand with this device, under emergency situations like power failure or electrical faults.
5. Great lighting performance.

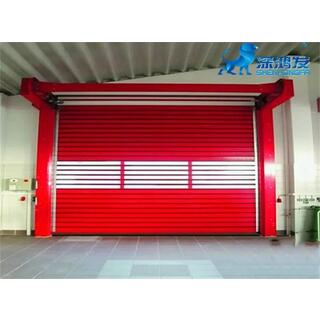

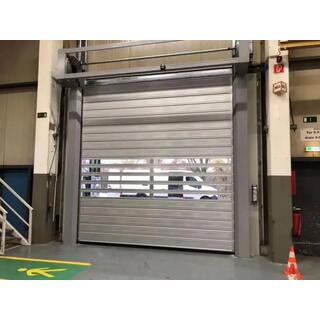

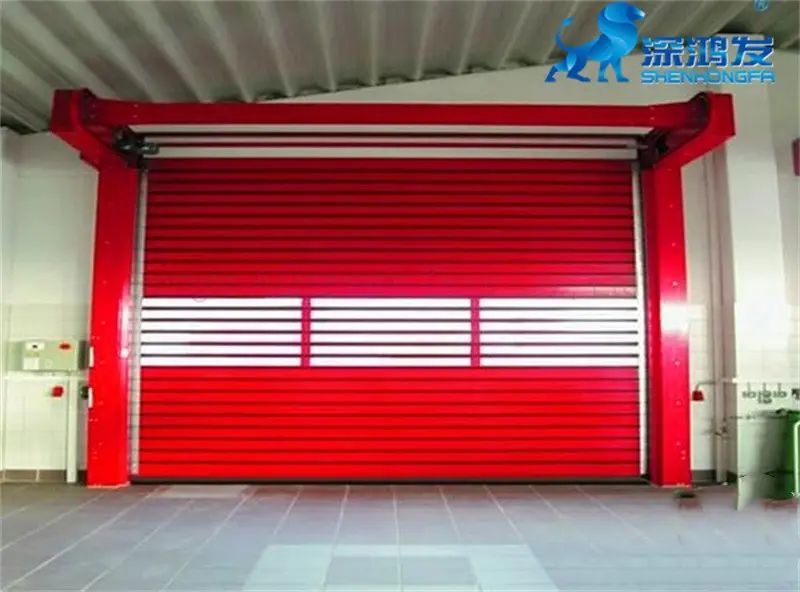

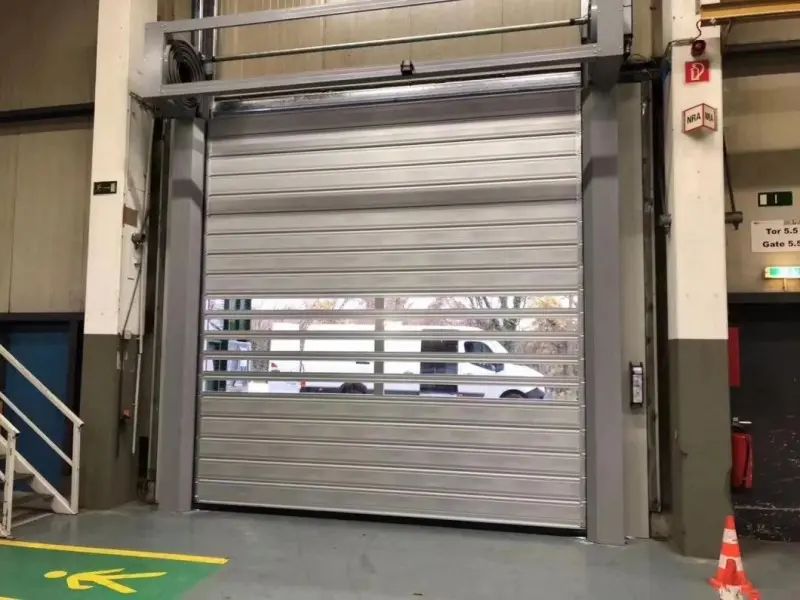

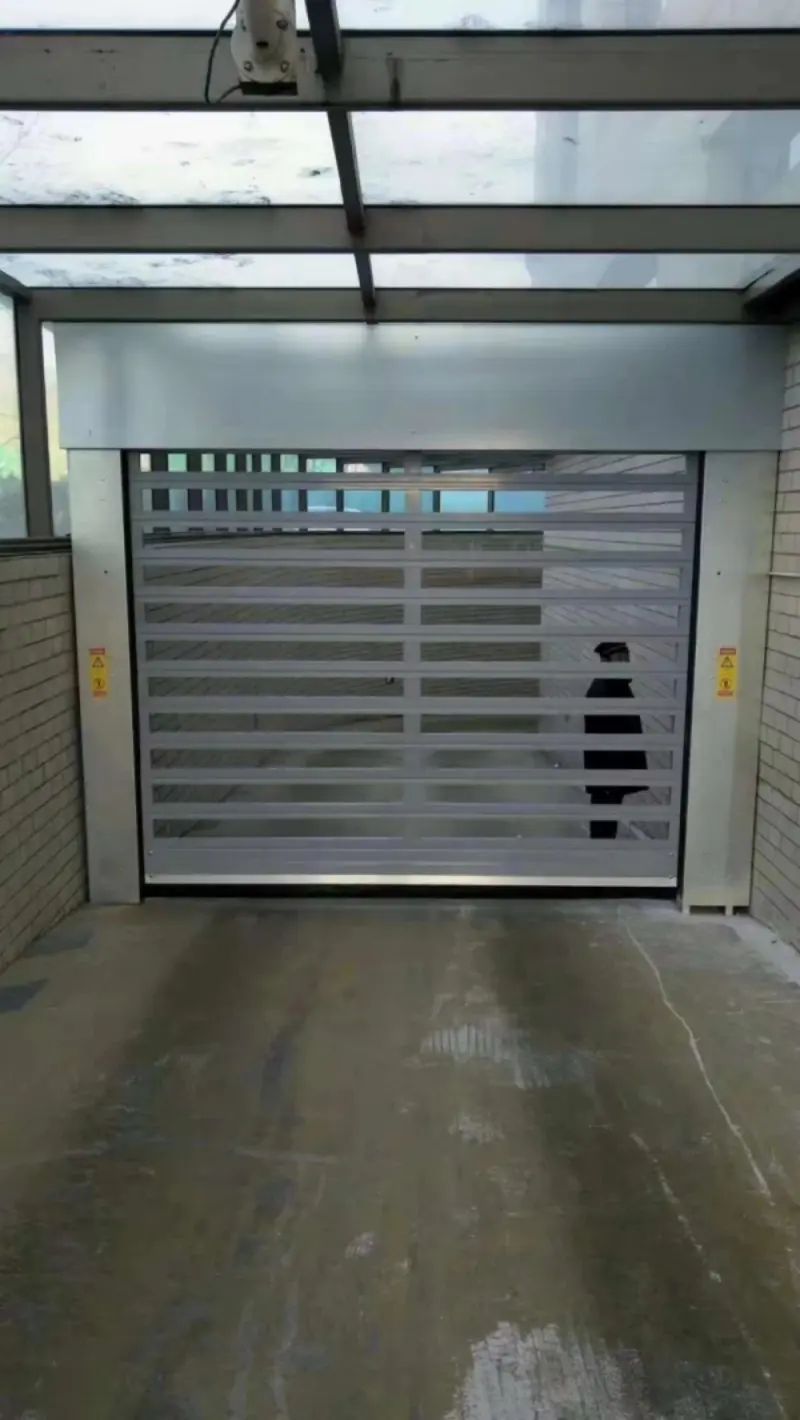

Normal slats with window Transparent slats
Driving System Features:
Stable and easy to do the wire connection.
The motor and control box are perfectly compatible, its a complete whole set with the advanced Italian servo technology.
This new integrated design, Improve the electromagnetic interference existing in the complex wiring of the original PLC+ inverter + encoder, avoiding the fault caused by the wiring and plug.
Soft open and close, make the door have great work life.
Easy to operate
The interface control panel will make the door more easy to adjust, it can realize all kinds of function by adjust it.
Excellent safety performance:
Bottom soft edge airbag sensor
Photo sensor
Alarm light
Different operation methods to meet different needs of the customer.
Export Packing stadard
1. Multi-layer plastic bubble film pack all the parts carefully.
2. Carton box to make all the little parts safe and clearly.
3. Put all the packaged parts into the Export wooden box, and seal the wooden box.
