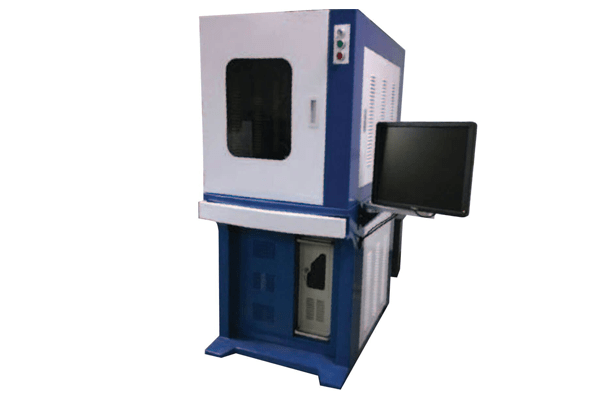

Cabinated TamLazer® - Laser Marking System

You can safely and quickly mark your different product groups with the Cabinated Tamlazer® that complies with European Norms, whose main components are CE certified, ergonomic, and in accordance with occupational safety standards. TamLazer® has the ability to encode barcode, datamatrix, QR code, logo, lot no, serial number and many other traceability information with its eco-friendly structure that does not harm the ecological balance.

Product Specifications

• It includes 30w-50w-70w-100w power options
• Dynamic and static coding
• Its maximum power consumption is between 100w and 600w
• Air-cooled
• Wavelength (1064 nm)
• 220 volts operating voltage
• Power range %10~100
• Less than 5% power stabilization over the long term
• Working ambient temperature is between 0°-40°
• Up to 100,000 hours of tube life
• Marking area is of 70 x 70 mm, 100 x 100 mm, 150 x 150 mm, 200 x 200 mm, 250 x 250 mm, 300 x 300 mm, 350 x 350 mm, and 400 x 400 mm
• Pulse-based operation mode
• Random polarization
• 0.95 mj is the maximum pulse energy
• Laser current switching on time 180 usec
• Laser current switching off time 180 usec

Brand

TamLazer®

Country of origin

Turkey
